21AE682L766 - Troy-Bilt Big Red Rear-Tine Tiller (2008) Handle Assembly Parts Diagram

Big Red Rear-Tine Tiller

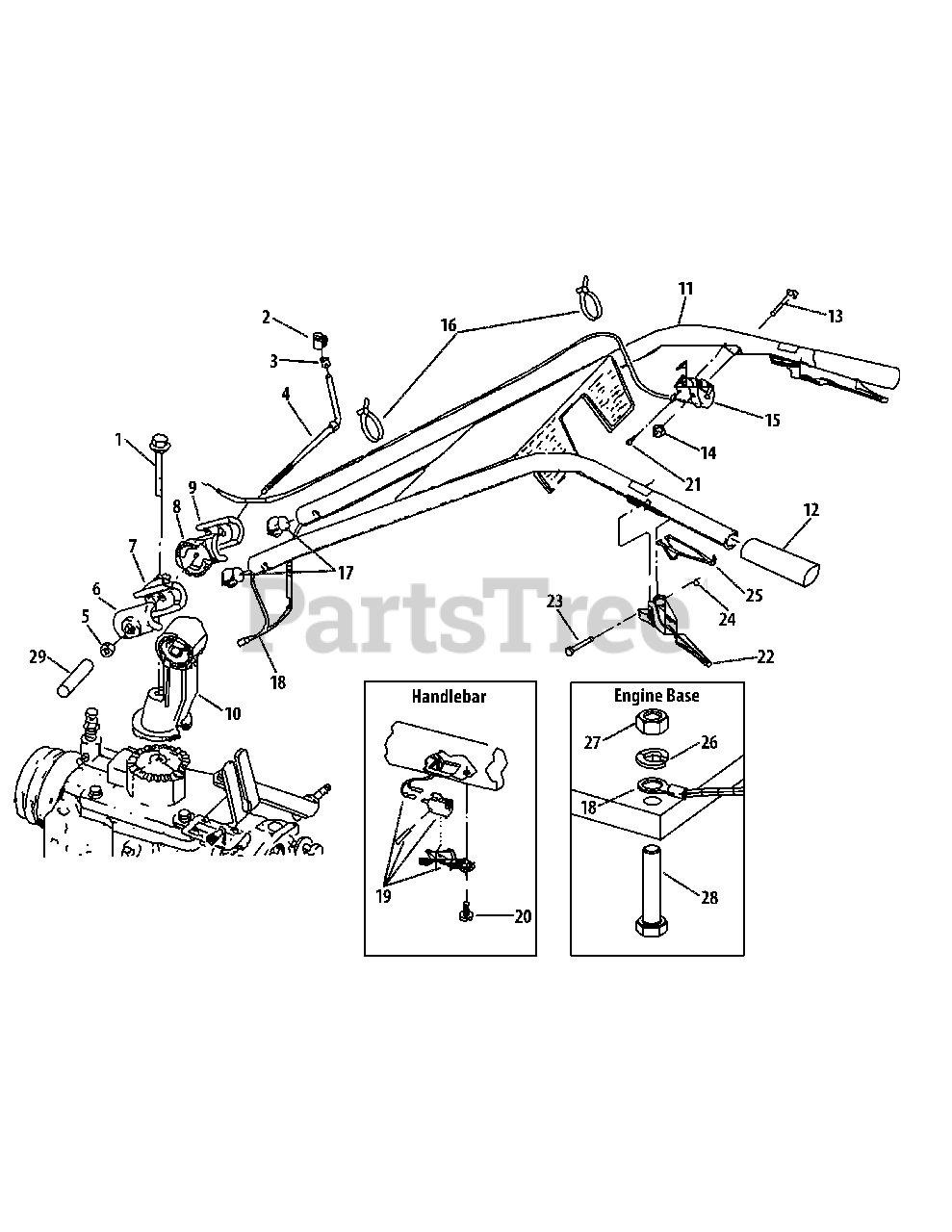

Handle Assembly Parts Diagram

  • Title

1

Troy-Bilt GW-9548

Hex Bolt, 1/2-13 x 3-1/2"

$14.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt GW-9119

Handlebar Height Adjustment Knob

$11.99

$

In Stock, Qty 8

0

3

Troy-Bilt GW-9120

Retaining Ring

$6.99

$

In Stock, only 1 left!

0

4

Troy-Bilt GW-2657

Handlebar Height Adjustment Stud
(Superseded to GW-1881)

$62.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 1186233

Hex Nut, 1/2"-13
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt GW-1021-1

Handlebar Hgt, Adj. Clamp (LT)
(Superseded to 1900854010)

$36.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt GW-2542-1

Handlebar Hgt. Adj. Ratchet (LT)
(Superseded to 1900856010)

$42.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt GW-2542-2

Handlebar Hgt. Adj. Ratchet (RT)
(Superseded to 1900857010)

$49.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 1901784

Handlebar Hgt. Adj. Clamp (RT)
(Superseded to 1900855010)

$38.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt GW-2534A

Handlebar Mounting Base
(Superseded to 1900858010)

$125.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 649-04020

Handlebars
(Superseded to 649-04020-0638)

Variations

Troy-Bilt 649-04020-0638

HANDLE ASM-HORSE - MTD/TROY-BILT RED (0638)

$255.99

$

Usually ships in 3-6 days

0

$255.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 720-04083

Handlebars Grip

$14.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 1918111

Curved Head Bolt, 1/4-20 x 2"

$7.49

$

In Stock, only 1 left!

0

14

Troy-Bilt 1186389

Hex Nut, 1/4"-20

$3.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 1909286

Throttle Control & Cable, 66"
(Superseded to 1909286P)

$73.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 725-0157

Plastic Tie

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt GW-9219

Wire Harness Retainer Plug

$10.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 725-04367

Handlebar Wire Harness Assembly

$60.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt GW-2563

Switch Assembly
(Superseded to 625-04097)

$72.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 710-0779A

Pan Head Screw, #10-16 x 1/2"

$4.49

$

In Stock, Qty 12

0

21

Troy-Bilt GW-9733

Phillips Head Screw, 10-32 x 1/2"
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

22

Troy-Bilt 786-04003

Operator Presence Control Lever
(Superseded to 786-04003-0638)

Variations

Troy-Bilt 786-04003-0638

OPC Lever - MTD/TROY-BILT RED (0638)

$28.99

$

In Stock, Qty 10

0

$28.99

$

In Stock, Qty 10

0

23

Troy-Bilt GW-9199

Pivot Pin

$6.49

$

In Stock, only 2 left!

0

24

Troy-Bilt GW-9514

Retaining Ring

$6.99

$

In Stock, only 2 left!

0

25

Troy-Bilt GW-9387

Return Spring
(Superseded to 732-04864A)

$6.99

$

In Stock, only 3 left!

0

26

Troy-Bilt 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 736-0119

Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 710-0805

Cap Screw, 5/16-18 x 1.5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 1901835

Plug Cap

$3.99

$

Usually ships in 3-6 days

0
