21AE682L766 - Troy-Bilt Big Red Rear-Tine Tiller (2008) Electric Start System Parts Diagram

Big Red Rear-Tine Tiller

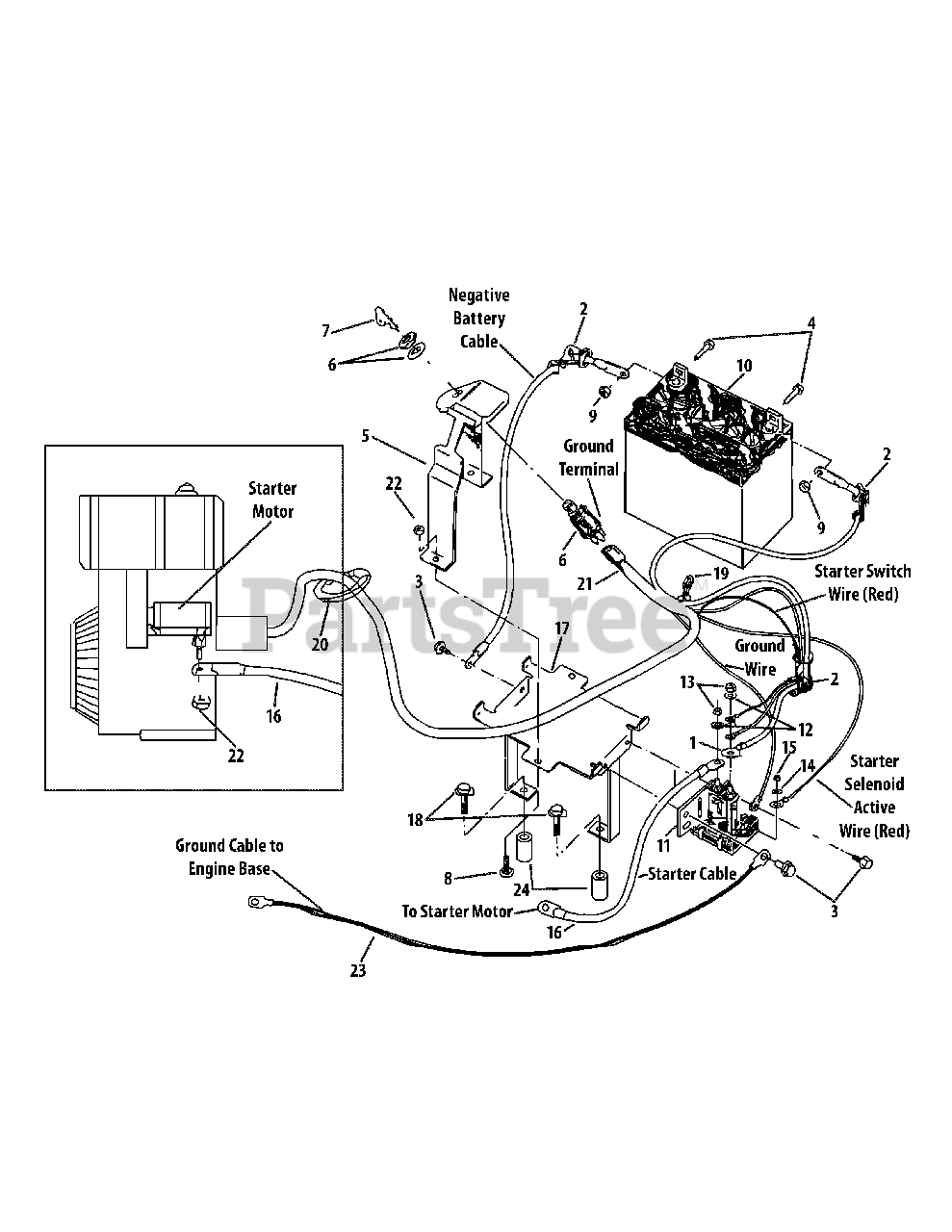

Electric Start System Parts Diagram

  • Title
1

Troy-Bilt GW-96515

Battery Cable

$15.99

$

In Stock, only 1 left!

0

2

Troy-Bilt GW-97020

Terminal Insulating Boot

$

$

Not available

3

Troy-Bilt 710-0599

TT-Screw, 1/4-2 x 1/2"

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 1186309

Hex Bolt, 1/4-20 x 5/8 "

$

$

Not available

5

Troy-Bilt GW-2614

Battery Hold-down Clamp w/ Att. Key Switch Plate
(Superseded to 686-05065)

$162.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 725-0267B

Key Switch
(Superseded to 925-0267B)

Note: (Incl. 2 Keys, Ref. 7)

$35.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

8

Troy-Bilt 1186073

Carriage Bolt, 1/4-20 x 1-1/4"

$2.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 712-3006

Hex Nut, 1/4"-20

$4.99

$

In Stock, Qty 17

0

10

Troy-Bilt 725-1706A

12-Volt Battery
(Superseded to 925-1707D)

$

$

Not available

11

Troy-Bilt GW-96514

Starter Solenoid
(Superseded to GW-96514099)

$48.99

$

In Stock, Qty 5

0

12

Troy-Bilt 736-0119

Lockwasher,5/16"
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 1186211

Hex Nut, 5/16 "-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 736-0147

External Tooth Lockwasher
(Superseded to 936-0147)

$3.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt GW-9853

Hex Nut, #10-32

$6.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt GW-96510

Solenoid Cable

$11.99

$

In Stock, only 1 left!

0

17

Troy-Bilt GW-2557

Battery Bracket
(Superseded to GW-2571)

$129.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 710-3022

HH Cap Screw, 3/8 -16 x 2.75"

$4.99

$

In Stock, Qty 7

0

19

Troy-Bilt GW-9265

Plastic Tie

$

$

Not available

20

Troy-Bilt 725-0157

Plastic Tie

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 725-04346

Wire Harness & Connecting Terminal Assembly

$54.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 1186389

Hex Locknut, 1/4"-20

$3.49

$

Usually ships in 3-6 days

0

23

Troy-Bilt 1901202

Ground Cable

$34.99

$

Usually ships in 3-6 days

0

24

$9.49

$

Usually ships in 3-6 days

0
