21AE682L766 - Troy-Bilt Big Red Rear-Tine Tiller (2008) Drive Lever & Yoke Assembly Parts Diagram

Big Red Rear-Tine Tiller

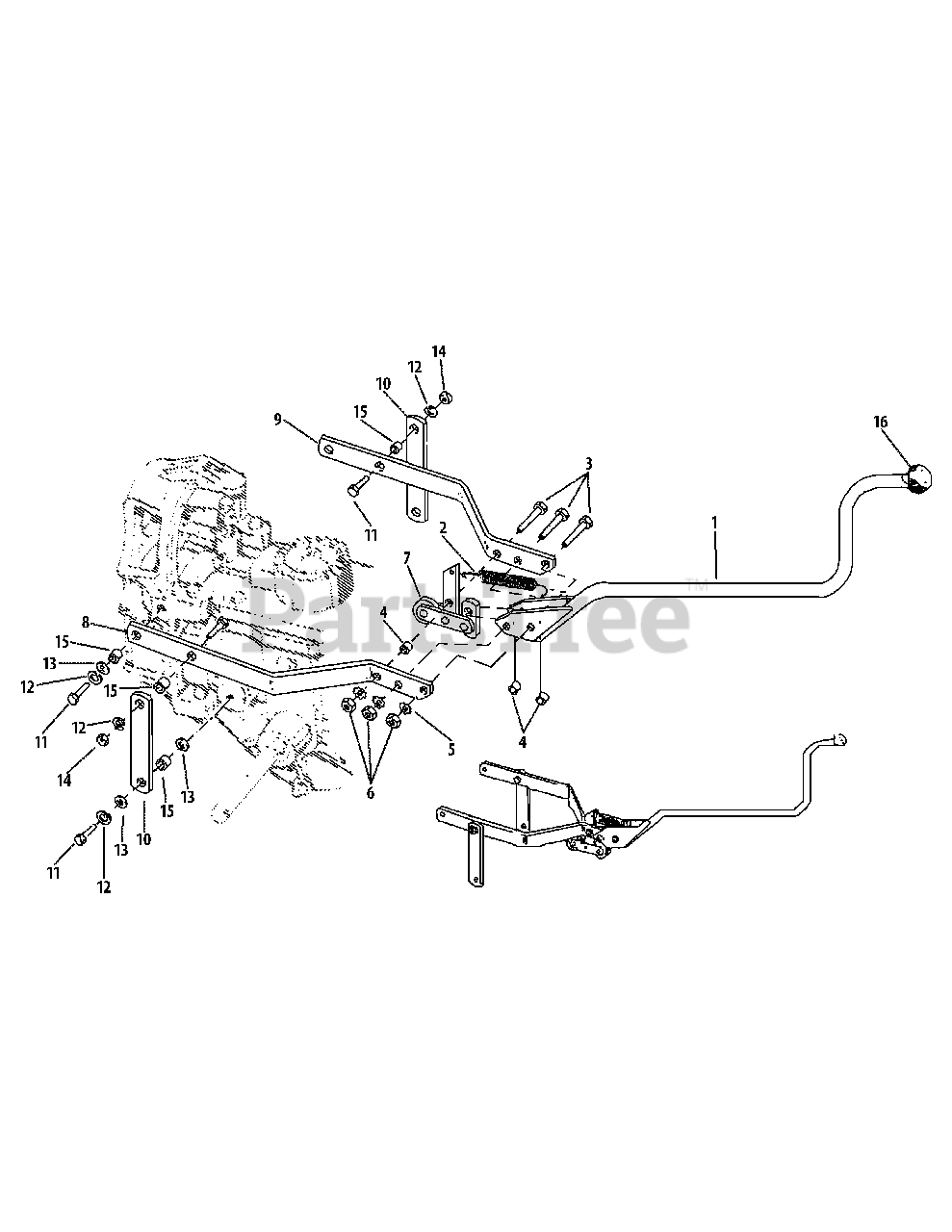

Drive Lever & Yoke Assembly Parts Diagram

  • Title

1

Troy-Bilt GW-2595

Forward/Reverse Lever
(Superseded to GW-2595099)

$17.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 1908156

Clutch Pawl Spring

$15.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0805

Hex Bolt, 5/16-18 x 1-1/2"
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

4

Troy-Bilt GW-2447

Bushing, 3/8 "

$6.99

$

In Stock, only 3 left!

0

5

Troy-Bilt 1177548

External Tooth Lockwasher, 5/16"
(Superseded to 736-0607)

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-3010

Hex Nut, 5/16"-18

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 686-04006

Roller Assembly

Variations

Troy-Bilt 686-04006-0638

Roller Assembly, Horse - MTD/TROY-BILT RED (0638)

$93.99

$

In Stock, only 1 left!

0

$93.99

$

In Stock, only 1 left!

0

8

Troy-Bilt GW-2165-1

Yoke (Left)
(Superseded to 1900468010)

$47.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt GW-2165-2

Yoke (Right)
(Superseded to 1900469010)

$42.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt GW-2164

Yoke Pivot Link, 6- / "
(Superseded to 1900860001)

$16.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 710-0514

Hex Bolt, 3/8 -16 x 1"

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 736-0169

Spring Lockwasher, 3/8 "

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 736-3050

Flat Washer, 3/8 "

$4.49

$

In Stock, Qty 16

0

14

Troy-Bilt 712-3017

Hex Nut, 3/8"-16

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt GW-1113-1

Bushing Spacer, 19/64"
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

16

Troy-Bilt GW-2595

Knob
(Superseded to GW-2595099)

$17.99

$

Usually ships in 3-6 days

0
