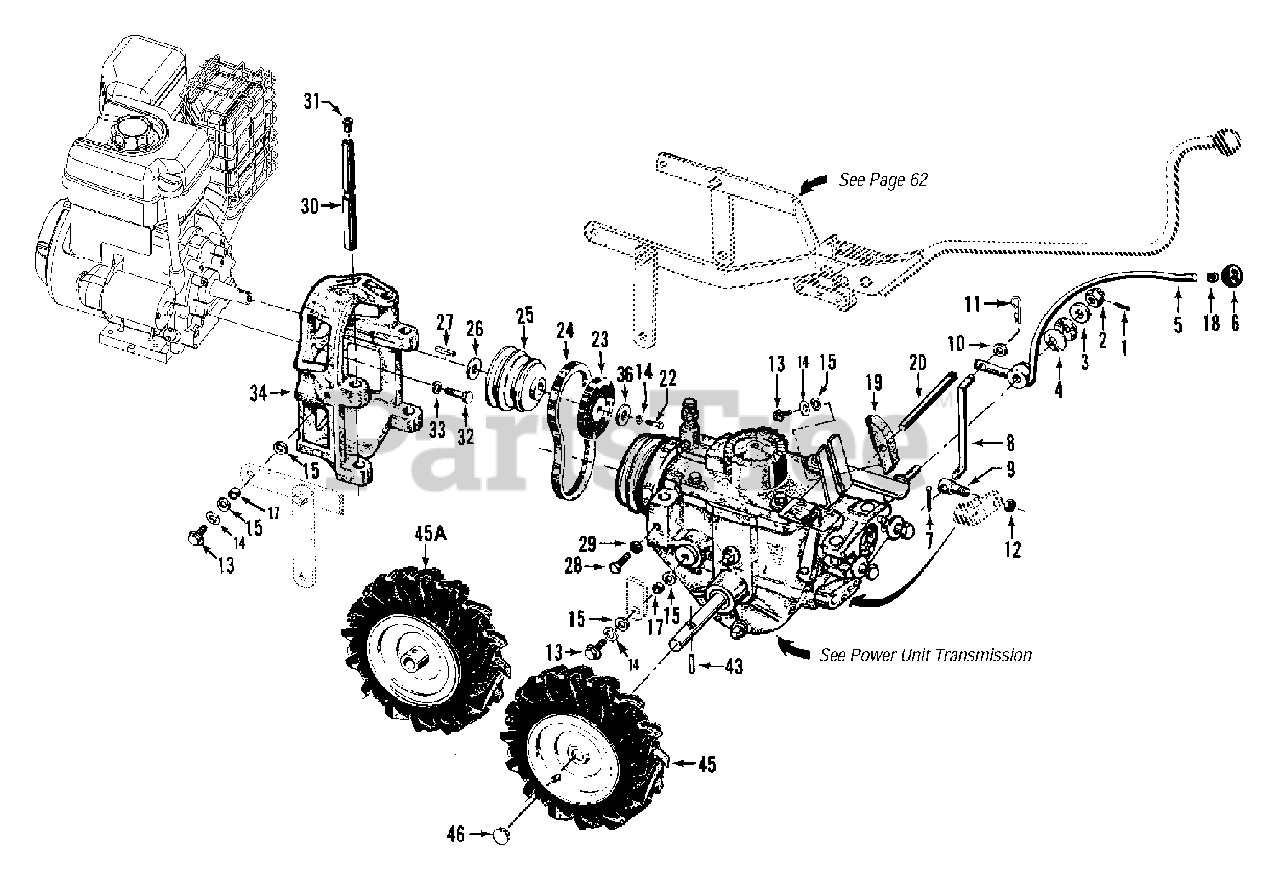

21AE682L766 - Troy-Bilt Big Red Rear-Tine Tiller (2004) Wheel Speed Lever, Belt Drive System, Engines, Wheels Parts Diagram

Big Red Rear-Tine Tiller

Wheel Speed Lever, Belt Drive System, Engines, Wheels Parts Diagram

  • Title

WHEEL SPEED LEVER

$

$

Not available

1

Troy-Bilt GW-9362

Pin-spring, 1/8"

$4.49

$

Usually ships in 3-6 days

0

2

Troy-Bilt GW-9838

Nut-castle (slotted), 1/2"-20

$

$

Not available

3

Troy-Bilt GW-9934

Washer-shoulder, 1/2"

$15.99

$

In Stock, only 1 left!

0

4

Troy-Bilt GW-9932

Washer-disc spring

$24.99

$

In Stock, only 3 left!

0

5

Troy-Bilt GW-2178

Lever-wheel speed shift
(Superseded to GW-2628)

$142.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1902240

Knob-wheel speed shift lever

$23.99

$

In Stock, only 2 left!

0

7

Troy-Bilt GW-9317

Pin-cotter, 3/32" x 1"

$3.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt GW-1515

Connecting rod, wheel speed -shift lever

Note: (Incl. Ref. 7 & Ref. 9)

$

$

Currently unavailable

9

Troy-Bilt GW-1033

Swivel-connecting rod

$15.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 736-0275

Washer-flat, 5/16", S.A.E.

$6.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt GW-9338

Pin-hair cotter
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0

12

Troy-Bilt 712-0158

Locknut-hex hd., 5/16"-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

13

Troy-Bilt 710-0514

Bolt-flanged hex hd., 3/8-16 x 1"

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 736-0169

Lockwasher-spring lock, 3/8"

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 736-3050

Washer-flat, 3/8", S.A.E.

$4.49

$

In Stock, Qty 16

0

17

Troy-Bilt GW-1113-1

Bushing-spacer, 19/64" (.300"lg.)
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

18

Troy-Bilt GW-9120

Ring-retaining (tolerance ring)

$6.99

$

In Stock, only 1 left!

0

BELT DRIVE SYSTEM

$

$

Not available

19

Troy-Bilt GW-2102

Block- belt adjustment, 3-7/8"
(Superseded to GW-2102A)

$49.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt GW-2100

Rod- belt adjust., 7" with measuring gauge

$12.99

$

In Stock, only 1 left!

0

21

MTD 777I20942

Decal- engine stabilization

$

$

Not available

22

Troy-Bilt 1100012

Bolt-hex hd., 3/8-24 x 1-1/2"
(Superseded to 710-0539)

$4.99

$

In Stock, Qty 11

0

23

Troy-Bilt GW-2111

Disc-reverse
(Superseded to 756-04171)

$67.99

$

In Stock, Qty 14

0

24

Troy-Bilt GW-9245

Belt-forward drive

Note: (No substitute due to extra strength required)

$23.99

$

In Stock, Qty 20+

0

25

Troy-Bilt GW-1483

Pulley-engine power take off
(Superseded to 619-04124)

$153.99

$

In Stock, only 2 left!

0

26

Troy-Bilt GW-1138-1

Shim-engine pulley, 1/16"
(Superseded to 736-04187)

$4.99

$

In Stock, Qty 20+

0

26

Troy-Bilt GW-1138-2

Shim-as above, 1/32"
(Superseded to 736-04192)

$6.99

$

In Stock, only 2 left!

0

27

Troy-Bilt GW-9303

Key-engine pulley, 3/16"sq. x 2-1/2"

$3.99

$

In Stock, Qty 10

0

ENGINES AND ENGINE MOUNT

$

$

Not available

28

Troy-Bilt 710-0376

Bolt-hex hd., 5/16-18 x 1", Grade 5

$3.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 712-3010

Nut, hex, 5/16-18

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt GW-1034

Bar-engine mounting
(Superseded to GW-1034A)

$46.99

$

In Stock, Qty 5

0

31

Troy-Bilt GW-9147

Plug-thread protector, red plastic

$8.49

$

In Stock, only 1 left!

0

32

Troy-Bilt GW-9572

Bolt-hex hd., 5/16-24 x 1-1/8"
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 16

0

33

Troy-Bilt 736-0119

Lockwasher-spring lock, 5/16"
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

34

Troy-Bilt GW-2553

Mount- engine to tiller
(Superseded to 719-04222-0637)

$312.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 736-3052

Washer, flat, .406 x 1.0 x .105

$4.49

$

In Stock, Qty 20+

0

MTD 777S30647

Decal-hot surface warning

$

$

Not available

WHEEL & TIRE ASSEMBLIES

$

$

Not available

43

Troy-Bilt 1915072

Pin- roll, 5/16" x 1-1/2"

$3.99

$

In Stock, only 1 left!

0

45

MTD 1915056

Wheel & Tire Assy

Note: Left-Hand bar tread, left side, 4:80 x 8" tubeless tire with valve stem, on one-piece steel wheel; For correct traction and directional control, Bar Tread Tires should be mounted on the tiller so the closed end of the "V" in the tire tread on top of the tire faces forward.

$

$

Not available

45A

MTD 1915057

Wheel & Tire Assy

Note: Right-Hand bar tread. Same as above but for right side of tiller; For correct traction and directional control, Bar Tread Tires should be mounted on the tiller so the closed end of the "V" in the tire tread on top of the tire faces forward.

$

$

Not available

46

Troy-Bilt 1902020

Cap-wheel hub

$

$

Not available

$

$

Not available
