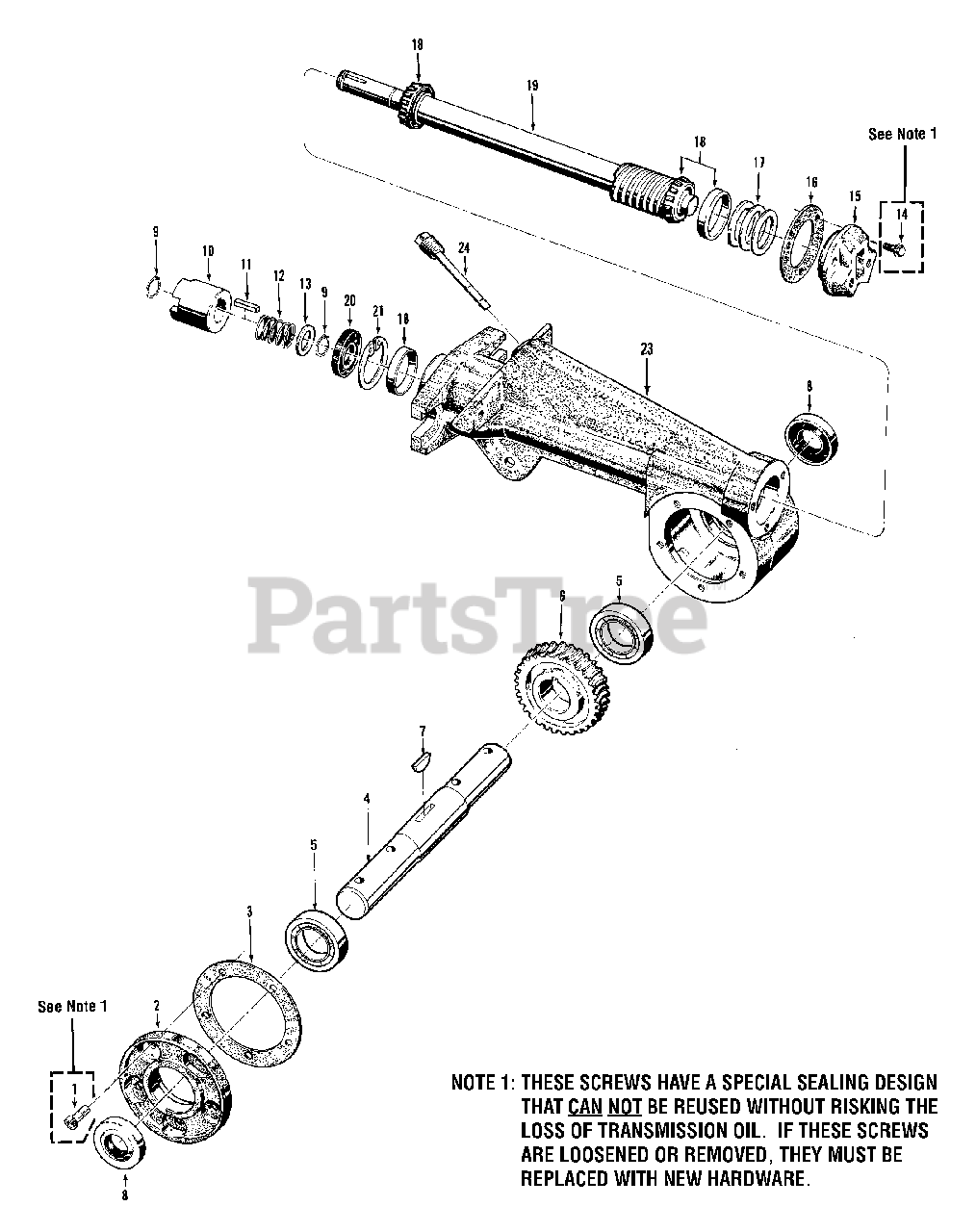

21AE682L063 - Troy-Bilt Rear-Tine Tiller (2002) Tiller Attachment Transmission Assemblies Parts Diagram

Rear-Tine Tiller

Tiller Attachment Transmission Assemblies Parts Diagram

  • Title

1

Troy-Bilt 1915068

Screw-self-sealing, 1/4"-20 x 5/8"

$4.49

$

In Stock, Qty 10

0

2

Troy-Bilt GW-20873

Cover-tiller housing

$108.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt GW-1129-1

Gasket-tiller housing cover, .010" thick
(Superseded to GW-1129-1099)

$8.99

$

In Stock, Qty 17

0

3

Troy-Bilt GW-1129-2

Gasket-same as above, .030" thick
(Superseded to GW-1129-2099)

$8.99

$

In Stock, only 3 left!

0

4

Troy-Bilt 1901972

Shaft-tiller tine
(Superseded to 911-04082)

$115.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 741-3037

Ball Bearing
(Superseded to 941-3037)

$41.99

$

In Stock, Qty 14

0

6

Troy-Bilt 1901976

Worm Gear-bronze, tiller tine shaft

$167.99

$

In Stock, only 1 left!

0

7

Troy-Bilt GW-1104

Key-tiller tine shaft, woodruff key

$9.49

$

In Stock, only 1 left!

0

8

Troy-Bilt GW-97073

Seal-oil, tiller tine shaft
(Superseded to 921-04035)

$11.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 716-0101

Retaining Ring-external

Note: TILLER DRIVE SHAFT ASSEMBLY

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1909138

Dog Clutch-tiller drive shaft
(Superseded to 718-04614)

Note: TILLER DRIVE SHAFT ASSEMBLY

$31.99

$

In Stock, only 1 left!

0

11

Troy-Bilt GW-9301

Key-3/16" x 1"

Note: TILLER DRIVE SHAFT ASSEMBLY

$3.99

$

In Stock, only 3 left!

0

12

Troy-Bilt GW-2127

Spring-dog clutch

Note: TILLER DRIVE SHAFT ASSEMBLY

$5.99

$

In Stock, Qty 13

0

13

Troy-Bilt GW-1138-1

Shim-dog clutch, 1/16"(.62") thick
(Superseded to 736-04187)

Note: TILLER DRIVE SHAFT ASSEMBLY

$4.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 1915069

Screw-self-sealing,1/4"-20 x 7/8"

Note: TILLER DRIVE SHAFT ASSEMBLY

$4.49

$

In Stock, only 3 left!

0

15

Troy-Bilt GW-1115

Cap-rear bearing
(Superseded to 718-04406)

Note: TILLER DRIVE SHAFT ASSEMBLY

$50.99

$

In Stock, Qty 5

0

16

Troy-Bilt GW-1124-2

Gasket-rear bearing cap
(Superseded to GW-1124-2099)

Note: TILLER DRIVE SHAFT ASSEMBLY

$4.99

$

In Stock, Qty 19

0

17

Troy-Bilt GW-1224-1

Shim-front bearing cap, .010" thick
(Superseded to 736-04308)

Note: TILLER DRIVE SHAFT ASSEMBLY

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt GW-1224-2

Shim-same as above, .030" thick
(Superseded to 736-04307)

Note: TILLER DRIVE SHAFT ASSEMBLY

$4.49

$

In Stock, only 3 left!

0

17

Troy-Bilt GW-1224-3

Shim-same as above, .005" thick
(Superseded to 736-04306)

Note: TILLER DRIVE SHAFT ASSEMBLY

$4.49

$

In Stock, Qty 6

0

17

Troy-Bilt GW-1224-4

Shim-same as above, .062" thick
(Superseded to 736-04305)

Note: TILLER DRIVE SHAFT ASSEMBLY

$3.99

$

In Stock, Qty 16

0

18

Troy-Bilt GW-1714

Bearing & Race
(Superseded to 941-0107)

Note: (Incl. one bearing GW-9400 and one cup (race) GW-9401);

$47.99

$

In Stock, Qty 18

0

19

Troy-Bilt GW-2653

Shaft-main tiller drive
(Superseded to GW-11602)

Note: TILLER DRIVE SHAFT ASSEMBLY

$302.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt GW-9617

Seal-oil, drive shaft, front
(Superseded to 921-04030)

Note: TILLER DRIVE SHAFT ASSEMBLY

$12.99

$

In Stock, Qty 20+

0

21

Troy-Bilt GW-9517

Retaining Ring-internal
(Superseded to 716-04102)

Note: TILLER DRIVE SHAFT ASSEMBLY

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 1902000

Housing-tiller attachment (Empty housing without shafts, gears, seals, dipstick, etc.)

Note: TRANSMISSION HOUSING AND DIPSTICK

$318.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 1909157

Dipstick-oil, tiller attachment

Note: TRANSMISSION HOUSING AND DIPSTICK

$18.99

$

In Stock, only 1 left!

0

Troy-Bilt 618-04003

Transmission-Tiller
(Superseded to 918-04003)

Note: (Includes Ref. 1-24); TRANSMISSION ASSEMBLY

$1501.99

$

Usually ships in 3-6 days

0

$

$
