21AE682L063 - Troy-Bilt Rear-Tine Tiller (2002) Bolo Tine Assemblies Parts Diagram

Rear-Tine Tiller

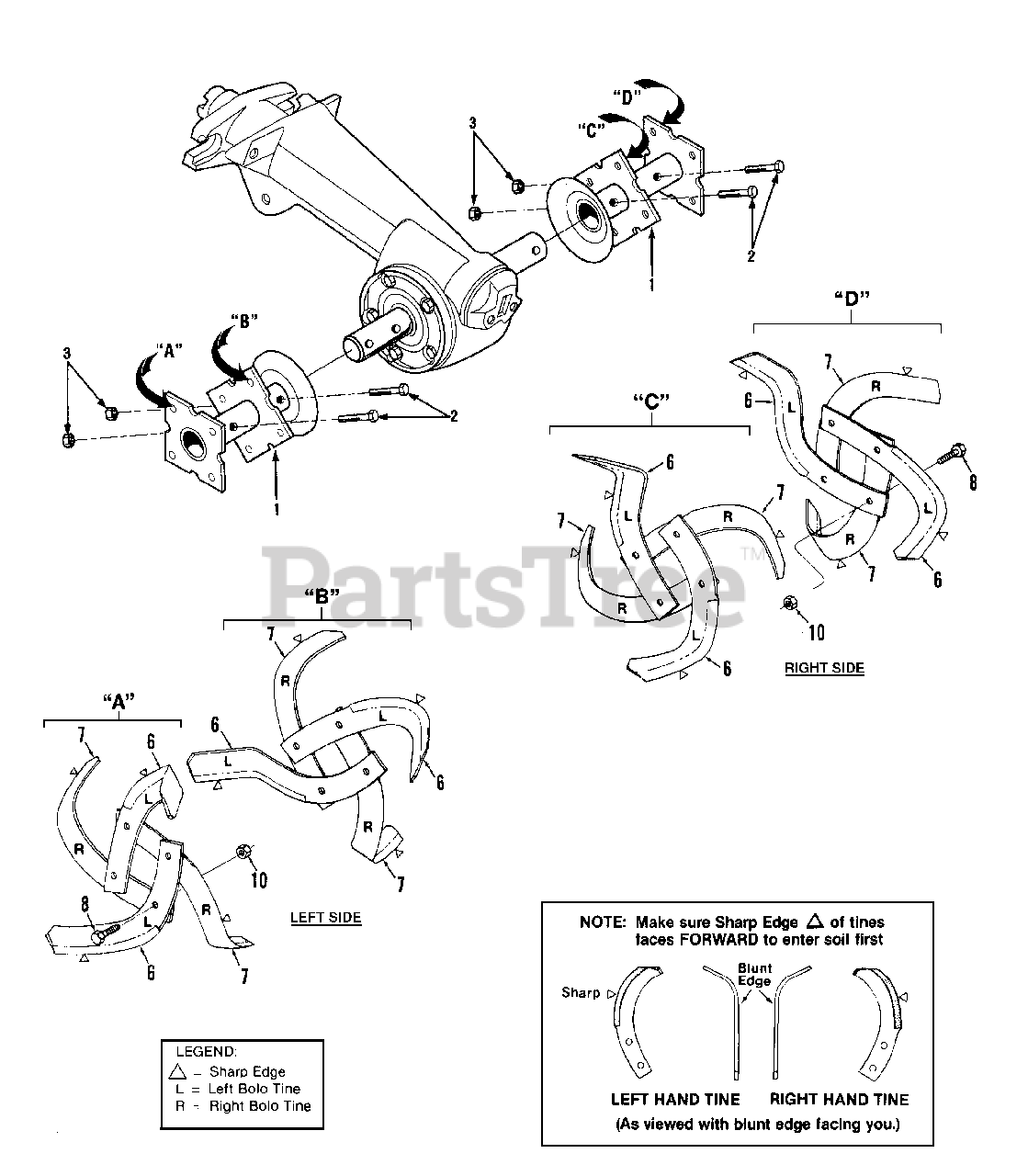

Bolo Tine Assemblies Parts Diagram

  • Title

1

Troy-Bilt 1901975001

Tine Holder-welded steel, fits left or right sides
(Superseded to 686-04068-0637)

Note: STANDARD TILLING TINES

$107.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 1982612

Bolt-hex hd., 3/8-16 x 2"
(Superseded to 710-3096)

Note: STANDARD TILLING TINES

$7.99

$

Usually ships in 3-6 days

0

3

UNKNOWN

$

$

Not available

6

Troy-Bilt GW-1270-1A

Bolo Tine-single, left hand.
(Superseded to 742-04119-0637)

Note: Used on left and right side tine assy. Tine is stamped either "EL" or AL"; STANDARD TILLING TINES

$

$

Not available

7

Troy-Bilt GW-1270-2A

Bolo Tine-single, right hand.
(Superseded to 742-04118-0637)

Note: Used on left and right side tine assy. Tine is stamped either "ER" or "AR"; STANDARD TILLING TINES

$

$

Not available

8

Troy-Bilt 710-3005

Bolt-hex hd., 3/8-16 x 1"

Note: STANDARD TILLING TINES

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-0375

Locknut-hex, 3/8"-16

Note: STANDARD TILLING TINES

$4.49

$

In Stock, Qty 6

0

Troy-Bilt 290-253-081

Tine Replacement Kit-unassembled

Note: (Incl. eight each of Ref. No.'s 6, and 7, sixteen each of Ref. No.'s 8 and 10). Includes easy-to- follow installation instruction. DOES NOT INCLUDE tine holders, holder mounting hardware, or tine shaft keys; STANDARD TILLING TINES

$

$

Currently unavailable

Troy-Bilt GW-10802

Custom Tilling Tine Kit

Note: (Incl. eight each of Part GW-2475-1 and GW-2475-2 tines and sixteen each of Ref. No.'s 8 and 10; Custom Tilling Tines

$

$

Not available

Troy-Bilt GW-2475-1

Bolo Tine, Custom Tilling-single, left hand
(Superseded to GW-2475-1001)

Note: Custom Tilling Tines

$54.99

$

In Stock, only 2 left!

0

Troy-Bilt GW-2475-2

Bolo Tine, Custom Tilling-single, right hand
(Superseded to GW-2475-2001)

Note: Custom Tilling Tines

$58.99

$

In Stock, only 1 left!

0
