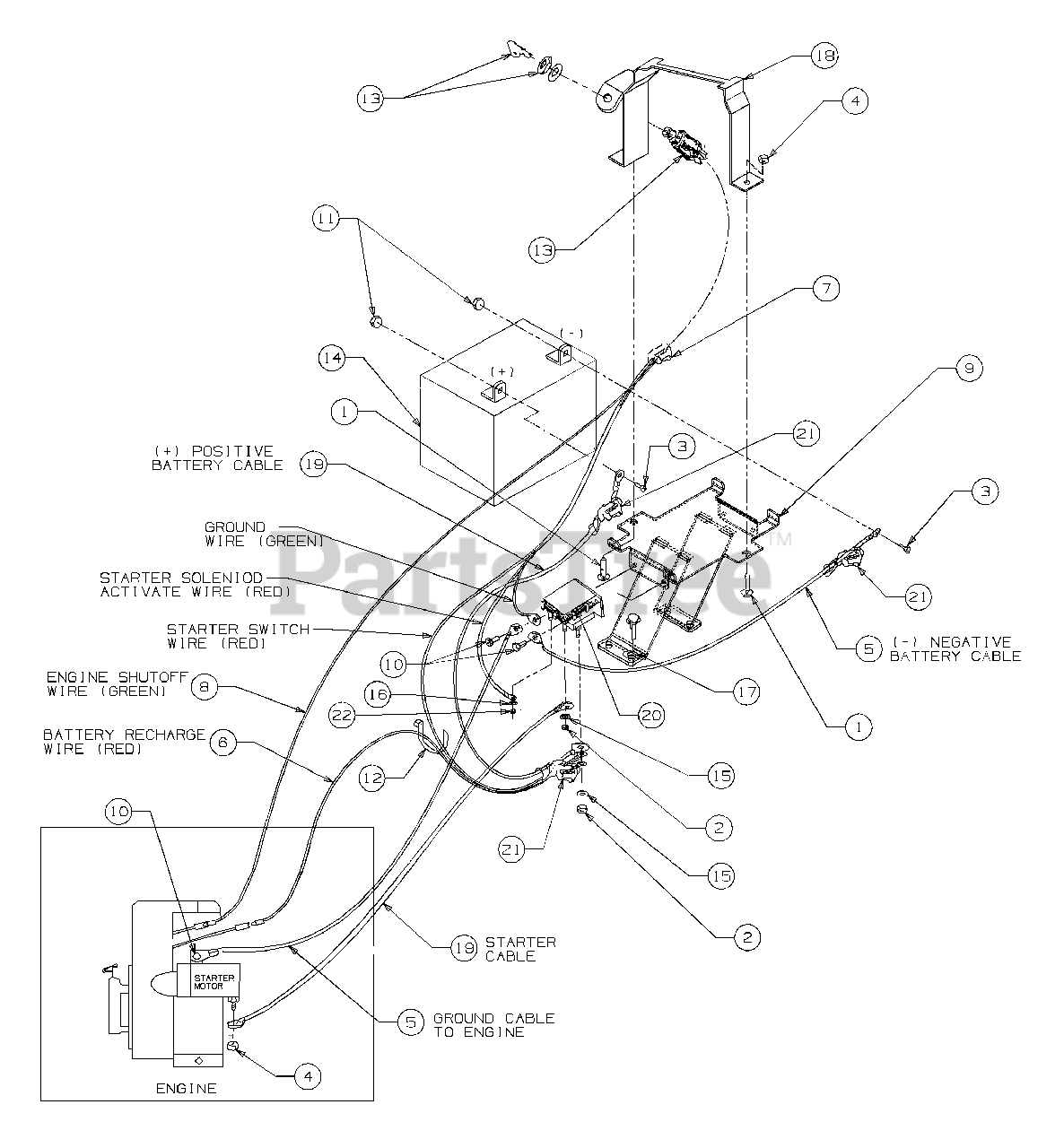

21AE666M766 - Troy-Bilt Pony Rear-Tine Tiller (2005) Electric Start Assembly Parts Diagram

Pony Rear-Tine Tiller

Electric Start Assembly Parts Diagram

  • Title
1

Troy-Bilt 1186073

Carriage Screw, 1/4-20 x 1.25

$2.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 1186211

Hex Nut, 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 1186390

Flange Screw, 1/4-20 x .625

$

$

Currently unavailable

4

Troy-Bilt 1186389

Hex Locknut, 1/4-20

$3.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 1901202

Cable

Note: (ground wire to starter motor bracket)

$34.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1901894

Recharge Wire Assembly

Note: Specify GRADE 5 if ordering locally.

$

$

Not available

7

MTD 1908118

Wire Harness Assy.

Note: (available as complete assembly only).

$

$

Not available

8

MTD 1917262

Ground Wire Assy.

Note: (shut off)

$

$

Not available

9

Troy-Bilt 686-04024

Battery Bracket Assembly, Pony
(Superseded to 686-04024-0638)

Variations

Troy-Bilt 686-04024-0638

BRACKET ASM-BATTERY - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

10

Troy-Bilt 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 17

0

12

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 725-0267

Ignition Switch
(Superseded to 925-0267B)

Note: Specify GRADE 5 if ordering locally.

$35.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 725-1706

Battery, 270 CCA
(Superseded to 925-1707D)

$

$

Not available

15

Troy-Bilt 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 736-0147

Lock Washer, #10
(Superseded to 936-0147)

$3.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 736-0607

External Lock Washer, 5/16

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt GW-2614

Keyswitch Clamp
(Superseded to 686-05065)

$162.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 96510

Cable
(Superseded to GW-96510)

Note: (solenoid to starter motor)

$11.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 96514

Solenoid
(Superseded to GW-96514099)

Note: (Incl. nuts and washers for cables and wires)

$48.99

$

In Stock, Qty 5

0

21

Troy-Bilt 97020

Boot, Insulating
(Superseded to GW-97020)

$

$

Not available

22

Troy-Bilt 9853

Hex Locknut, #10-32
(Superseded to GW-9853)

$6.99

$

Usually ships in 3-6 days

0

Troy-Bilt 777S30648

Label, Ignition Switch

$4.99

$

Usually ships in 3-6 days

0
