21AE663E766 - Troy-Bilt Rear-Tine Tiller (2007) Wheel & Tiller Shaft Assemblies Parts Diagram

Rear-Tine Tiller

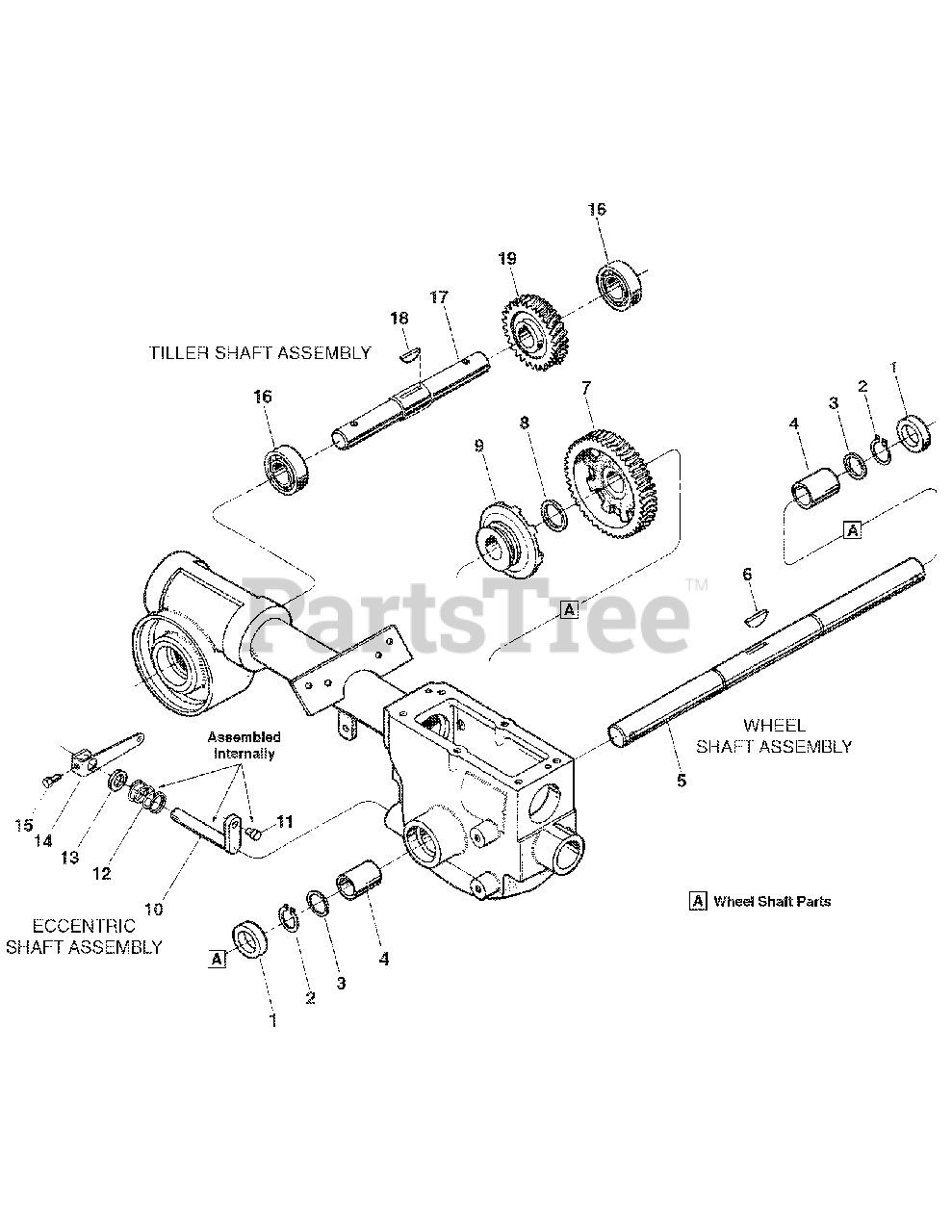

Wheel & Tiller Shaft Assemblies Parts Diagram

  • Title
1

Troy-Bilt 721-04031

Oil Seal
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 1909950

Retaining Ring (heavy-duty, external)
(Superseded to 716-04104)

$4.49

$

In Stock, Qty 19

0

3

Troy-Bilt GW-1166-1

Shim, 1-1/64 I.D., .062" thick
(Superseded to 736-04309)

Note: As Required

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt GW-1166-2

Shim, as above, but .030" thick
(Superseded to 736-04260)

Note: As Required

$6.99

$

In Stock, only 2 left!

0

3

Troy-Bilt GW-1166-3

Shim, as above, but .015" thick
(Superseded to 736-04259)

Note: As Required

$6.99

$

In Stock, Qty 5

0

3

Troy-Bilt GW-1166-4

Shim, as above, but .010" thick
(Superseded to 736-04258)

Note: As Required

$3.99

$

In Stock, Qty 14

0

4

Troy-Bilt GW-1086

Bushing
(Superseded to 941-04300)

$16.99

$

In Stock, Qty 8

0

5

Troy-Bilt 711-04482

Wheel Shaft
(Superseded to 911-04482)

$134.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt GW-9373

Hi-Pro Key, 1/4 x 1-5/16

$10.99

$

In Stock, only 3 left!

0

7

Troy-Bilt GW-20914

Wheel Drive Worm Gear (cast-iron)

$194.99

$

In Stock, only 1 left!

0

8

Troy-Bilt GW-9935

Shim (between key and gear), 1.016 I.D. x 1.468 O.D. x.062 Thick

$3.99

$

In Stock, only 1 left!

0

9

Troy-Bilt GW-20712

Wheel Drive Clutch (cast-iron)

$89.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 611-04002

Eccentric Shaft

$81.99

$

In Stock, only 1 left!

0

11

Troy-Bilt GW-1442

Pin, Eccentric Shaft
(Superseded to 738-04448)

$8.49

$

In Stock, Qty 5

0

12

$7.49

$

In Stock, only 1 left!

0

13

Troy-Bilt 721-04034

Oil Seal
(Superseded to 921-04034)

$10.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 786-04001

Eccentric Shaft Lever

$44.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 710-3013

Hex Hd. Screw, 1/4-20 x 1/2

Note: Specify Grade 5 if oredering part locally.

$4.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 741-3037

Ball Bearing
(Superseded to 941-3037)

$41.99

$

In Stock, Qty 14

0

17

Troy-Bilt 711-04080

Tiller Shaft
(Superseded to GW-20896)

$110.99

$

In Stock, only 1 left!

0

18

Troy-Bilt GW-1104

Woodruff Key, 1/4 x 1-1/4

$9.49

$

In Stock, Qty 20+

0

19

Troy-Bilt GW-20913

Tiller Drive Worm Gear (bronze)

$201.99

$

Usually ships in 3-6 days

0
