21AE663E766 - Troy-Bilt Rear-Tine Tiller (2007) Transmission Housing Parts Diagram

Rear-Tine Tiller

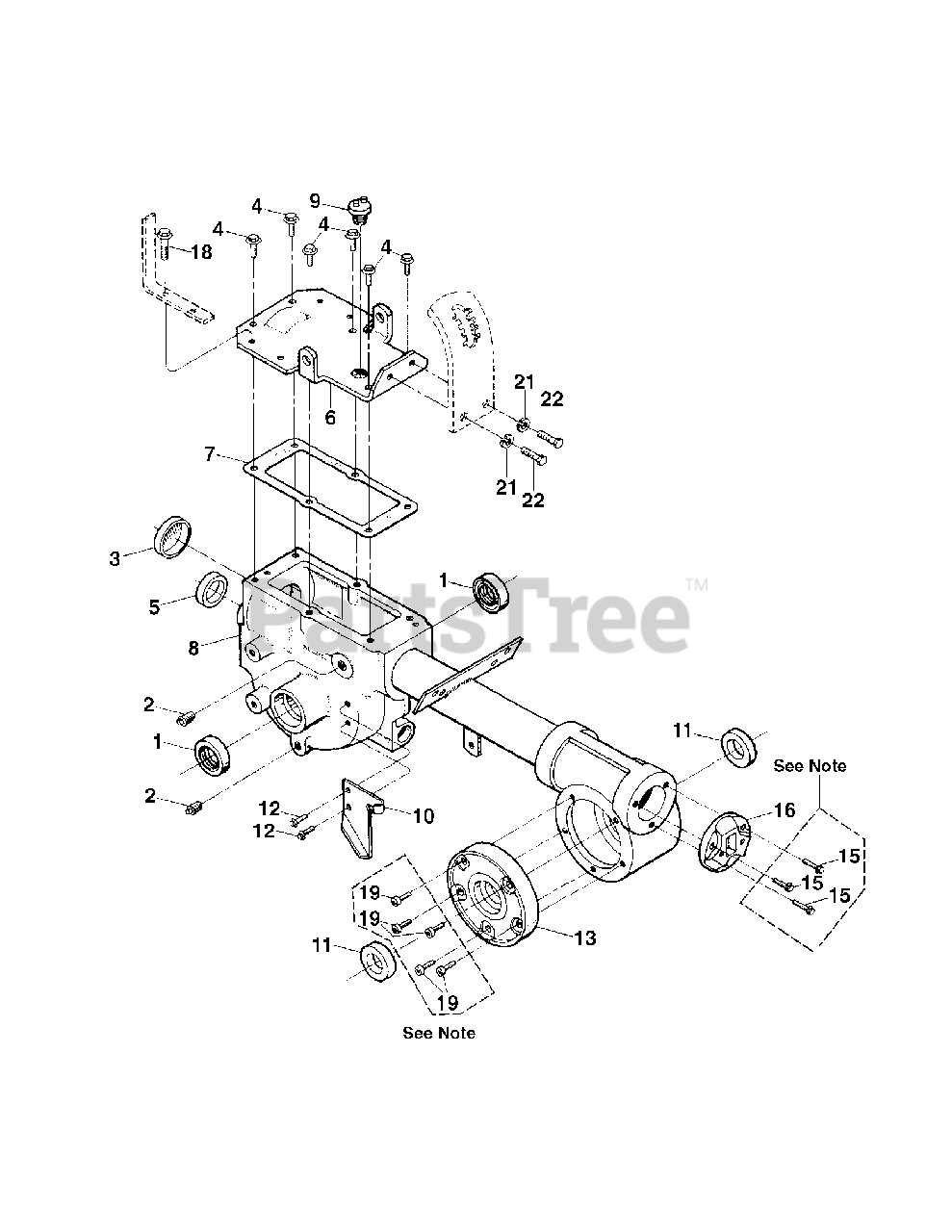

Transmission Housing Parts Diagram

  • Title

1

Troy-Bilt 721-04031

Oil Seal (Double Lip), Wheel Shaft
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 1105620

Pipe Plug, 1/4

$4.49

$

In Stock, only 3 left!

0

3

Troy-Bilt 721-04001

Seal, Transmission Bore

$10.99

$

In Stock, only 3 left!

0

4

Troy-Bilt 710-04043

Hex Flange Screw, 5/16-18 x 3/4

Note: Specify Grade 5 if ordering part locally.

$4.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 721-04044

Oil Seal, Input Pinion Shaft
(Superseded to 921-04044)

$9.49

$

In Stock, Qty 20+

0

6

Troy-Bilt GW-20910

Transmission Cover
(Superseded to 1916193001)

$53.99

$

In Stock, only 1 left!

0

7

Troy-Bilt GW-20694

Gasket, Transmission Top Cover
(Superseded to GW-20694P)

$5.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 619-04010

Transmission Case Assy
(Superseded to 919-04010)

$456.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt GW-9467

Plug

$5.49

$

In Stock, only 1 left!

0

10

Troy-Bilt 1917101001

Mounting Plate, Wheel Clutch Cable

$10.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 721-04035

Oil Seal, Tiller Shaft
(Superseded to 921-04035)

$11.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-04049

Screw, Hex Flange, 5/16-18 x 5/8"

$4.99

$

In Stock, Qty 11

0

13

Troy-Bilt GW-20873

Cover, Tiller Housing

$108.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 1915069

Self-Sealing Screw, 1/4-20 x 7/8"

$4.49

$

In Stock, only 3 left!

0

16

Troy-Bilt GW-1115

Rear Bearing Cap
(Superseded to 718-04406)

$50.99

$

In Stock, Qty 5

0

17

Troy-Bilt GW-1124-2

Gasket, Rear Bearing Cap,.010"
(Superseded to GW-1124-2099)

Note: As Required

$4.99

$

In Stock, Qty 18

0

18

Troy-Bilt 710-1260A

Hex Flange Screw, 5/16-18 x 3/4

Note: Specify Grade 5 if ordering part locally.

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 1915068

Self-Sealing Screw, 1/4-20 x 5/8'

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 736-0169

Lockwasher, 3/8

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt GW-90064

Hex Hd. Screw, 3/8-16 x 5/8
(Superseded to 710-0623)

Note: Specify Grade 5 if ordering part locally.

$4.49

$

In Stock, Qty 20+

0
