21AE663E766 - Troy-Bilt Rear-Tine Tiller (2007) Hood Assembly Parts Diagram

Rear-Tine Tiller

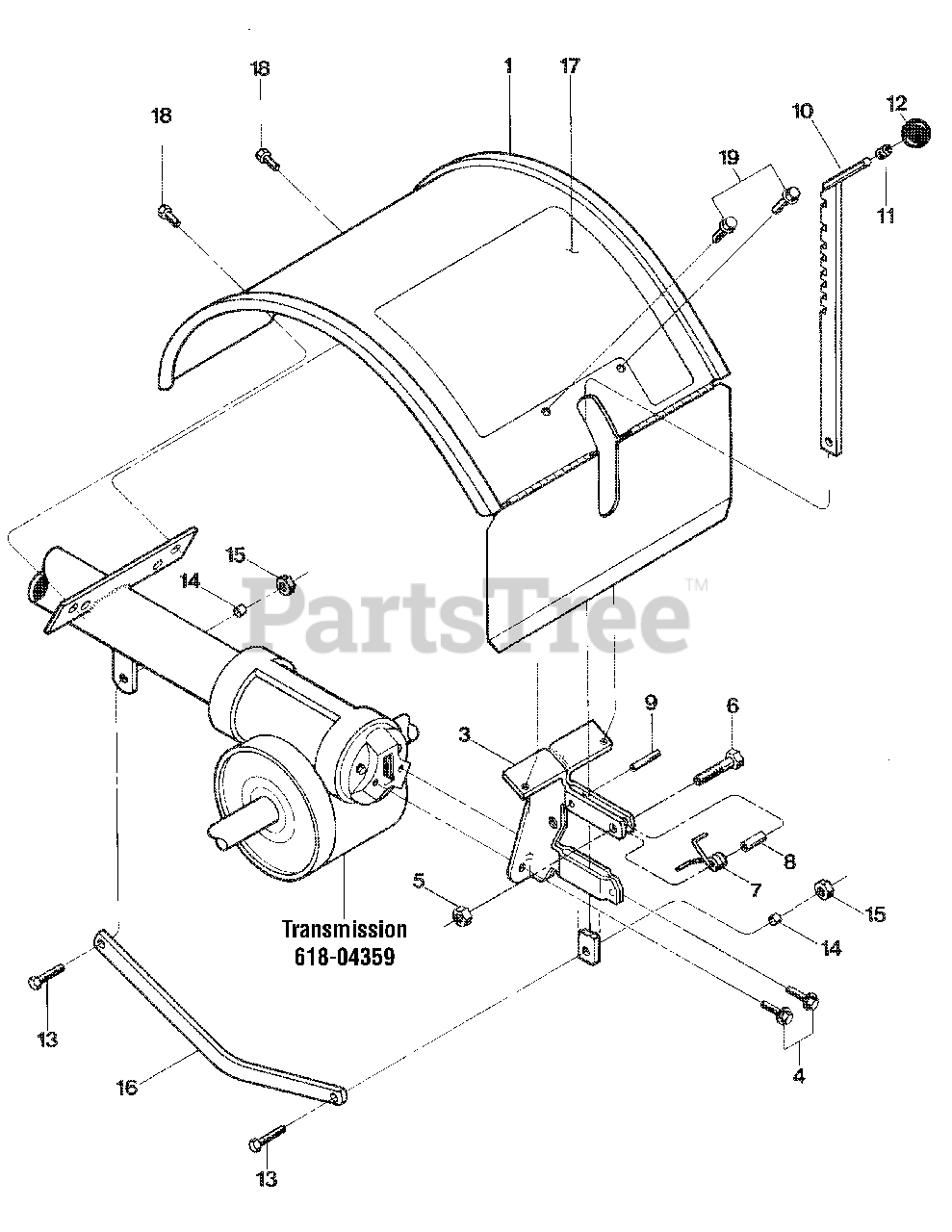

Hood Assembly Parts Diagram

  • Title
1

Troy-Bilt 686-04078

Tine Hood
(Superseded to 686-04078-0638)

Variations

Troy-Bilt 686-04078-0638

Tine Shield Assembly, Red - MTD/TROY-BILT RED (0638)

$184.99

$

Usually ships in 3-6 days

0

$184.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-0169

Lockwasher, 3/8
(Superseded to 711-0577)

$

$

Not available

3

MTD GW-1925

Bracket - hood & depth regulator

$

$

Not available

4

Troy-Bilt 710-04049

Hex Flange Screw, 5/16-18 x 5/8

Note: Specify Grade 5 if ordering parts locally.

$4.99

$

In Stock, Qty 11

0

5

Troy-Bilt 712-04064

Hex Locknut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0597

Hex Hd. Screw, 1/4-20 x 1

Note: Specify Grade 5 if ordering parts locally.

$3.99

$

In Stock, Qty 14

0

$4.49

$

In Stock, Qty 9

0

$6.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 715-04034

Roll Pin (spiral), 1/4 x 1

$6.99

$

In Stock, only 3 left!

0

10

Troy-Bilt GW-1117A

Depth Adjustment Bar Assembly (Incl. Refs. 11 & 12)
(Superseded to 1900864)

$86.99

$

In Stock, only 4 left!

0

11

Troy-Bilt GW-9120

Retaining Ring (tolerance ring)

$6.99

$

In Stock, only 1 left!

0

12

Troy-Bilt GW-9119

Knob, Depth Regulator

$11.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 710-3005

Hex Hd. Screw, 3/8-16 x 1-1/4

Note: Specify Grade 5 if ordering parts locally.

$3.99

$

In Stock, Qty 10

0

14

Troy-Bilt GW-1113-1

Bushing, Drag Bar
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-04065

Hex Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt GW-20775

Drag Bar
(Superseded to 1916185001)

$

$

Not available

17

Troy-Bilt 777S30649

Decal, operating instructions

$27.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 710-0759

Hex Hd. Screw, self-tapping, 5/16-18 x 5/8"

Note: Specify Grade 5 if ordering parts locally.

$6.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 710-0599

Hex Flange Screw, self-tapping,1/4-20 x 1/2"

$4.49

$

In Stock, Qty 20+

0
