21AE663E766 - Troy-Bilt Rear-Tine Tiller (2007) Engine Accessories and Drive Parts Diagram

Rear-Tine Tiller

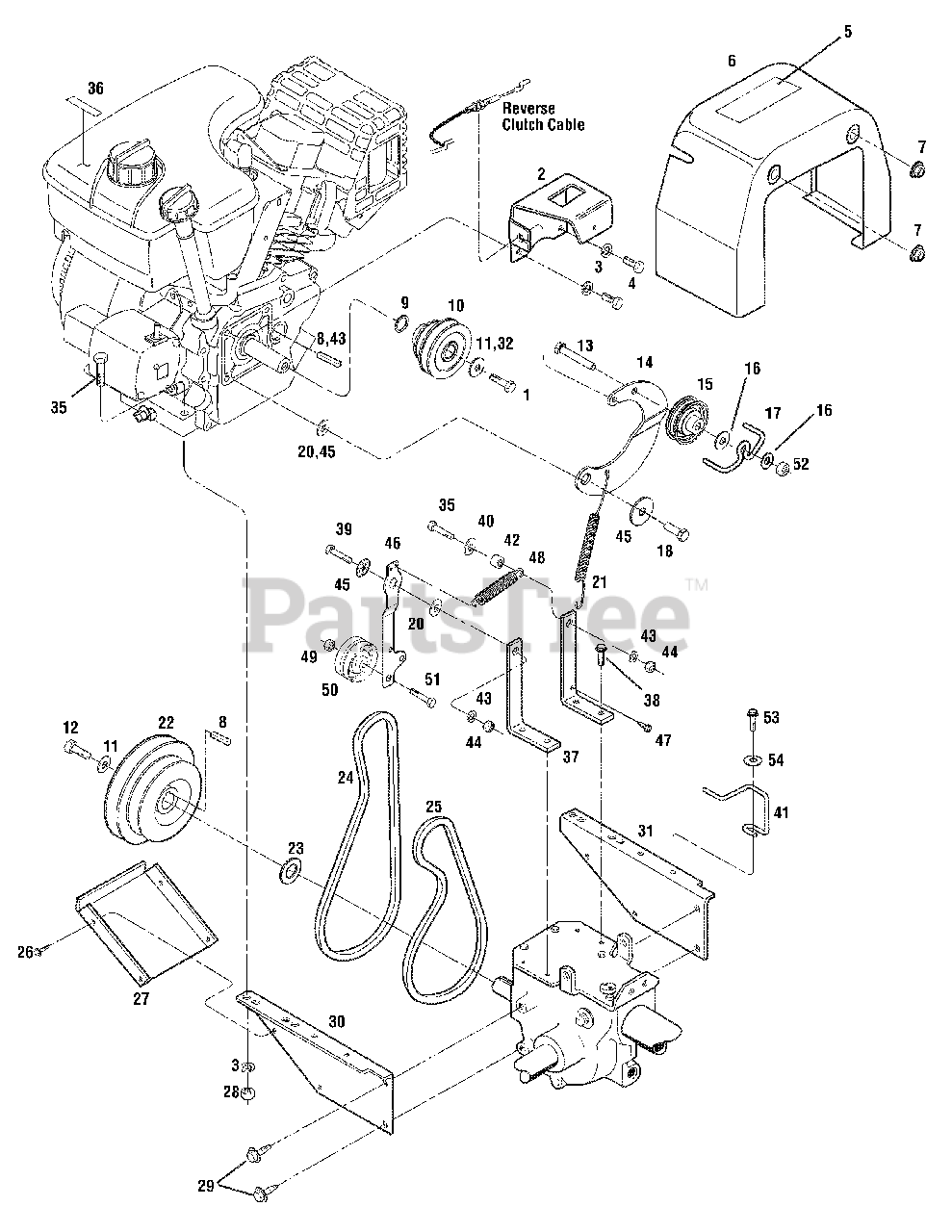

Engine Accessories and Drive Parts Diagram

  • Title

1

Troy-Bilt 710-0539

Screw, 3/8-24 x 1.75

Note: For Models 663E & E663E

$4.99

$

In Stock, Qty 12

0

1

Troy-Bilt 710-04458

Screw, 5/16-24 x 1.125
(Superseded to 710-0672)

Note: For Model 665B

$4.49

$

In Stock, Qty 18

0

2

Troy-Bilt 786-04070

Bracket, Clutch Cable
(Superseded to 786-04070-0637)

Variations

Troy-Bilt 786-04070-0637

Belt Cover Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

3

Troy-Bilt 736-0119

Lockwasher-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0107

Hex Hd. Screw, 5/16-24 x 1/2

$3.49

$

Usually ships in 3-6 days

0

5

MTD 777S30651

Decal, Hot Surfaces/Belt Warning

$

$

Not available

6

Troy-Bilt 731-05290

Cover

$26.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 714-04042

Key, 3/16 x 1-1/2
(Superseded to 914-0133)

Note: For Model 665B

$

$

Not available

9

Troy-Bilt 736-04187

Shim

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 619-04015

Pulley, Engine Drive
(Superseded to 919-04015)

Note: For Models 663E & E663E

$

$

Not available

10

Troy-Bilt 619-04130

Pulley, Engine Drive

Note: For Model 665B

$55.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 736-04193

Belleville Washer

Note: For Model 665B

$6.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-04458

Hex Hd. Screw, 5/16-24 x 1-1/8
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 18

0

13

Troy-Bilt 710-3103

Hex Hd. Screw, 5/16-18 x 2

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 786-04276

Reverse Idler Arm

$16.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 756-04169

Pulley, Reverse Idler

$25.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 736-0159

Flat Washer, 5/16

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 732-04081

Belt Guide, Wire Formed

$10.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 710-0117

Hex Head Screw, 5/16-24 x 1
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 748-04087

Washer, Shoulder
(Superseded to 748-04087A)

$6.49

$

In Stock, Qty 9

0

20

Troy-Bilt 736-3078

Washer, Flat, 1-1/8

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 732-04077

Spring, Reverse Return

$10.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 619-04123

Transmission Pulley

$165.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 736-04079

Support Washer

$4.99

$

In Stock, Qty 7

0

24

Troy-Bilt 754-04095

Reverse Clutch Belt
(Superseded to 954-04095)

$18.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 754-04094

Forward Clutch Belt
(Superseded to 954-04094)

$30.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 710-04459

Self-tapping Screw, #10-32 x 1/2,
(Superseded to 1900396)

$5.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 786-04080

Guard, Belts/Pulleys
(Superseded to 786-04080-0638)

Variations

Troy-Bilt 786-04080-0638

BRACKET-ENGINE PAN - MTD/TROY-BILT RED (0638)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 712-04063

Hex Flange Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 710-04043

Hex Flange Screw, 5/16-18 x 3/4

Note: Specify Grade 5 if ordering part locally

$4.49

$

Usually ships in 3-6 days

0

30

Troy-Bilt 786-04066

Engine Support Bracket, left side

Variations

Troy-Bilt 786-04066-0637

SUPPORT-LH ENGINE - POWDER BLACK (0637)

$44.99

$

In Stock, only 1 left!

0

$38.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 786-04067

Engine Support Bracket, right side
(Superseded to 786-04067-0637)

Variations

Troy-Bilt 786-04067-0637

SUPPORT-RH ENGINE - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 736-0452

Bell Washer

Note: For Models 663E & E663E

$4.99

$

In Stock, Qty 5

0

35

Troy-Bilt 710-0395

Hex Hd. Screw, 5/16-18 x 2-1/4

$4.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 777I20358

Decal, Stabilization

$8.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 786-04277

Mounting Bar
(Superseded to 1918774001)

$14.99

$

In Stock, only 1 left!

0

38

Troy-Bilt 710-1260

Hex Flange Screw, 5/16-18 x .75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 710-0805

Hex Hd. Screw, 5/16-18 x 1-1/2
(Superseded to 710-0805A)

Note: Specify Grade 5 if ordering part locally

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 736-0275

Flat Washer, 5/16'

$6.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 732-04082

Belt Guide, Pony

$11.99

$

In Stock, only 1 left!

0

42

Troy-Bilt 750-04160

Pivot Bushing
(Superseded to GW-55088)

$

$

Not available

43

Troy-Bilt 714-04029

Key, .188 x 1.75
(Superseded to 914-04029)

Note: For Models 663E & E663E

$

$

Not available

44

Troy-Bilt 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

45

Troy-Bilt 748-04087

Washer, Shoulder
(Superseded to 748-04087A)

$6.49

$

In Stock, Qty 9

0

46

Troy-Bilt 786-04275

Idler Arm, Forward Tiller Direction
(Superseded to 786-04275-0637)

Variations

Troy-Bilt 786-04275-0637

Idler Arm, Forward - POWDER BLACK (0637)

$35.99

$

In Stock, only 1 left!

0

$35.99

$

In Stock, only 1 left!

0

47

Troy-Bilt 710-04460

Screw, self tapping, #10-24

Note: Secures Forward Cluch Cable PN 746-04027

$4.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 732-04078

Spring

$

$

Not available

49

Troy-Bilt 712-3000

Hex Locknut, 5/16-18

$4.49

$

In Stock, Qty 9

0

50

Troy-Bilt 756-04170

Idler Pulley, Forward

$35.99

$

In Stock, only 2 left!

0

51

Troy-Bilt 710-0347

Screw, 3/8-16 x 1-3/4

$5.49

$

In Stock, Qty 20+

0

52

Troy-Bilt 712-0158

Hex Lock Nut, 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

53

Troy-Bilt 710-04461

Screw, 1/4-20 x 3/4
(Superseded to 1754128)

$3.99

$

In Stock, only 2 left!

0

54

Troy-Bilt 736-0463

Flat Washer-1/4

$4.49

$

In Stock, Qty 12

0
