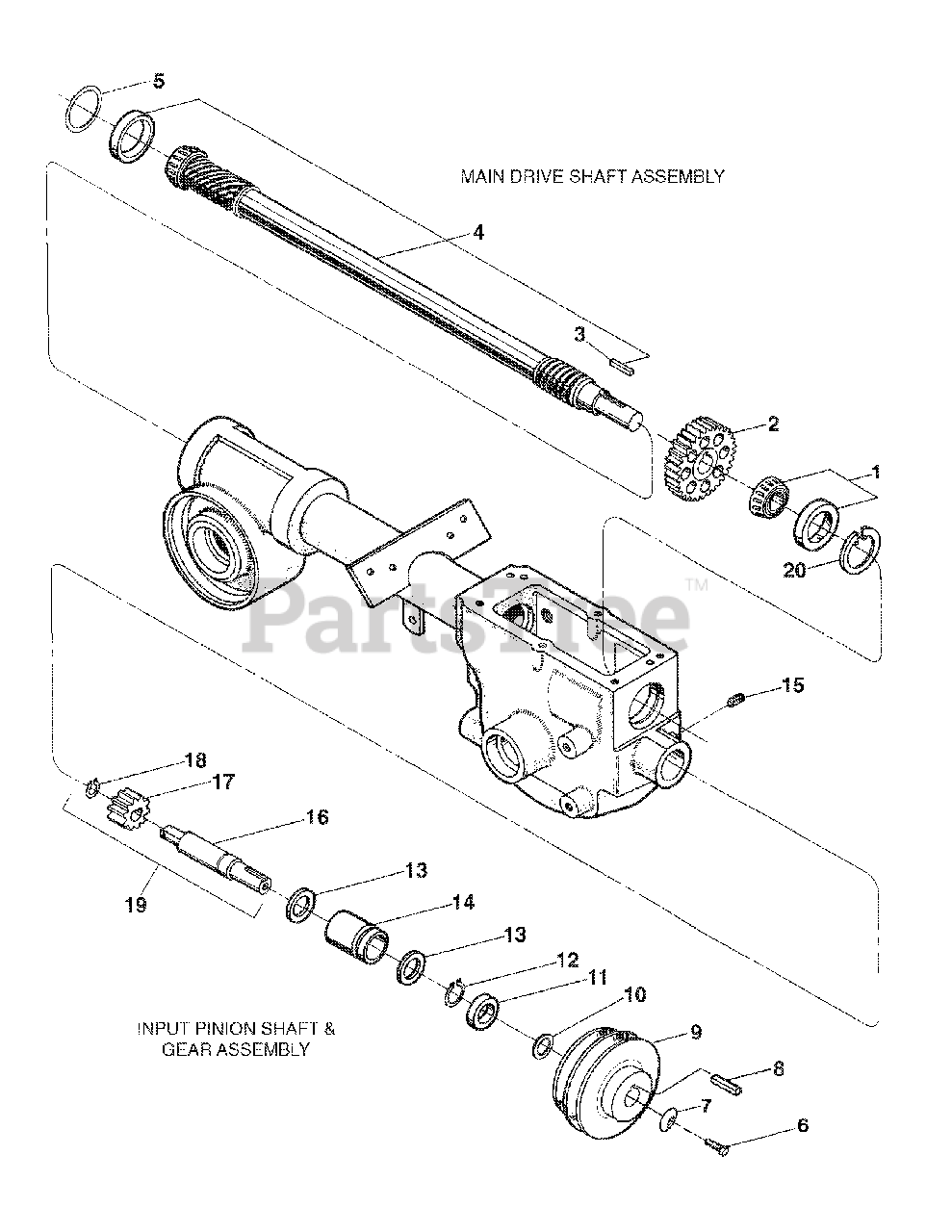

21AE663E766 - Troy-Bilt Rear-Tine Tiller (2007) Drive Shaft Assembly Parts Diagram

Troy-Bilt GW-1714

Troy-Bilt GW-20718

Troy-Bilt GW-9301

Troy-Bilt GW-20912

Note: Drive shaft is one-piece with integral, single-lead, work-hardened front worm, and integral, six-lead, work-hardened rear worm.

Troy-Bilt GW-1224-1

Note: As Required; Shim between drive shaft rear bearing and rear bearing cap to achieve 5 to 10 thousandths of an inch (.005-.001) end play on drive shaft.

Troy-Bilt GW-1224-2

Note: As Required; Shim between drive shaft rear bearing and rear bearing cap to achieve 5 to 10 thousandths of an inch (.005-.001) end play on drive shaft.

Troy-Bilt GW-1224-3

Note: As Required; Shim between drive shaft rear bearing and rear bearing cap to achieve 5 to 10 thousandths of an inch (.005-.001) end play on drive shaft.

Troy-Bilt GW-1325C

Note: As Required; Shim between drive shaft rear bearing and rear bearing cap to achieve 5 to 10 thousandths of an inch (.005-.001) end play on drive shaft.

Troy-Bilt 710-04458

Note: As Required, Specify Grade 5 if ordering part locally.

Troy-Bilt 736-04193

Troy-Bilt 714-04042

Troy-Bilt 1916522

Troy-Bilt 736-04079

Troy-Bilt 721-04044

Troy-Bilt 1113527

Troy-Bilt GW-9953

Troy-Bilt GW-9428

Troy-Bilt GW-9677

Note: Specify Grade 5 if ordering part locally.

Troy-Bilt GW-20791

Troy-Bilt GW-20792

Troy-Bilt GW-9093

Troy-Bilt GW-20799

Note: As Required

Troy-Bilt GW-9517
