21AE663E766 - Troy-Bilt Rear-Tine Tiller (2006) Drive Shaft, Input Pinion Shaft and Gear Assemblies Parts Diagram

Rear-Tine Tiller

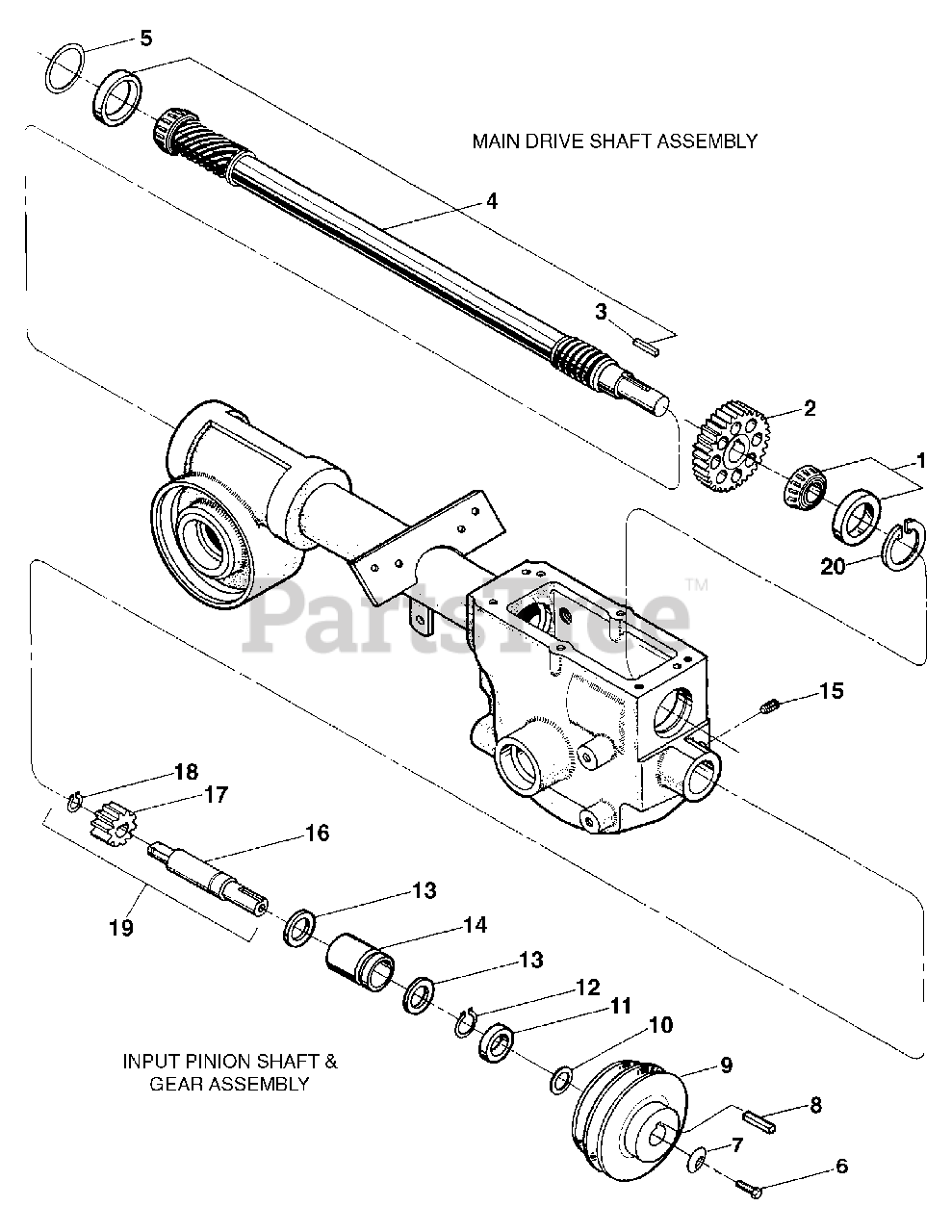

Drive Shaft, Input Pinion Shaft and Gear Assemblies Parts Diagram

  • Title

1

Troy-Bilt GW-1714

Bearing, Tapered Roller with Race
(Superseded to 941-0107)

$47.99

$

In Stock, Qty 17

0

2

Troy-Bilt GW-20718

Spur Gear
(Superseded to 717-04690)

$39.99

$

In Stock, only 1 left!

0

3

Troy-Bilt GW-9301

Key, 3/16 sq x 1

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt GW-20912

Main Drive Shaft

$297.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt GW-1224-1

Shim, Rear Bearing Cap, .010"
(Superseded to 736-04308)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt GW-1224-2

Shim, same as above, but .030" thick
(Superseded to 736-04307)

$4.49

$

In Stock, only 3 left!

0

5

Troy-Bilt GW-1224-3

Shim, same as above, but .005 thick
(Superseded to 736-04306)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt GW-1325C

Shim Set (Incl. two 1224-2 and one GW-1224-3)

$15.99

$

In Stock, only 2 left!

0

6

Troy-Bilt 710-04458

Hex Hd. Screw, 5/16-24 x 1-1/8 (Specify GRADE 5 if ordering part locally)
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 16

0

7

Troy-Bilt 736-04193

Washer, Disc Spring (concave surface faces pulley)

$6.99

$

In Stock, Qty 19

0

8

Troy-Bilt 714-04042

Key, 3/16 sq x 1-1/2
(Superseded to 914-0133)

$

$

Not available

9

Troy-Bilt 1916522

Transmission Drive Pulley
(Superseded to 619-04123)

$165.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 736-04079

Support Washer

$4.99

$

In Stock, Qty 7

0

11

Troy-Bilt 721-04044

Oil Seal, Input Pinion Shaft
(Superseded to 921-04044)

$9.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 1113527

Retaining Ring (external)
(Superseded to 916-0101)

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt GW-9953

Thrust Washer

$

$

Not available

14

Troy-Bilt GW-9428

Bushing

$37.99

$

In Stock, only 1 left!

0

15

Troy-Bilt GW-9677

Set Screw, 5/16-18 x 3/8 (Specify GRADE 5 if ordering part locally)

$3.49

$

In Stock, only 2 left!

0

16

Troy-Bilt GW-20791

Input Pinion (steel shaft)
(Superseded to 711-05388)

$84.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt GW-20792

Input Pinion Gear
(Superseded to 717-04689)

$22.99

$

In Stock, only 1 left!

0

18

Troy-Bilt GW-9093

Retaining Ring (external)

$6.99

$

In Stock, only 1 left!

0

19

Troy-Bilt GW-20799

Pinion Assy. (Incl. One each refs. 16, 17 & 18)

$

$

Not available

20

Troy-Bilt GW-9517

Retaining Ring (internal)
(Superseded to 716-04102)

$4.49

$

In Stock, Qty 20+

0
