21AE662M066 - Troy-Bilt Rear-Tine Tiller (2009) Handle & Tine Shield Parts Diagram

Rear-Tine Tiller

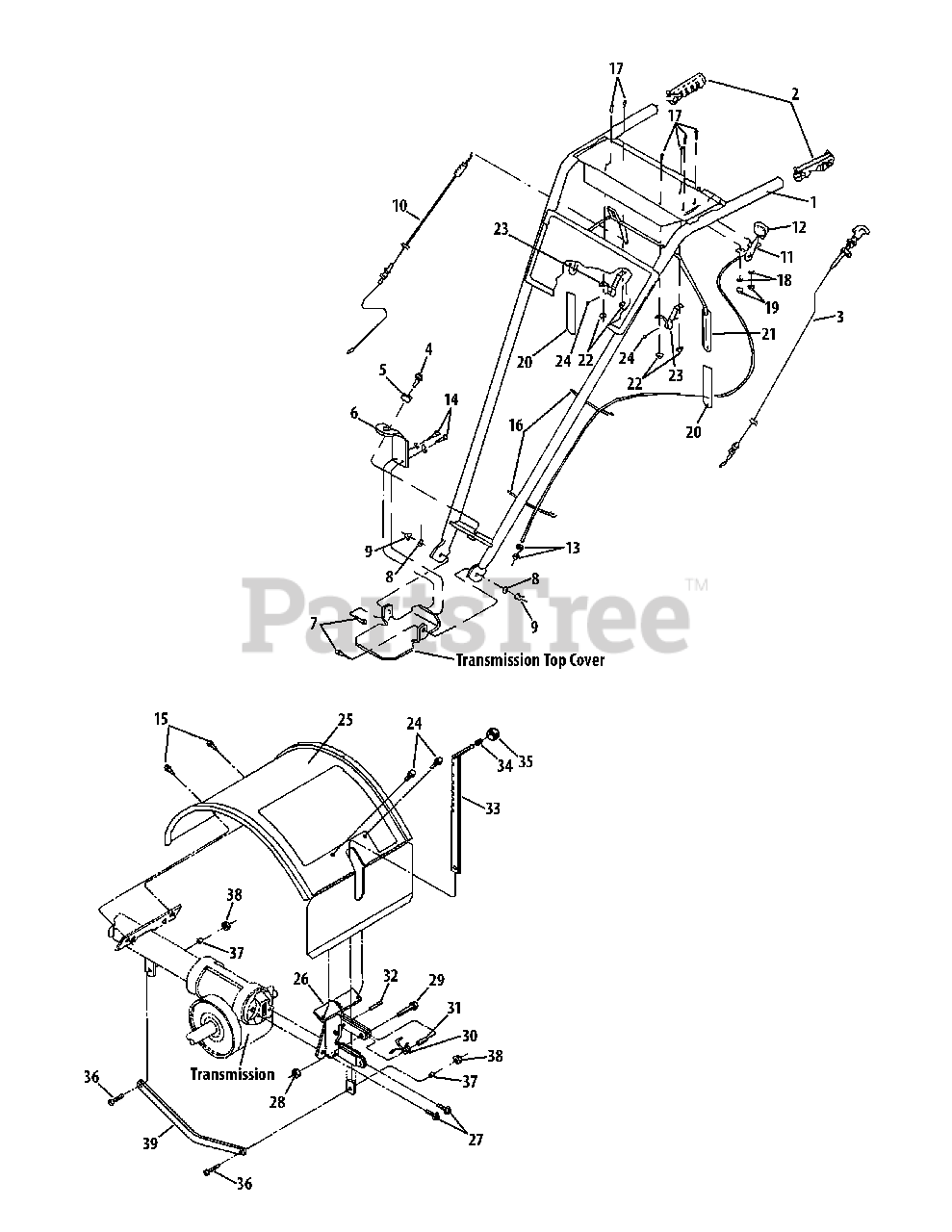

Handle & Tine Shield Parts Diagram

  • Title
1

Troy-Bilt 1918811P

Handlebars

$346.99

$

Usually ships in 3-6 days

0

$11.99

$

In Stock, Qty 11

0

3

Troy-Bilt 1916784

Reverse Clutch Control Cable
(Superseded to 1916784P)

$68.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 710-04042

Hex Flange Screw, 3/8-16

$4.99

$

In Stock, only 2 left!

0

5

Troy-Bilt GW-9955

Keyed Washer
(Superseded to 736-04445)

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 1900475010

Handlebar Hgt. Adjustment Bracket

$21.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 710-0514

Hex Hd. Screw, 3.8-16 x 1

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 736-3050

Plain Washer, 3.8

$4.49

$

In Stock, Qty 16

0

9

Troy-Bilt 912-3000

Hex Locknut, 3.8-16
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

10

Troy-Bilt 746-04027

Forward Clutch Control Cable
(Superseded to 946-04027)

$44.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt GW-9442

Wheel Gear Control & Cable Ass.
(Superseded to GW-9442P)

$40.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt GW-9057

Wheel Gear Control Lever Knob

$8.49

$

In Stock, only 1 left!

0

13

Troy-Bilt 1186211

Hex Nut, 5.16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

14

Troy-Bilt GW-90064

Hex Head Screw, 3.8-16 x 5/8
(Superseded to 710-0623)

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 710-0759

Self-tapping Screw, 5.16-18 x 5.8

$6.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 725-0157

Cable Ties

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 1114748

Round Head Screw, #10-32 x 1.2

$5.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 936-0722

Lockwasher, #10
(Superseded to 736-0722)

$6.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 1186208

Hex Nut, #10-32

$6.49

$

Usually ships in 3-6 days

0

$4.99

$

In Stock, only 3 left!

0

21

Troy-Bilt 1918840

Forward Clutch Bail

$116.99

$

Usually ships in 3-6 days

0

22

$6.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt GW-20806

Bail Support Bracket

$8.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 710-0599

Self-tapping Screw, 1.4-20 x 1.2

$4.49

$

In Stock, Qty 20+

0

$184.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt GW-2525

Depth Regulator

$97.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 710-04049

Hex Flange Screw, 5.16-18 x 5.8

$4.99

$

In Stock, Qty 11

0

28

Troy-Bilt 712-04064

Hex Locknut, 1.4-20

$3.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 710-0597

Hex Head Screw, 1.4-20 x 1

$3.99

$

In Stock, Qty 14

0

$4.49

$

In Stock, Qty 11

0

$6.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 715-04034

Roll Pin (spiral), 1.4 x 1

$6.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 1900864

Depth Regulator

$86.99

$

In Stock, only 4 left!

0

34

Troy-Bilt GW-9120

Retaining Ring

$6.99

$

In Stock, only 1 left!

0

35

Troy-Bilt GW-9119

Depth Regulator Knob

$11.99

$

In Stock, Qty 8

0

36

Troy-Bilt 710-3005

Hex Head Screw, 3.8-16 x 1-1.4

$3.99

$

In Stock, Qty 20+

0

37

Troy-Bilt GW-1113-1099

Drag Bar Bushing

$5.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 712-04065

Hex Nut, 3.8-16

$3.99

$

In Stock, Qty 20+

0

39

$

$

Not available
