21AE662H066 - Troy-Bilt Rear-Tine Tiller (2010) Electric Start Parts Diagram

Rear-Tine Tiller

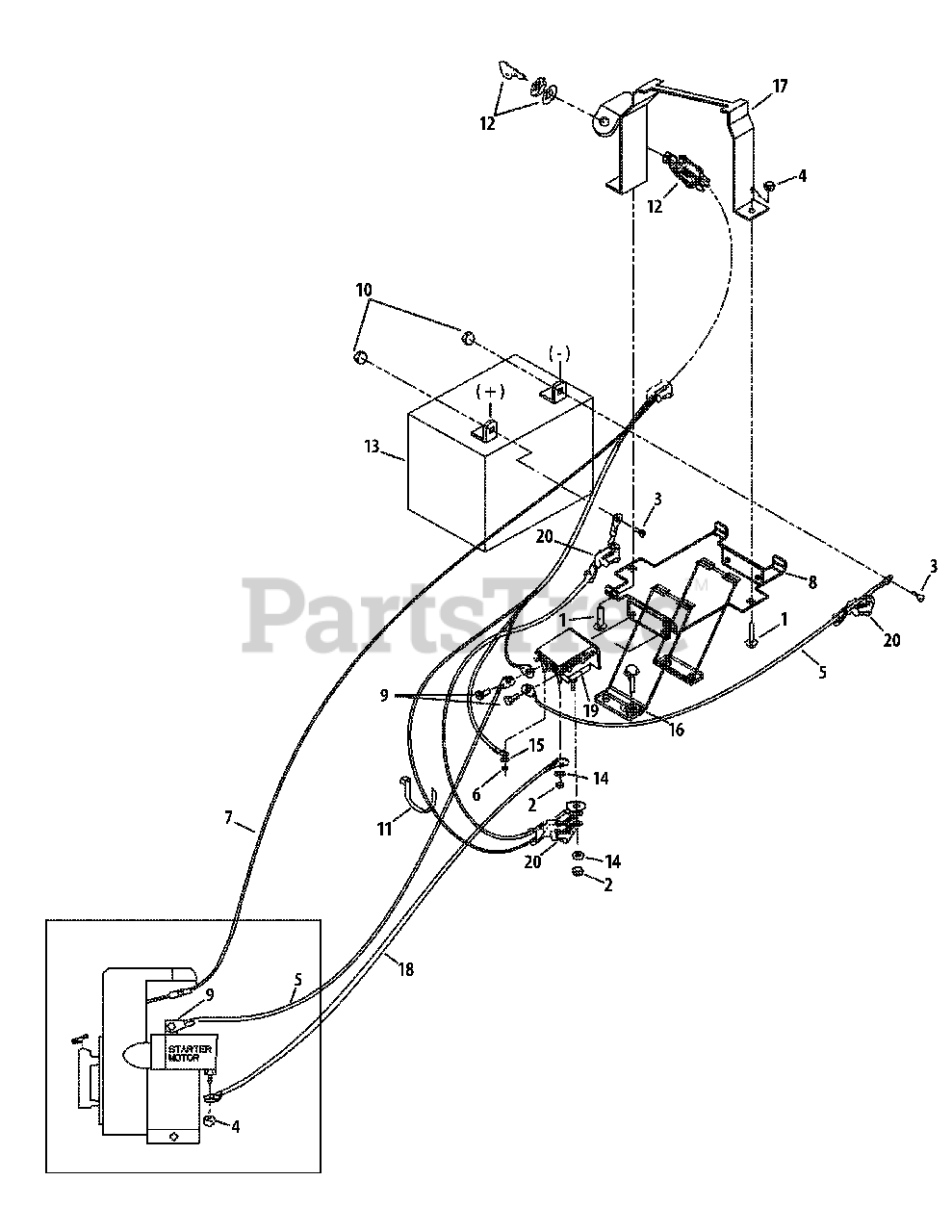

Electric Start Parts Diagram

  • Title

1

Troy-Bilt 1186073

Carriage Screw 1/4-20 x 1.25

$2.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 1186211

Hex Nut 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

3

Troy-Bilt 1186309

Flange Screw 1/4-20 x .625

$

$

Not available

4

Troy-Bilt 1186389

Hex Locknut 1/4-20

$3.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 1901202

Cable (Ground Wire)

$34.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt GW-9853

Hexlock Washer Nut, 10-32

$6.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 725-04346

Electric Start Harness

$54.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 686-04024-0638

Battery Bracket Assembly

$

$

Not available

9

Troy-Bilt 710-0599

Self-tapping Screw 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-3006

Hex Nut 1/4-20

$4.99

$

In Stock, Qty 19

0

11

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

12

Troy-Bilt 925-0267B

Ignition Switch

$35.99

$

In Stock, Qty 8

0

13

Troy-Bilt 925-1707D

Battery 270 CCA

$

$

Not available

14

Troy-Bilt 936-0119

Lock Washer 5/16

$4.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 936-0147

Lock Washer #10

$3.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt 736-0607

External Lock Washer 5/16

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 1900873

Keyswitch Clamp

$162.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt GW-96510

Cable (Solenoid to Starter Motor)

$11.99

$

In Stock, only 1 left!

0

19

Troy-Bilt GW-96514099

Solenoid

Note: (Incl. Nuts and Washers for Cables and Wires)

$48.99

$

In Stock, only 1 left!

0

20

Troy-Bilt GW-97020

Insulating Boot

$

$

Not available
