21AB45M8B66 - Troy-Bilt Mustang Tiller (2023) Drive Assembly Parts Diagram

Mustang Tiller

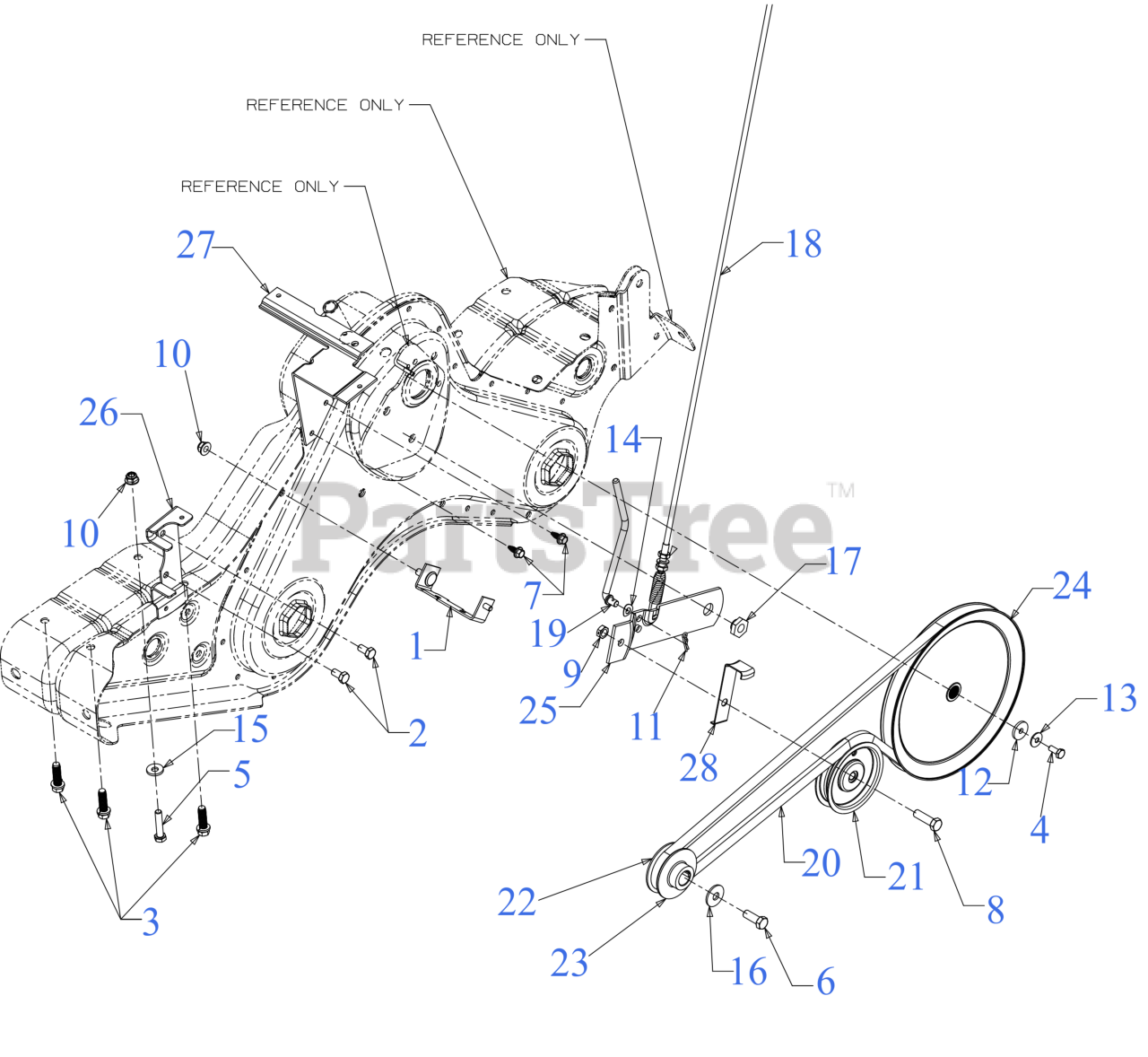

Drive Assembly Parts Diagram

  • Title
1

Troy-Bilt 686-0111

BELT COVER BRACKET ASSEMBLY

Variations

Troy-Bilt 686-0111-0637

Cover Bracket Assembly - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-0170

HEX SCREW 5/16-24 x .62

$6.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 710-0502A

SCREW 3/8-16 x 1.250

$6.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 710-0513A

BOLT 1/4-28 x .625 GR8

$4.99

$

In Stock, Qty 7

0

5

Troy-Bilt 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-1039

SCREW 3/8-24 x 1.00 GR8

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-0266A

JAM LOCK NUT

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 714-0104

COTTER PIN .072 DIA

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 736-0176

FLAT WASHER

$4.99

$

In Stock, only 4 left!

0

13

Troy-Bilt 736-0270

SPRING WASHER BELL

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 936-0271

SHAKE PROOF WASHER

$4.49

$

In Stock, Qty 10

0

15

Troy-Bilt 736-04193

BELLVILLE WASHER .827 x .331 x .098

$6.99

$

In Stock, Qty 19

0

16

Troy-Bilt 736-0452

BELL WASHER

$4.99

$

In Stock, Qty 5

0

17

Troy-Bilt 738-0876A

SHOULDER NUT

$10.99

$

In Stock, Qty 15

0

18

Troy-Bilt 946-1117

CLUTCH CABLE

$66.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 747-1159

IDLER PULLEY ROD

$26.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 954-0434

BELT 1/2 x 58.160"

$61.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 756-0405

IDLER PULLEY

$71.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 756-0971

ENGINE PULLEY INNER HALF

$14.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 756-0972

ENGINE PULLEY OUTER HALF

$16.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 756-1162

INPUT PULLEY

$90.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 786-0064A

IDLER BRACKET

$38.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 786-0185A-0637

BELT KEEPER BRACKET

$16.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 786-0187-0637

SHIFT COVER BRACKET

$23.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 786-0193-0637

IDLER BELT KEEPER

$9.99

$

Usually ships in 3-6 days

0
