21AB454C401 - Yard-Man Tiller (2002) Drive Parts Diagram

Tiller

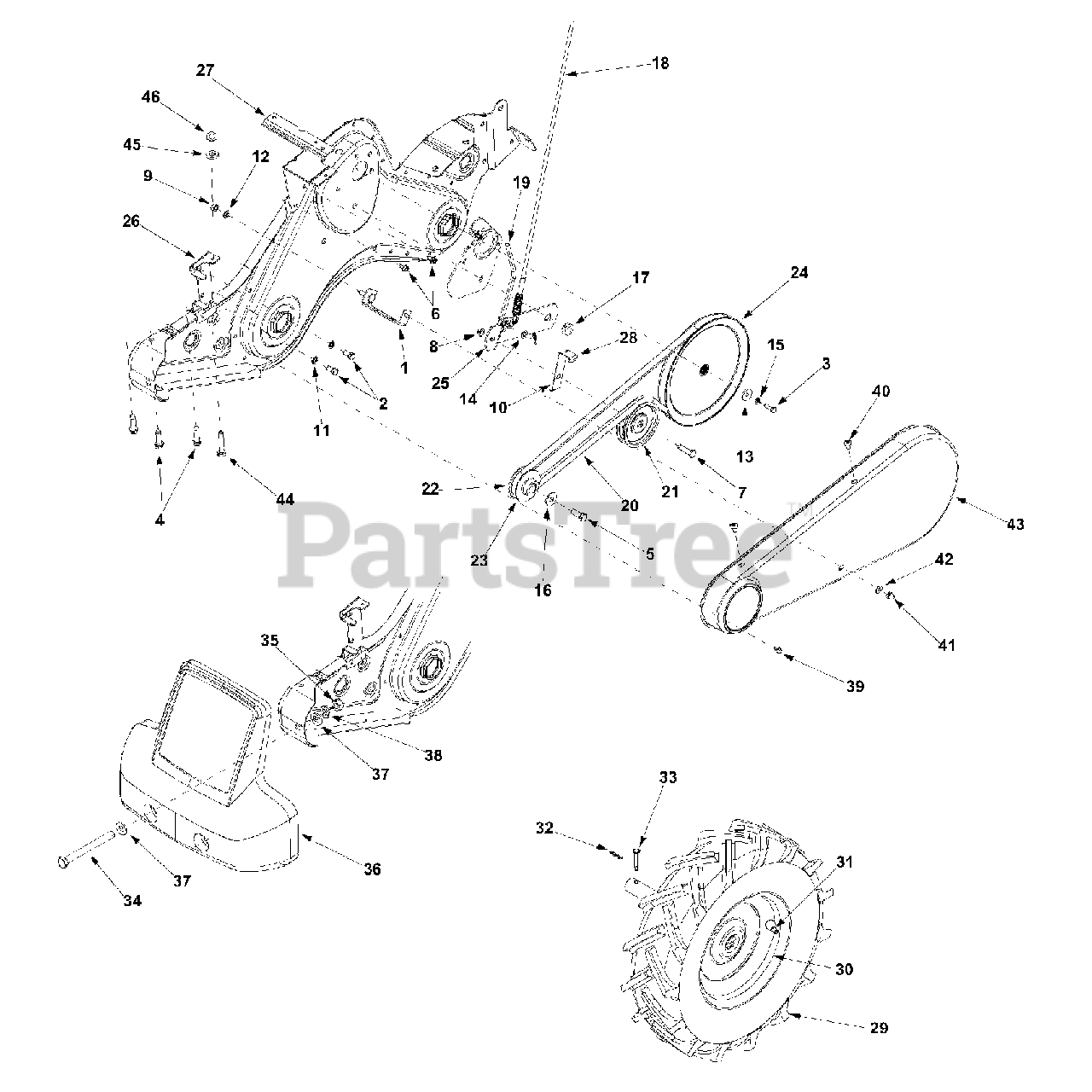

Drive Parts Diagram

  • Title

1

MTD 686-0111

Belt Cover Bracket Ass'y

Variations

MTD 686-0111-0637

Cover Bracket Assembly - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

2

MTD 710-0237

Hex Bolt 5/16-24 x .62"

$4.49

$

In Stock, only 1 left!

0

3

MTD 710-0412

Hex Bolt 1/4-28 x .75"

$5.99

$

In Stock, Qty 9

0

4

MTD 710-0502A

Hex Washer Screw 3/8-16 x 1.25"

$6.99

$

In Stock, only 2 left!

0

5

MTD 710-0591

Hex Bolt 3/8-24 x 1.0

$4.49

$

Usually ships in 3-6 days

0

6

MTD 710-0599

Hex Washer Screw

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0723

Hex Cap Screw 3/8-16 x 1.25

$4.99

$

In Stock, only 3 left!

0

8

MTD 712-0266

Lock Jam Nut 3/8-16
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-0267

Hex Nut 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

10

MTD 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

11

MTD 736-0104

Hairpin Clip
(Superseded to 936-0104)

$4.99

$

Usually ships in 3-6 days

0

12

MTD 736-0119

Lock Washer 5/16"
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

MTD 736-0176

Flat Washer .25 ID x .93 OD

$4.99

$

In Stock, only 4 left!

0

14

MTD 736-0271

Spring Washer .317 ID x .625 OD
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

15

MTD 736-0329

Lock Washer 1/4" ID
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

16

MTD 736-0452

Bell Washer .396 ID x 1.14 OD

$4.99

$

In Stock, Qty 5

0

17

MTD 738-0876

Shoulder Nut 7/16-20
(Superseded to 738-0876A)

$10.99

$

In Stock, Qty 15

0

18

MTD 746-1117

Clutch Cable
(Superseded to 946-1117)

$66.99

$

In Stock, only 1 left!

0

19

MTD 747-1159

Idler Pulley Rod

$26.99

$

Usually ships in 3-6 days

0

20

MTD 754-0434

V-Belt
(Superseded to 954-0434)

$61.99

$

In Stock, only 1 left!

0

21

MTD 756-0405

Flat Idler w/Flange 3.75 OD

$71.99

$

Usually ships in 3-6 days

0

22

MTD 756-0971

Outer Engine Pulley Half

$14.99

$

Usually ships in 3-6 days

0

23

MTD 756-0972

Inner Engine Pulley Half

$16.99

$

Usually ships in 3-6 days

0

24

MTD 756-1162

Input Pulley

$90.99

$

In Stock, only 1 left!

0

25

MTD 786-0064A

Idler Bracket

$38.99

$

In Stock, only 1 left!

0

26

MTD 786-0186

Belt Keeper Bracket
(Superseded to 786-0186-0637)

Variations

MTD 786-0186-0637

BRACKET-BELT KEEPE - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

27

MTD 786-0187

Shift Cover Bracket
(Superseded to 786-0187-0637)

Variations

MTD 786-0187-0637

BRACKET-SHIFT COVE - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

28

MTD 786-0193

Idler Belt Keeper
(Superseded to 786-0193-0637)

Variations

MTD 786-0193-0637

Idler Belt Keeper - POWDER BLACK (0637)

$9.99

$

Usually ships in 3-6 days

0

$9.99

$

Usually ships in 3-6 days

0

29

MTD 634-0106

Wheel Assembly RH 16.0 x 4.6

Variations

MTD 634-0106-0931

No Longer Available WHEEL ASM COMPL 16 - Carlisle Beige (0931)

$

$

Not available

MTD 634-0106-0911

No Longer Available WHEEL ASM - Carlisle Gray (0911)

$

$

Not available

MTD 634-0106-0912

No Longer Available WHEEL ASM - Dico Gray (0912)

$

$

Not available

MTD 634-0106-0941

No Longer Available - Carlisle Yellow (0941)

$

$

Not available

MTD 634-0106-0942

No Longer Available - Dico Yellow (0942)

$

$

Not available

$

$

MTD 634-0107

Wheel Assembly LH 16.0 x 4.6

Variations

MTD 634-0107-0931

No Longer Available - Carlisle Beige (0931)

$

$

Not available

MTD 634-0107-0911

No Longer Available WHEEL ASM - Carlisle Gray (0911)

$

$

Not available

MTD 634-0107-0912

No Longer Available WHEEL ASM - Dico Gray (0912)

$

$

Not available

MTD 634-0107-0941

No Longer Available - Carlisle Yellow (0941)

$

$

Not available

MTD 634-0107-0942

No Longer Available - Dico Yellow (0942)

$

$

Not available

$

$

MTD 734-0808

Tire Only 16.2 x 4.6
(Superseded to 734-0808A)

Variations

MTD 734-0808-0901

Tire, 16.25 X 4.5-8 Tiller Ag - Carlisle (0901)

$123.99

$

Usually ships in 3-6 days

0

MTD 734-0808-0902

Tire, 16.25 X 4.5-8 Tiller Ag - Dico (0902)

$123.99

$

Usually ships in 3-6 days

0

MTD 734-0808-0905

Tire, 16.25 X 4.5-8 Tiller Ag - Duro (0905)

$123.99

$

Usually ships in 3-6 days

0

$123.99

$

Usually ships in 3-6 days

0

30

MTD 634-0108

Wheel Rim Assembly

Variations

MTD 634-0108-0662

Rim Only - OYSTER GRAY (0662)

$

$

Not available

MTD 634-0108-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 634-0108-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

$

$

31

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

32

MTD 711-1017

Clevis Pin

$7.49

$

In Stock, only 1 left!

0

33

MTD 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

34

MTD 710-0382

Hex Bolt 1/2-13 x 5.0

$12.99

$

In Stock, only 2 left!

0

35

MTD 712-0206

Hex Nut 1/2-13

$4.49

$

In Stock, Qty 20+

0

36

MTD 731-1595

Counterweight

$156.99

$

Usually ships in 3-6 days

0

37

MTD 736-0326

Flat Washer .510 ID x 1.0 OD

$4.49

$

In Stock, only 2 left!

0

38

MTD 736-0921

Lock Washer 1/2

$4.49

$

In Stock, Qty 6

0

39

MTD 710-0653

Hex Screw 1/4-20 x .375

$4.49

$

In Stock, Qty 7

0

40

MTD 710-1017

Screw 1/4-14 x .625

$8.49

$

In Stock, Qty 9

0

41

MTD 712-0392

Lock Nut

$6.99

$

In Stock, only 1 left!

0

42

MTD 736-0463

Flat Washer .250 ID x .620 OD

$4.49

$

In Stock, Qty 20+

0

43

MTD 784-0158A

Belt Cover
(Superseded to 784-0158B)

Variations

MTD 784-0158A-0638

COVER-BELT - MTD/TROY-BILT RED (0638)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0498

Belt Cover, Yellow - OLD CUB YELLOW (0498)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0716

Belt Cover, Yellow - CUB YELLOW-99 (0716)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-4021

Belt Cover, Yellow - CUB YELLOW 2 (4021)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0606

COVER-BELT - MAJESTIC ORANGE (0606)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0640

COVER-BELT - CO-OP GREEN (0640)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0650

COVER-BELT - RED METALLIC (0650)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0662

COVER-BELT - OYSTER GRAY (0662)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0665

COVER-BELT - YARDMAN GREEN (0665)

$88.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0691

COVER-BELT - BLACK JACK (0691)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0709

COVER-BELT - MASTERCRAFT GREEN (0709)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-4015

COVER-BELT - FIRE RED (4015)

$95.99

$

Usually ships in 3-6 days

0

$76.99

$

Usually ships in 3-6 days

0

44

MTD 710-0805

Hex Bolt 5/16-18 x 1.5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

45

MTD 736-0242

Bell Washer .340 ID x .872 OD

$4.49

$

In Stock, Qty 20+

0

46

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0
