21AB452A004 - MTD Gold Tiller (2010) Drive System Parts Diagram

Gold Tiller

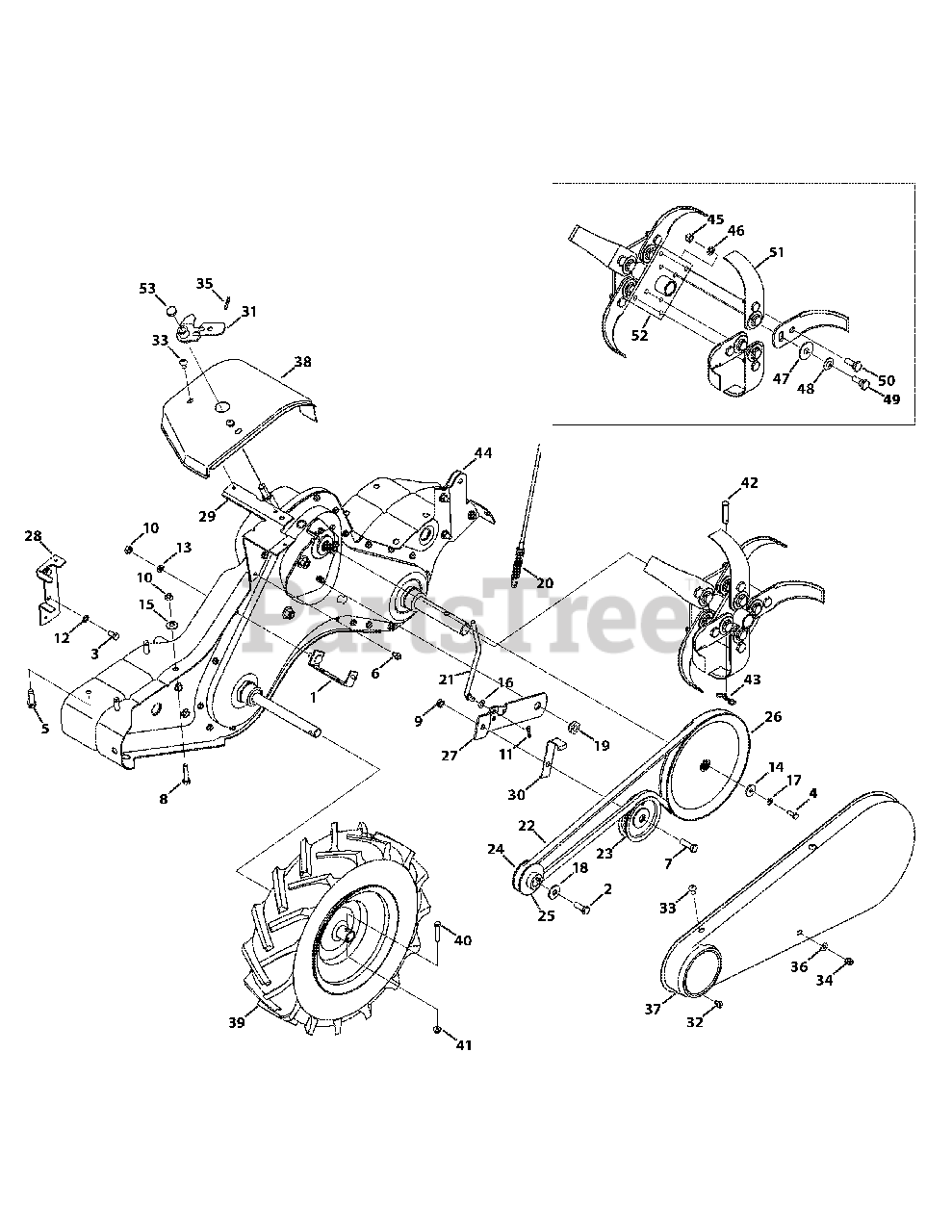

Drive System Parts Diagram

  • Title

1

MTD 686-0111-0637

Belt Cover Bracket Assembly
(Superseded to 686-0111)

$39.99

$

Usually ships in 3-6 days

0

2

MTD 710-1039

Hex Head Screw, 3/8-24 x 1.00

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0237

Hex Head Screw, 5/16-24 x .625

$4.49

$

In Stock, only 1 left!

0

4

MTD 710-0412

Hex Head Screw, 1/4-28 x .75

$5.99

$

In Stock, Qty 9

0

5

MTD 710-0502A

Screw, 3/8-16 x 1.250

$6.99

$

In Stock, only 2 left!

0

6

MTD 710-0599

Screw, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-3005

Hex Head Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 10

0

8

MTD 710-0805

Hex Head Screw, 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

9

MTD 712-0266A

Jamlock Nut, 3/8-16

$3.99

$

In Stock, Qty 11

0

10

MTD 912-3010

Hex Nut, 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

11

MTD 914-0104

Cotter Pin, .072 DIA. x 1.13 LG
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

12

MTD 936-0104

Washer, Lock, 5/16

$4.99

$

Usually ships in 3-6 days

0

13

MTD 936-0119

Washer, Lock, 5/16

$4.99

$

In Stock, Qty 20+

0

14

MTD 936-0176

Washer, Flat, .265 x .938 x .120
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

15

MTD 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

16

MTD 936-0271

Washer, Spring, .317 x .625 x .020

$4.49

$

In Stock, Qty 10

0

17

MTD 936-0329

Washer, Lock, 1/4

$4.49

$

In Stock, Qty 11

0

18

MTD 936-0452

Washer, Bell, .396 x 1.140 x .095
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 5

0

19

MTD 938-0876

Shoulder Nut, 7/16-20
(Superseded to 738-0876A)

$10.99

$

In Stock, Qty 15

0

20

MTD 746-1117

Clutch Cable
(Superseded to 946-1117)

$66.99

$

In Stock, only 1 left!

0

21

MTD 747-1159

Idler Pulley Rod

$26.99

$

Usually ships in 3-6 days

0

22

MTD 954-0434

Belt, 4L x 58.16 LG

$61.99

$

Usually ships in 3-6 days

0

23

MTD 756-0405

Flat Idler Pulley w/ Flanges, 3.75 O.D.

$71.99

$

Usually ships in 3-6 days

0

24

MTD 756-0971

Engine Pulley, Inner Half

$14.99

$

Usually ships in 3-6 days

0

25

MTD 756-0972

Engine Pulley, Outer Half

$16.99

$

Usually ships in 3-6 days

0

26

MTD 756-1162

Input Pulley, 4L x 8.594

$90.99

$

In Stock, only 1 left!

0

27

MTD 786-0064A

Idler Pulley Bracket

$38.99

$

In Stock, only 1 left!

0

28

MTD 786-0185A-0637

Belt Keeper Bracket, B&S 6.5 HP

$16.99

$

Usually ships in 3-6 days

0

29

MTD 786-0187-0637

Shift Cover Bracket

$23.99

$

Usually ships in 3-6 days

0

30

MTD 786-0193-0637

Idler Belt Keeper

$9.99

$

Usually ships in 3-6 days

0

31

MTD 686-0109A

Shift Crank Assembly

$36.99

$

Usually ships in 3-6 days

0

32

MTD 710-0653

Screw, 1/4-20:0.375

$4.49

$

In Stock, Qty 8

0

33

MTD 710-1017

Screw, 1/4-14:0.625

$8.49

$

In Stock, Qty 9

0

34

MTD 712-0392

Lock Nut, Cap, 1/4-28

$6.99

$

In Stock, only 1 left!

0

35

MTD 915-0120

Spiral Pin, 3/16 x 1.00
(Superseded to 715-0120)

$10.99

$

In Stock, only 1 left!

0

36

MTD 936-3020

Washer, Flat, .271x .630 x .065
(Superseded to 736-3020)

$

$

Not available

37

MTD 784-0158A-0662

Belt Cover - Gray
(Superseded to 784-0158B-0691)

$95.99

$

Usually ships in 3-6 days

0

37

MTD 784-0158A-0691

Belt Cover - Black Jack
(Superseded to 784-0158B-0691)

$95.99

$

Usually ships in 3-6 days

0

37

MTD 784-0158A-0638

Belt Cover - Red
(Superseded to 784-0158B-0638)

$95.99

$

Usually ships in 3-6 days

0

38

MTD 784-0208D-0638

Shift Cover - Red

$98.99

$

Usually ships in 3-6 days

0

38

MTD 784-0208D-0691

Shift Cover - Black

$98.99

$

Usually ships in 3-6 days

0

39

MTD 934-04231

Wheel, 16 x 4.6 x 8

$257.99

$

Usually ships in 3-6 days

0

39

MTD 934-04233

Wheel, 14 x 4.5 x 6

$186.99

$

Usually ships in 3-6 days

0

40

MTD 710-0606

Hex Head Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 10

0

41

MTD 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

42

MTD 911-0415

Clevis Pin, .375 x 1.75
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 20+

0

43

MTD 714-04043

Cotter Pin, Bow-Tie

$4.99

$

In Stock, Qty 18

0

44

MTD 986-04074A

Complete Gear Case Assembly
(Superseded to 986-04074E)

$1708.99

$

Usually ships in 3-6 days

0

45

MTD 712-3054

Hexlock Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

0

46

MTD 936-0169

Washer, Lock, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

47

MTD 936-0208

Washer, Flat, .51 x 1.5 x 0.07
(Superseded to 736-0208)

$

$

Not available

48

MTD 936-0253

Washer, Bell, .525 x 1.00 x .050
(Superseded to 736-0253)

$

$

Not available

49

MTD 938-0688

Screw, Shoulder, 3/8-24 x 1/2 x .325

$9.99

$

In Stock, Qty 15

0

50

MTD 938-0689

Screw, Shoulder, 3/8-24 x 1/2 x .180

$8.99

$

In Stock, only 2 left!

0

51

MTD 742-0305A-0637

Articulating Tine

$20.99

$

In Stock, Qty 20+

0

52

MTD 984-0160-0637

Tine Adaptor Assembly
(Superseded to 784-0160-0637)

$115.99

$

In Stock, only 3 left!

0

52

MTD 984-0205A-0637

Tine Assembly

Note: (Includes:712-3054 (x16), 936-0169 (x16), 936-0208 (x8), 936-0253 (x8), 938-0688 (x8), 938-0689 (x8), 742-0305A-0637 (x8) & 784-0160-0637 (x1))

$215.99

$

In Stock, only 2 left!

0

53

MTD 731-07556

Cap

$3.49

$

Usually ships in 3-6 days

0
