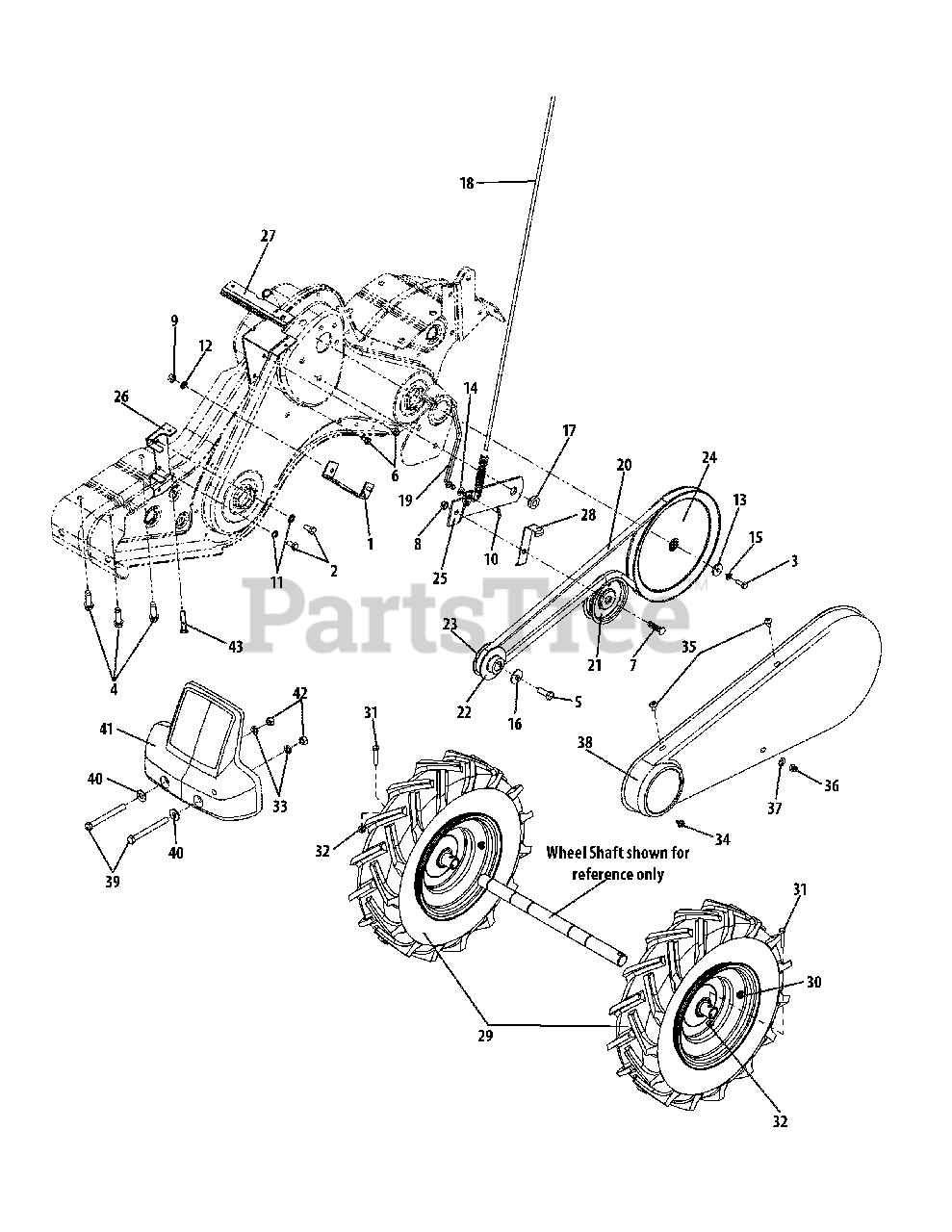

21AB452A004 - MTD Gold Tiller (2008) Drive System & Accessories 450 Parts Diagram

Gold Tiller

Drive System & Accessories 450 Parts Diagram

  • Title

1

MTD 686-0111

Belt Cover Bracket Assembly

Variations

MTD 686-0111-0637

Cover Bracket Assembly - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

2

MTD 710-0237

Hex Bolt, 5/16-24 x .62"

$4.49

$

In Stock, only 1 left!

0

3

MTD 710-0412

Hex Bolt, 1/4-28 x .75"

$5.99

$

In Stock, Qty 9

0

4

MTD 710-0502A

Hex Washer Screw, .3/8-16 x 1.25"

$6.99

$

In Stock, only 2 left!

0

5

MTD 710-0152

Hex Bolt, 3/8-24 x 1.0
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0599

Hex Washer Screw

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0723

Hex Cap Screw,3/8 -16 x 1.25

$4.99

$

In Stock, only 3 left!

0

8

MTD 712-0266

Lock Jam Nut, 3/8-16
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 11

0

9

MTD 712-0267

Hex Nut, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

10

MTD 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

11

MTD 736-0104

Hairpin Clip
(Superseded to 936-0104)

$4.99

$

Usually ships in 3-6 days

0

12

MTD 736-0119

Lock Washer,5/16"
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

MTD 736-0176

Flat Washer, .25 ID x .93 OD

$4.99

$

In Stock, only 4 left!

0

14

MTD 736-0271

Spring Washer, .317 ID x .625 OD
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

15

MTD 736-0329

Lock Washer 1/4" ID
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

16

MTD 736-0452

Bell Washer, .396 ID x 1.14 OD

$4.99

$

In Stock, Qty 5

0

17

MTD 738-0876

Shoulder Nut, 7/16-20
(Superseded to 738-0876A)

$10.99

$

In Stock, Qty 15

0

18

MTD 746-1117

Clutch Cable
(Superseded to 946-1117)

$66.99

$

In Stock, only 1 left!

0

19

MTD 747-1159

Idler Pulley Rod

$26.99

$

Usually ships in 3-6 days

0

20

MTD 754-0434

V-Belt
(Superseded to 954-0434)

$61.99

$

Usually ships in 3-6 days

0

21

MTD 756-0405

Flat Idler w/Flange, 3.75 OD

$71.99

$

Usually ships in 3-6 days

0

22

MTD 756-0971

Outer Engine Pulley Half

$14.99

$

Usually ships in 3-6 days

0

23

MTD 756-0972

Inner Engine Pulley Half

$16.99

$

Usually ships in 3-6 days

0

24

MTD 756-1162

Input Pulley

$90.99

$

In Stock, only 1 left!

0

25

MTD 786-0064A

Idler Bracket

$38.99

$

In Stock, only 1 left!

0

26

MTD 786-0185

Belt Keeper Bracket
(Superseded to 786-0185A-0637)

Variations

MTD 786-0185-0637

Belt Keeper Bracket - POWDER BLACK (0637)

$16.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

27

MTD 786-0187

Shift Cover Bracket
(Superseded to 786-0187-0637)

Variations

MTD 786-0187-0637

BRACKET-SHIFT COVE - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

28

MTD 786-0193

Idler Belt Keeper
(Superseded to 786-0193-0637)

Variations

MTD 786-0193-0637

Idler Belt Keeper - POWDER BLACK (0637)

$9.99

$

Usually ships in 3-6 days

0

$9.99

$

Usually ships in 3-6 days

0

29

MTD 634-04231

Wheel Assembly, 16.0 x 4.6 x 8
(Superseded to 934-04231)

$257.99

$

Usually ships in 3-6 days

0

29

MTD 734-0808

Tire Only, 16.2 x 4.6
(Superseded to 734-0808A)

Note: not shown

Variations

MTD 734-0808-0901

Tire, 16.25 X 4.5-8 Tiller Ag - Carlisle (0901)

$123.99

$

Usually ships in 3-6 days

0

MTD 734-0808-0902

Tire, 16.25 X 4.5-8 Tiller Ag - Dico (0902)

$123.99

$

Usually ships in 3-6 days

0

MTD 734-0808-0905

Tire, 16.25 X 4.5-8 Tiller Ag - Duro (0905)

$123.99

$

Usually ships in 3-6 days

0

$123.99

$

Usually ships in 3-6 days

0

29

MTD 634-04230

Wheel Rim Assembly

Note: not shown

Variations

MTD 634-04230-0499

RIM 8.0" X 3.75" - CUB BEIGE (0499)

$63.99

$

In Stock, only 1 left!

0

MTD 634-04230-0662

RIM ASM 8.0 X 3.7 - OYSTER GRAY (0662)

$88.99

$

Usually ships in 3-6 days

0

MTD 634-04230-0729

RIM ASM - 8 X 3.75 - STORM GRAY (0729)

$88.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

30

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

31

MTD 710-0606

Hex Head Screw, 1/4-20

$5.49

$

In Stock, Qty 10

0

32

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

33

MTD 736-0921

Lock Washer, 1/2

$4.49

$

In Stock, Qty 6

0

34

MTD 710-0653

Hex Screw, 1/4-20 x .375

$4.49

$

In Stock, Qty 8

0

35

MTD 710-1017

Screw, 1/4-14 x .625

$8.49

$

In Stock, Qty 9

0

36

MTD 712-0392

Lock Nut

$6.99

$

In Stock, only 1 left!

0

37

MTD 736-3020

Flat Washer, .271 ID x .630 OD

$6.99

$

In Stock, Qty 9

0

38

MTD 784-0158A

Belt Cover
(Superseded to 784-0158B)

Variations

MTD 784-0158A-0638

COVER-BELT - MTD/TROY-BILT RED (0638)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0498

Belt Cover, Yellow - OLD CUB YELLOW (0498)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0716

Belt Cover, Yellow - CUB YELLOW-99 (0716)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-4021

Belt Cover, Yellow - CUB YELLOW 2 (4021)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0606

COVER-BELT - MAJESTIC ORANGE (0606)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0640

COVER-BELT - CO-OP GREEN (0640)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0650

COVER-BELT - RED METALLIC (0650)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0662

COVER-BELT - OYSTER GRAY (0662)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0665

COVER-BELT - YARDMAN GREEN (0665)

$88.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0691

COVER-BELT - BLACK JACK (0691)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0709

COVER-BELT - MASTERCRAFT GREEN (0709)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-4015

COVER-BELT - FIRE RED (4015)

$95.99

$

Usually ships in 3-6 days

0

$76.99

$

Usually ships in 3-6 days

0

39

MTD 710-0382

Hex Head Screw, 1/2-13 x 5.00

$12.99

$

In Stock, only 2 left!

0

40

MTD 736-0179

Flat Washer, 1/2 x 1.25 x .10

$4.99

$

In Stock, only 2 left!

0

41

MTD 731-1595

Counterweight

$156.99

$

Usually ships in 3-6 days

0

42

MTD 712-0206

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+
