21AA414A752 - Yard Machines Tiller (2005) (Walmart) Drive Parts Diagram

Tiller

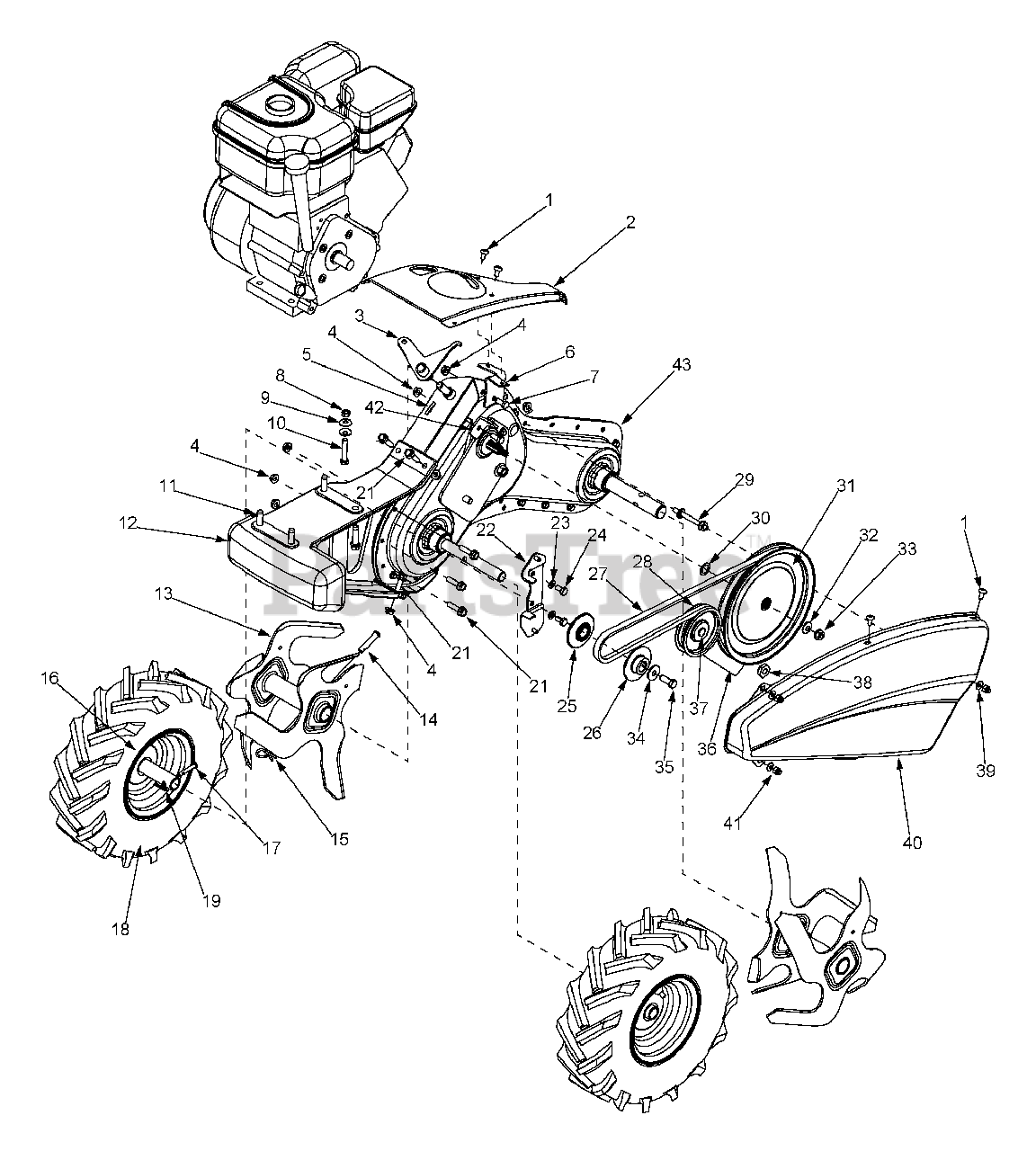

Drive Parts Diagram

  • Title

1

MTD 710-1017

Hex Screw 1/4-20 x.625

$8.49

$

In Stock, Qty 9

0

2

MTD 786-0101B

Shift Cover - Briggs & Stratton

Variations

MTD 786-0101B-0637

COVER-SHIFT - POWDER BLACK (0637)

$63.99

$

Usually ships in 3-6 days

0

MTD 786-0101B-0480

COVER-SHIFT - BRILLIANT GREEN (0480)

$

$

Not available

MTD 786-0101B-0638

COVER-SHIFT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 786-0101B-0662

COVER-SHIFT - OYSTER GRAY (0662)

$

$

Not available

MTD 786-0101B-0665

COVER-SHIFT - YARDMAN GREEN (0665)

$

$

Not available

$63.99

$

Usually ships in 3-6 days

0

MTD 786-0168

Shift Cover - Tecumseh

Variations

MTD 786-0168-0638

COVER-SHIFT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 786-0168-0667

COVER-SHIFT - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

3

MTD 686-0095

Crank Shift Assembly

Variations

MTD 686-0095-0637

SHIFT ASM-CRANK - POWDER BLACK (0637)

$

$

Not available

$

$

4

MTD 712-3004A

Hex Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

MTD 715-0120

Spiral Pin

$10.99

$

In Stock, only 1 left!

0

6

MTD 786-0117

Shift Cover Mounting Bracket

Variations

MTD 786-0117-0637

Shift Cover Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 710-3008

Hex Cap Screw 5/16-18 x.75

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

9

MTD 736-0242

Bell Washer.340 ID x.872 OD

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-3180

Hex Cap Screw 5/16-18 x 1.75

$5.49

$

In Stock, Qty 20+

0

11

MTD 710-1007

Hex Washer Screw 3/8-16 x 1.5

$6.49

$

In Stock, only 1 left!

0

12

MTD 619-0009

Frame Counterweight
(Superseded to 919-0009A)

$

$

Not available

13

MTD 642-0015

Tine Assembly - LH
(Superseded to 642-0015-0637)

Variations

MTD 642-0015-0637

Tine Assembly, LH Black - POWDER BLACK (0637)

$164.99

$

In Stock, Qty 5

0

$164.99

$

In Stock, Qty 5

0

MTD 642-0016

Tine Assembly - RH
(Superseded to 642-0016-0637)

Variations

MTD 642-0016-0637

Tine Assembly, RH Black - POWDER BLACK (0637)

$164.99

$

In Stock, Qty 6

0

$164.99

$

In Stock, Qty 6

0

14

MTD 711-0415

Clevis Pin

$4.99

$

In Stock, Qty 20+

0

15

MTD 714-0149B

Cotter Pin

$4.49

$

In Stock, Qty 18

0

16

MTD 634-0240

Complete Wheel Ass'y - RH (14")

$

$

Not available

MTD 634-0241

Complete Wheel Ass'y - LH (14")

$

$

Not available

MTD 634-0238

Complete Wheel Ass'y - RH (16")

$

$

Not available

MTD 634-0239

Complete Wheel Ass'y - LH (16")

$

$

Not available

17

MTD 711-1017

Clevis Pin

$7.49

$

In Stock, only 1 left!

0

18

MTD 734-1796

Tire Only (14")
(Superseded to 734-1796A)

Variations

MTD 734-1796-0901

Tiller Ag Tire - Carlisle (0901)

$147.99

$

Usually ships in 3-6 days

0

$147.99

$

Usually ships in 3-6 days

0

MTD 734-0808

Tire Only (16")
(Superseded to 734-0808A)

Variations

MTD 734-0808-0901

Tire, 16.25 X 4.5-8 Tiller Ag - Carlisle (0901)

$123.99

$

Usually ships in 3-6 days

0

MTD 734-0808-0902

Tire, 16.25 X 4.5-8 Tiller Ag - Dico (0902)

$123.99

$

Usually ships in 3-6 days

0

MTD 734-0808-0905

Tire, 16.25 X 4.5-8 Tiller Ag - Duro (0905)

$123.99

$

Usually ships in 3-6 days

0

$123.99

$

Usually ships in 3-6 days

0

19

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

21

MTD 710-1090

Flange Screw 5/16-18 x 1.25

$3.99

$

Usually ships in 3-6 days

0

22

MTD 686-0031A

Belt Keeper Bracket Ass'y
(Superseded to 686-0031A-0637)

Variations

MTD 686-0031A-0637

Belt Keeper Bracket Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

24

MTD 710-0237

Hex Cap Screw 5/16-24 x.625

$4.49

$

In Stock, only 1 left!

0

25

MTD 756-0971

Inner Pulley Half

$14.99

$

Usually ships in 3-6 days

0

26

MTD 756-0972

Outer Pulley Half

$16.99

$

Usually ships in 3-6 days

0

27

MTD 754-0438

V-Belt
(Superseded to 954-0438)

$53.99

$

In Stock, only 1 left!

0

28

MTD 756-0405

Flat Idler

$71.99

$

Usually ships in 3-6 days

0

29

MTD 738-0899

Bolt 5/16-18 x 1/4-28 x 2.35

$

$

Not available

30

MTD 736-0256

Flat Washer.635 ID x.930 OD
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

31

MTD 756-0634

Flat Pulley

$86.99

$

Usually ships in 3-6 days

0

32

MTD 736-0105

Spring Washer.401 ID x.870 OD

$4.49

$

In Stock, Qty 20+

0

33

MTD 712-0379

Flange Lock Nut 3/8-24

$4.99

$

Usually ships in 3-6 days

0

34

MTD 736-0452

Bell Washer.396 ID x 1.140 OD

$4.99

$

In Stock, Qty 5

0

35

MTD 710-0152

Hex Cap Screw 3/8-24 x 1.0
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

36

MTD 786-0080

Idler Bracket
(Superseded to 786-0080-0637)

Variations

MTD 786-0080-0637

BRACKET-IDLER - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

37

MTD 710-0723

Hex Cap Screw 3/8-16 x 1.25

$4.99

$

In Stock, only 3 left!

0

38

MTD 738-0876

Shoulder Nut 7/16-20
(Superseded to 738-0876A)

$10.99

$

In Stock, Qty 15

0

39

MTD 736-3020

Flat Washer.271 ID x.630 OD

$6.99

$

In Stock, Qty 9

0

40

MTD 786-0100

Belt Cover

Variations

MTD 786-0100-0480

COVER BELT - BRILLIANT GREEN (0480)

$

$

Not available

MTD 786-0100-0637

COVER-BELT - POWDER BLACK (0637)

$

$

Not available

MTD 786-0100-0638

COVER-BELT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 786-0100-0640

COVER-BELT - CO-OP GREEN (0640)

$

$

Not available

MTD 786-0100-0648

COVER-BELT - TECH GRAY (0648)

$

$

Not available

MTD 786-0100-0662

COVER-BELT - OYSTER GRAY (0662)

$

$

Not available

MTD 786-0100-0667

COVER-BELT - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

41

MTD 712-0392

Hex Lock Nut 1/4

$6.99

$

In Stock, only 1 left!

0

42

MTD 786-0107

Cable Bracket

$

$

Not available

43

MTD 686-0094

Gear Case Assembly
(Superseded to 753-05328)

$

$

Not available
