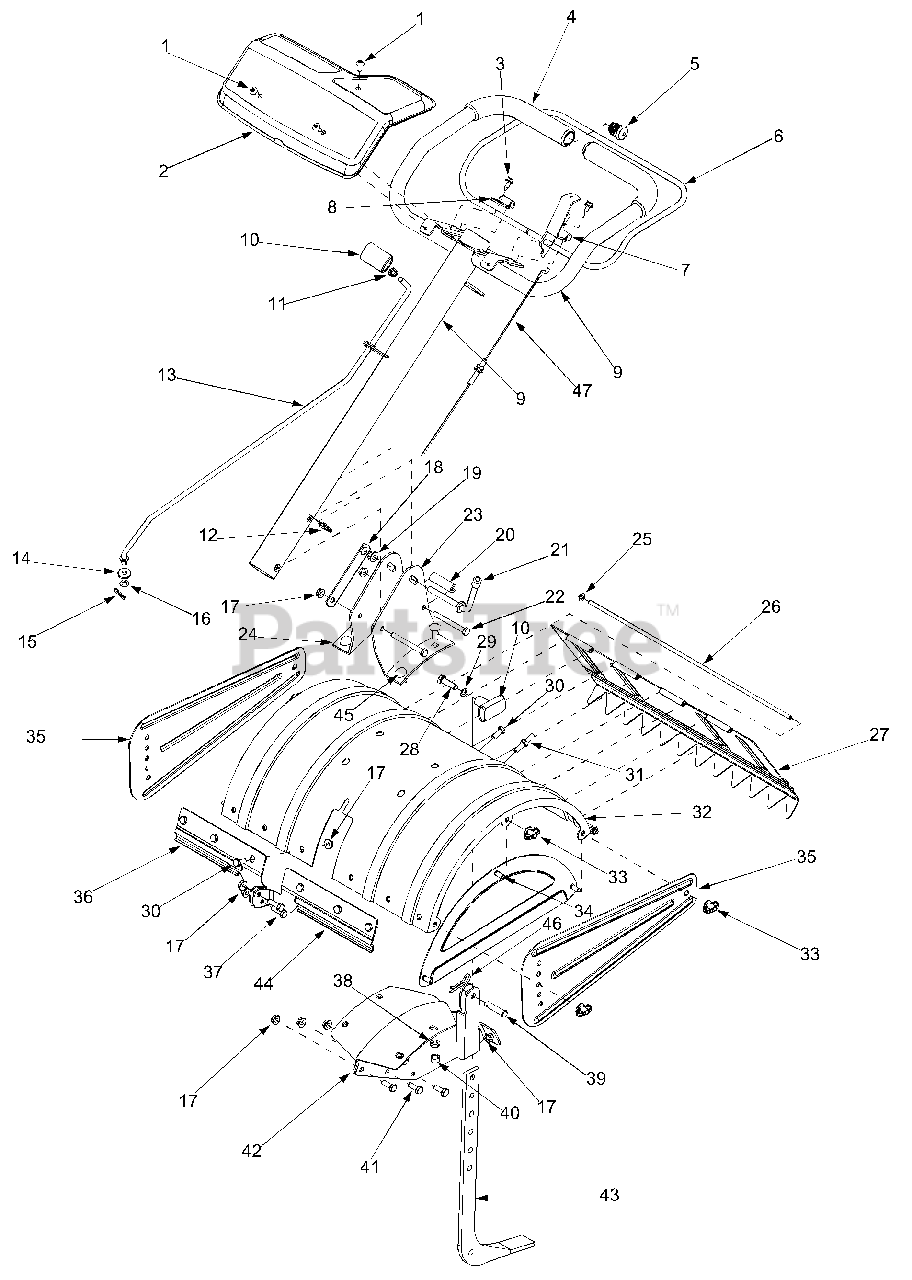

21AA412C131 - Huskee Tiller (2003) (Tractor Supply) General Assembly Parts Diagram

Tiller

General Assembly Parts Diagram

  • Title

1

MTD 710-1017

Tap Screw 1/4-14 x.625

$8.49

$

In Stock, Qty 9

0

2

MTD 786-0131

Handle Cover w/o Throttle

Variations

MTD 786-0131-0480

COVER-HANDLE - BRILLIANT GREEN (0480)

$

$

Not available

MTD 786-0131-0637

COVER-HANDLE - POWDER BLACK (0637)

$

$

Not available

MTD 786-0131-0638

COVER-HANDLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 786-0131-0650

COVER-HANDLE - RED METALLIC (0650)

$

$

Not available

MTD 786-0131-0662

COVER-HANDLE - OYSTER GRAY (0662)

$

$

Not available

MTD 786-0131-0665

COVER-HANDLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 786-0131-0686

COVER-HANDLE - SIMPLICITY ORANGE (0686)

$

$

Not available

$

$

3

MTD 710-0896

Hex Washer Screw 1/4-14 x.625

$4.49

$

In Stock, Qty 20+

0

4

MTD 720-0278A

Foam Grip

$22.99

$

In Stock, only 3 left!

0

5

MTD 735-0246

End Plug
(Superseded to 735-0246A)

$5.99

$

Usually ships in 3-6 days

0

6

MTD 647-0014

Clutch Control Assembly

Variations

MTD 647-0014-0483

CONTROL ASSY-CLUTCH - CHARCOAL GRAY (0483)

$

$

Not available

MTD 647-0014-0498

CONTROL ASSY-CLUTCH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 647-0014-0637

CONTROL ASSY-CLUTCH - POWDER BLACK (0637)

$

$

Not available

MTD 647-0014-0638

CONTROL ASSY-CLUTCH - MTD/TROY-BILT RED (0638)

$

$

Not available

$82.99

$

Usually ships in 3-6 days

0

7

MTD 786-0118

Return Bracket - LH
(Superseded to 786-0118-0637)

Variations

MTD 786-0118-0637

BRACKET RETAINING - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

8

MTD 786-0098

Return Bracket - RH
(Superseded to 786-0098-0637)

Variations

MTD 786-0098-0637

BRACKET RETAINING - POWDER BLACK (0637)

$27.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

9

MTD 649-0017

Handle Assembly

Variations

MTD 649-0017-0638

HANDLE ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 649-0017-0648

HANDLE ASM - TECH GRAY (0648)

$

$

Not available

MTD 649-0017-0650

HANDLE ASM - RED METALLIC (0650)

$

$

Not available

MTD 649-0017-0665

HANDLE ASSY - YARDMAN GREEN (0665)

$

$

Not available

MTD 649-0017-0667

HANDLE ASSY - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

10

MTD 720-0210A

Knob

$15.99

$

In Stock, only 2 left!

0

11

MTD 712-3008

Jam Nut 3/8-16

$4.99

$

In Stock, Qty 19

0

12

MTD 726-0330

Cable Clip

$

$

Not available

13

MTD 747-0902

Shift Control

$

$

Not available

14

MTD 735-0127

Rubber Washer.33 ID x.87 OD

$6.99

$

Usually ships in 3-6 days

0

15

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

16

MTD 736-0204

Flat Washer.344 ID x.62 OD

$4.49

$

In Stock, Qty 6

0

17

MTD 712-3004A

Hex Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

MTD 784-0191

Retainer Bracket

$7.49

$

Usually ships in 3-6 days

0

19

MTD 712-0379

Flange Lock Nut 3/8-24

$4.99

$

Usually ships in 3-6 days

0

20

MTD 750-0885A

Spacer.322 ID x.625 OD

$11.99

$

Usually ships in 3-6 days

0

21

MTD 784-0190

Adjustable Crank Handle

$24.99

$

Usually ships in 3-6 days

0

22

MTD 710-0189

Hex Screw 5/16-18 x 3.0

$6.49

$

In Stock, Qty 5

0

23

MTD 786-0109

Handle Mounting Bracket - LH

Variations

MTD 786-0109-0637

BRACKET HANDLE LH - POWDER BLACK (0637)

$

$

Not available

MTD 786-0109-0638

BRACKET HANDLE LH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 786-0109-0665

BRACKET HANDLE LH - YARDMAN GREEN (0665)

$

$

Not available

$

$

24

MTD 786-0108

Handle Mounting Bracket - RH

Variations

MTD 786-0108-0637

BRACKET HANDLE RH - POWDER BLACK (0637)

$

$

Not available

MTD 786-0108-0638

BRACKET HANDLE RH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 786-0108-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 786-0108-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

$

$

25

MTD 726-0106

Cap Nut

$3.99

$

Usually ships in 3-6 days

0

26

MTD 747-0432

Rod

$13.99

$

Usually ships in 3-6 days

0

27

MTD 786-0113

Rear Tine Shield Flap

Variations

MTD 786-0113-0498

Rear Tine Shield - OLD CUB YELLOW (0498)

$90.99

$

In Stock, only 4 left!

0

MTD 786-0113-0638

SHIELD-REAR TINE - MTD/TROY-BILT RED (0638)

$90.99

$

Usually ships in 3-6 days

0

MTD 786-0113-0716

Rear Tine Shield - CUB YELLOW-99 (0716)

$90.99

$

In Stock, only 4 left!

0

MTD 786-0113-0483

USE 786-0113A SHIELD-REAR TIN - CHARCOAL GRAY (0483)

$73.99

$

Usually ships in 3-6 days

0

MTD 786-0113-0637

USE 786-0113A SHIELD-REAR TIN - POWDER BLACK (0637)

$73.99

$

Usually ships in 3-6 days

0

MTD 786-0113-0650

SHIELD-REAR TINE - RED METALLIC (0650)

$90.99

$

Usually ships in 3-6 days

0

MTD 786-0113-0665

SHIELD-REAR TINE - YARDMAN GREEN (0665)

$73.99

$

Usually ships in 3-6 days

0

MTD 786-0113-0709

SHIELD-REAR TINE - MASTERCRAFT GREEN (0709)

$83.99

$

Usually ships in 3-6 days

0

MTD 786-0113-4015

REAR TINE SHIELD - FIRE RED (4015)

$83.99

$

Usually ships in 3-6 days

0

MTD 786-0113-0606

No Longer Available SHIELD-TIN - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 786-0113-0662

No Longer Available SHIELD-TIN - OYSTER GRAY (0662)

$

$

Not available

$68.99

$

Usually ships in 3-6 days

0

28

MTD 710-3005

Hex Cap Screw 3/8-16 x 1.25

$3.99

$

In Stock, Qty 9

0

29

MTD 736-0117

Flat Washer.375 ID x.620 OD
(Superseded to 936-0117)

$7.49

$

Usually ships in 3-6 days

0

30

MTD 710-3008

Hex Cap Screw 5/16-18 x.75

$4.49

$

In Stock, Qty 20+

0

31

MTD 738-0849

Hex Screw 5/16-18 x.75
(Superseded to 938-0849)

$10.99

$

Usually ships in 3-6 days

0

32

MTD 786-0085

Tine Shield
(Superseded to 786-0085A)

Variations

MTD 786-0085-0480

SHIELD-TINE 410 - BRILLIANT GREEN (0480)

$

$

Not available

MTD 786-0085-0637

SHIELD-TINE 410 - POWDER BLACK (0637)

$

$

Not available

MTD 786-0085-0638

SHIELD-TINE 410 - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 786-0085-0648

Tine Shield - TECH GRAY (0648)

$

$

Not available

MTD 786-0085-0650

SHIELD-TINE 410 - RED METALLIC (0650)

$

$

Not available

MTD 786-0085-0662

No Longer Available SHIELD-TIN - OYSTER GRAY (0662)

$

$

Not available

MTD 786-0085-0665

SHIELD-TINE 410 - YARDMAN GREEN (0665)

$

$

Not available

$

$

33

MTD 712-0421

Wing Nut

$6.99

$

In Stock, Qty 20+

0

34

MTD 686-0044A

End Cover Assembly
(Superseded to 686-0044B)

Variations

MTD 686-0044A-0638

COVER ASM-END - MTD/TROY-BILT RED (0638)

$84.99

$

Usually ships in 3-6 days

0

MTD 686-0044A-0709

COVER ASM-END - MASTERCRAFT GREEN (0709)

$78.99

$

Usually ships in 3-6 days

0

MTD 686-0044A-0716

Cover Assembly, End Yellow - CUB YELLOW-99 (0716)

$84.99

$

Usually ships in 3-6 days

0

MTD 686-0044A-0480

COVER ASM-END - BRILLIANT GREEN (0480)

$84.99

$

Usually ships in 3-6 days

0

MTD 686-0044A-0483

COVER ASM-END - CHARCOAL GRAY (0483)

$84.99

$

Usually ships in 3-6 days

0

MTD 686-0044A-0637

COVER ASM-END - POWDER BLACK (0637)

$84.99

$

Usually ships in 3-6 days

0

MTD 686-0044A-0648

COVER ASM-END - TECH GRAY (0648)

$78.99

$

Usually ships in 3-6 days

0

MTD 686-0044A-0650

COVER ASM-END - RED METALLIC (0650)

$78.99

$

Usually ships in 3-6 days

0

MTD 686-0044A-0662

COVER ASM-END - OYSTER GRAY (0662)

$84.99

$

Usually ships in 3-6 days

0

MTD 686-0044A-4015

END COVER ASSEMBLY (FIRE RED) - FIRE RED (4015)

$67.99

$

Usually ships in 3-6 days

0

$67.99

$

Usually ships in 3-6 days

0

35

MTD 786-0090

Side Shield
(Superseded to 786-0090A)

Variations

MTD 786-0090-0716

Side Shield - CUB YELLOW-99 (0716)

$36.99

$

Usually ships in 3-6 days

0

MTD 786-0090-0480

SHIELD-SIDE - BRILLIANT GREEN (0480)

$36.99

$

Usually ships in 3-6 days

0

MTD 786-0090-0483

SHIELD-SIDE - CHARCOAL GRAY (0483)

$36.99

$

Usually ships in 3-6 days

0

MTD 786-0090-0637

SHIELD-SIDE - POWDER BLACK (0637)

$36.99

$

Usually ships in 3-6 days

0

MTD 786-0090-0638

SHIELD-SIDE - MTD/TROY-BILT RED (0638)

$36.99

$

Usually ships in 3-6 days

0

MTD 786-0090-0648

SHIELD-SIDE - TECH GRAY (0648)

$29.99

$

Usually ships in 3-6 days

0

MTD 786-0090-0650

SHIELD-SIDE - RED METALLIC (0650)

$33.99

$

Usually ships in 3-6 days

0

MTD 786-0090-0662

SHIELD-SIDE - OYSTER GRAY (0662)

$33.99

$

Usually ships in 3-6 days

0

MTD 786-0090-0665

SHIELD-SIDE - YARDMAN GREEN (0665)

$29.99

$

Usually ships in 3-6 days

0

MTD 786-0090-4015

SHIELD-SIDE - FIRE RED (4015)

$33.99

$

Usually ships in 3-6 days

0

MTD 786-0090-0629

SHIELD-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 786-0090-0709

No Longer Available SHIELD-SID - MASTERCRAFT GREEN (0709)

$

$

Not available

$29.99

$

Usually ships in 3-6 days

0

36

MTD 786-0076

Shield Bracket RH
(Superseded to 786-0076-0637)

Variations

MTD 786-0076-0637

BRACKET-SHIELD TIN - POWDER BLACK (0637)

$67.99

$

Usually ships in 3-6 days

0

$67.99

$

Usually ships in 3-6 days

0

37

MTD 710-0376

Hex Cap Screw 5/16-18 x 1.0

$3.99

$

In Stock, Qty 5

0

38

MTD 736-0169

Lock Washer 3/8

$3.99

$

In Stock, Qty 20+

0

39

MTD 711-0415

Clevis Pin

$4.99

$

In Stock, Qty 18

0

40

MTD 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, only 2 left!

0

41

MTD 710-3038

Hex Cap Screw 5/16-18 x.875

$4.99

$

In Stock, only 3 left!

0

42

MTD 686-0043A

Shield Tine Bracket Assembly

Variations

MTD 686-0043A-0480

BRACKET ASSY TINE - BRILLIANT GREEN (0480)

$

$

Not available

MTD 686-0043A-0637

BRACKET ASSY TINE - POWDER BLACK (0637)

$

$

Not available

MTD 686-0043A-0648

BRACKET ASSY TINE - TECH GRAY (0648)

$

$

Not available

$

$

43

MTD 786-0120

Depth Stake
(Superseded to 786-0120-0637)

Variations

MTD 786-0120-0637

Depth Bar Assembly - POWDER BLACK (0637)

$66.99

$

In Stock, only 1 left!

0

$66.99

$

In Stock, only 1 left!

0

44

MTD 786-0077

Shield Bracket - LH
(Superseded to 786-0077-0637)

Variations

MTD 786-0077-0637

BRACKET-SHIELD TIN - POWDER BLACK (0637)

$71.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

45

MTD 710-3097

Carriage Bolt 3/8-16 x 1.0

$6.99

$

In Stock, Qty 5

0

46

MTD 714-0147

Cotter Pin

$4.99

$

In Stock, Qty 6

0

47

MTD 746-0916

Clutch Cable
(Superseded to 946-0916)

$57.99

$

Usually ships in 3-6 days

0
