21AA40M7752 - Yard Machines Tiller (2015) Handle & Tine Shield Parts Diagram

Tiller

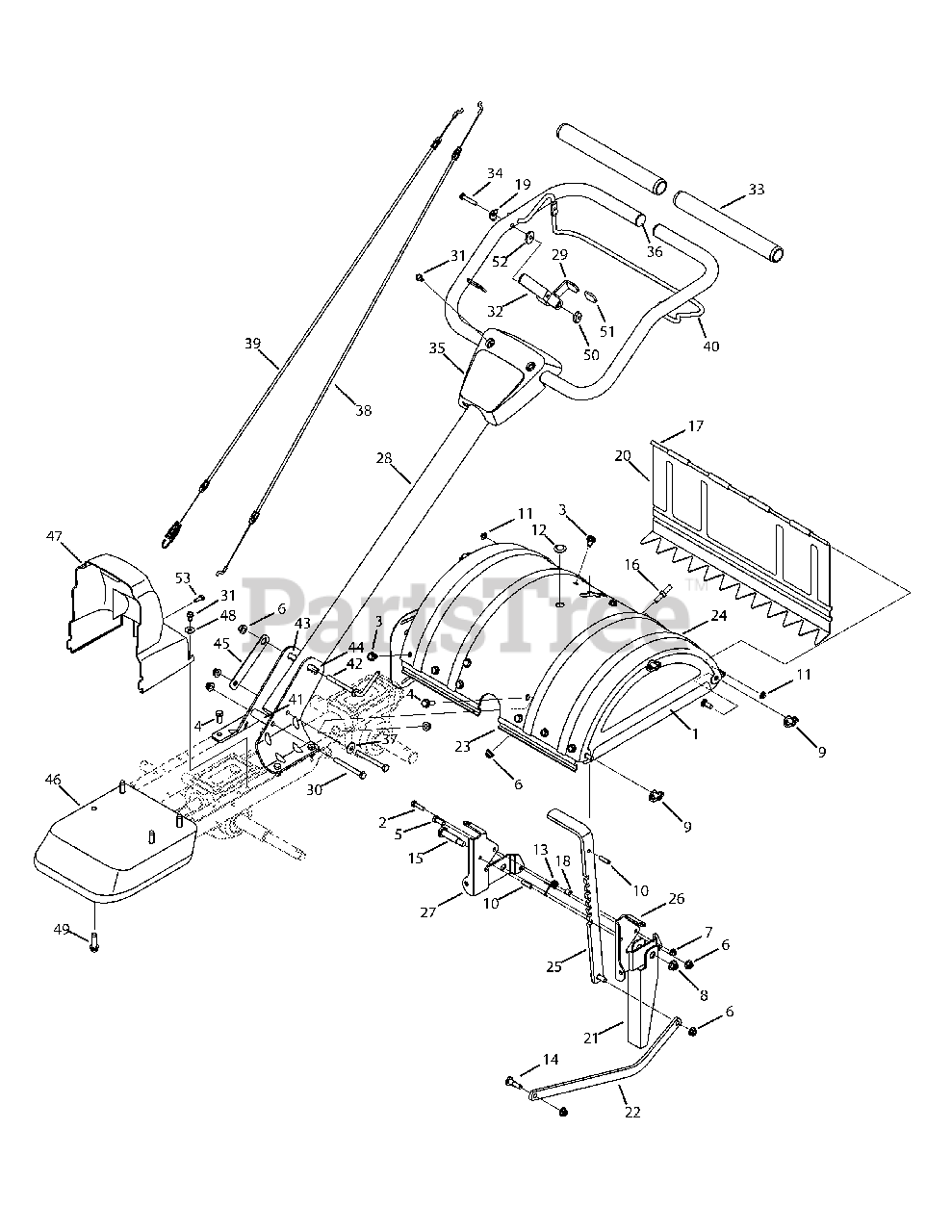

Handle & Tine Shield Parts Diagram

  • Title
1

MTD 686-0044B-0638

End Cover Assembly

$84.99

$

Usually ships in 3-6 days

0

2

MTD 710-0597

Hex Head Screw, 1/4-20 x 1

$3.99

$

In Stock, Qty 13

0

3

MTD 710-0604A

Hex Head Screw, 5/16-18 x 625

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1238

Hex Head Screw, 5/16-18 x 875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-3008

Hex Head Screw, 5/16-18 x 75

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-04063

Hex Flange Top L-Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-04064

Nylon Hex Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-0421

Wing Nut, 5/16-18

$6.99

$

In Stock, Qty 20+

0

10

MTD 715-0108

Spirol Pin

$4.99

$

In Stock, Qty 15

0

11

MTD 926-0106

Cap Nut, 1/4 Rod
(Superseded to 726-0106)

$

$

Not available

12

MTD 731-05512

Hole Plug

$3.99

$

Usually ships in 3-6 days

0

13

MTD 732-04320

Torsion Spring

$4.49

$

In Stock, Qty 11

0

14

MTD 738-04320

Shoulder Screw, 405 x 435 5/16-18

$5.49

$

In Stock, only 2 left!

0

15

MTD 938-0533

Shoulder Screw, 498 x 1635
(Superseded to 738-0533)

$7.99

$

Usually ships in 3-6 days

0

16

MTD 938-0849

Stop Screw

$10.99

$

Usually ships in 3-6 days

0

17

MTD 747-0432

Tiller Flap Rod

$13.99

$

Usually ships in 3-6 days

0

18

MTD 750-05349

Spacer

$3.99

$

Usually ships in 3-6 days

0

19

MTD 936-0451

Saddle Washer, 320 x 930 x 060
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

20

MTD 786-0113A-0638

Rear Tine Shield

$90.99

$

Usually ships in 3-6 days

0

21

MTD 786-04092-0638

Reverse Stop Arm

$27.99

$

Usually ships in 3-6 days

0

22

$36.99

$

In Stock, only 1 left!

0

23

MTD 786-04352A-0638

Tine Shield Mounting Bracket

$32.99

$

Usually ships in 3-6 days

0

24

MTD 786-04355A-0638

Tine Shield

$81.99

$

Usually ships in 3-6 days

0

25

MTD 786-04356A-0638

Adjustable Depth Bar

$34.99

$

Usually ships in 3-6 days

0

26

MTD 786-04363-0638

Tail Bracket, LH

$24.99

$

In Stock, only 1 left!

0

27

MTD 786-04364-0638

Tail Bracket, RH

$24.99

$

In Stock, only 1 left!

0

28

MTD 649-04098A-0638

Upper Handle Assembly
(Superseded to 649-04098B-0638)

$100.99

$

Usually ships in 3-6 days

0

29

MTD 686-04135-0638

Reverse Handle Assembly

$25.99

$

Usually ships in 3-6 days

0

30

MTD 710-0189

Hex Head Screw, 5/16-18 x 300

$6.49

$

In Stock, Qty 5

0

31

MTD 710-0599

Self-Tapping Screw, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

32

MTD 731-04735

Handle Select

$20.99

$

In Stock, only 1 left!

0

33

MTD 720-0278A

Foam Handle Grip

$22.99

$

In Stock, only 3 left!

0

34

MTD 710-3288

Hex Head Screw, 1/4-20 x 162

$6.99

$

In Stock, Qty 12

0

35

MTD 731-06253A

Handle Cover
(Superseded to 731-06253B)

$23.99

$

Usually ships in 3-6 days

0

36

MTD 735-04105

Plug End
(Superseded to 735-04105A)

$5.99

$

Usually ships in 3-6 days

0

37

MTD 736-0242

Bell Washer, 340 x 872 x 060

$4.49

$

In Stock, Qty 20+

0

38

MTD 946-04504

Reverse Cable

$33.99

$

In Stock, only 4 left!

0

39

MTD 946-04506

Forward Cable

$36.99

$

In Stock, Qty 6

0

40

MTD 747-04789A-0637

Clutch Bail

$29.99

$

Usually ships in 3-6 days

0

41

MTD 750-0885A

Spacer, 322 x 625 x 200

$11.99

$

Usually ships in 3-6 days

0

42

MTD 786-0340B

Handle Crank

$19.99

$

Usually ships in 3-6 days

0

43

MTD 786-04344-0638

Handle Bracket, RH

$34.99

$

Usually ships in 3-6 days

0

44

MTD 786-04345-0638

Handle Bracket, LH

$34.99

$

Usually ships in 3-6 days

0

45

MTD 786-04358

Retainer Nut Bracket

$10.99

$

Usually ships in 3-6 days

0

46

MTD 786-04360-0638

Front Bumper

$51.99

$

Usually ships in 3-6 days

0

47

MTD 631-05252

Belt Cover

$43.99

$

Usually ships in 3-6 days

0

48

MTD 736-0173

Flat Washer, 28 x 74 x 063

$4.49

$

In Stock, Qty 20+

0

49

MTD 710-0502A

SEMS Screw, 3/8-16

$6.99

$

In Stock, only 2 left!

0

50

MTD 738-0440

Spacer, 375 x 165

$5.99

$

In Stock, only 4 left!

0

51

MTD 920-04173

Reverse Handle Grip

$4.49

$

In Stock, only 3 left!

0

52

MTD 936-0176

Flat Washer, 265 x 938 x 120
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

53

MTD 710-0896

Self Tapping Screw, 1/4-14 x 625

$4.49

$

In Stock, Qty 20+

0
