21AA40M1052 - Yard Machines Tiller (2011) (Walmart) Transmission 400 Series Parts Diagram

Tiller

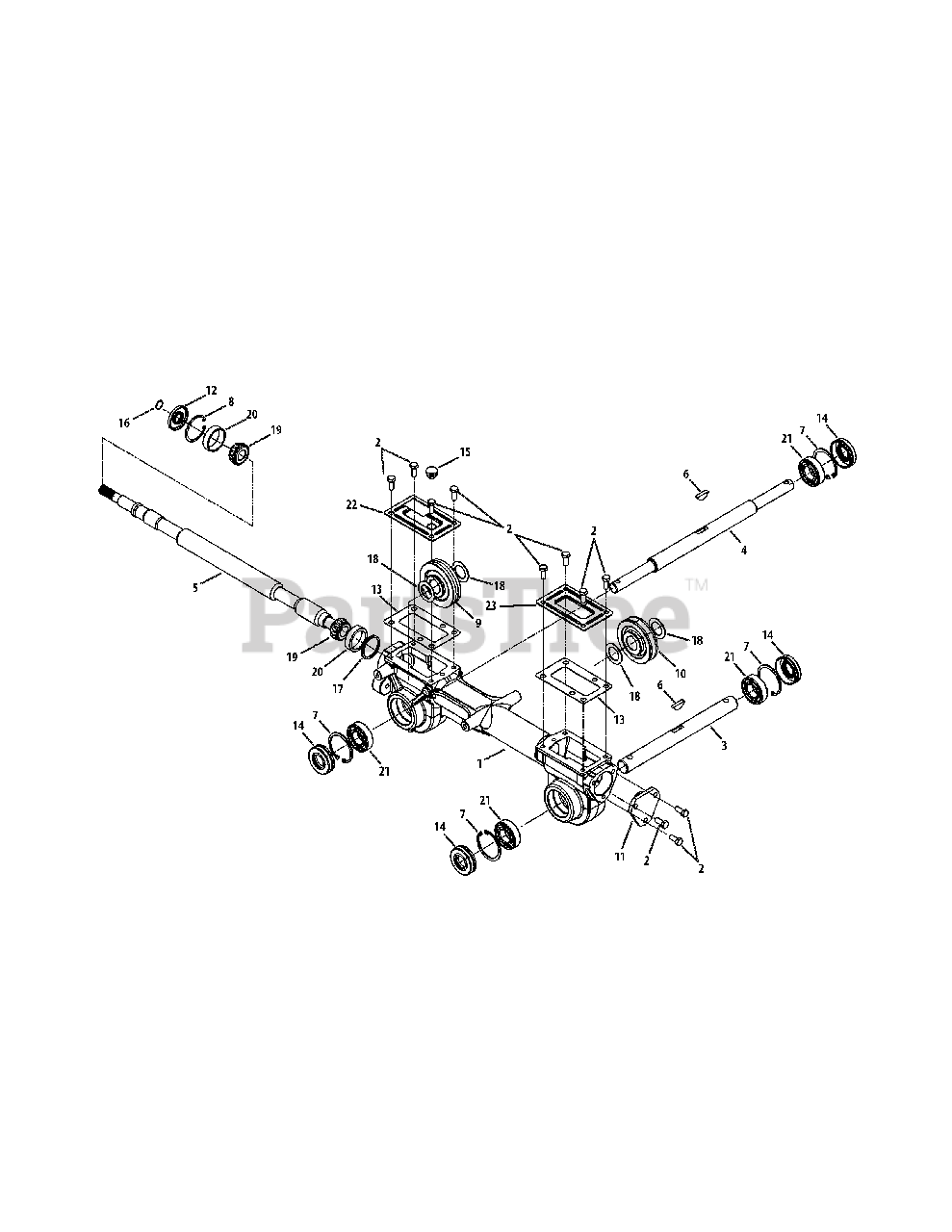

Transmission 400 Series Parts Diagram

  • Title
1

MTD 919-04184A

Housing, Transmission

$229.99

$

Usually ships in 3-6 days

0

2

MTD 710-3008

Hex Screw, 5/16-18, .75, Gr5

$4.49

$

In Stock, Qty 20+

0

3

MTD 911-04844

Shaft, Tiller

$84.99

$

In Stock, only 2 left!

0

4

MTD 911-04854

Shaft, Wheel

$71.99

$

Usually ships in 3-6 days

0

5

MTD 911-05028

Shaft, Worm

$122.99

$

Usually ships in 3-6 days

0

6

MTD 714-04059

Key, Hi Pro .25 x 1.062

$6.99

$

In Stock, Qty 8

0

7

MTD 716-0204

Retaining Ring

$6.99

$

In Stock, only 2 left!

0

8

MTD 716-04102

Retaining Ring, Int

$4.49

$

In Stock, Qty 20+

0

9

MTD 917-04380

Worm Gear, 61t, RH

$157.99

$

In Stock, only 1 left!

0

10

MTD 917-04381

Worm Gear, 30t, LH

$145.99

$

In Stock, only 3 left!

0

11

MTD 918-04435

Bearing Cover

$22.99

$

Usually ships in 3-6 days

0

12

MTD 921-04030

Seal, Oil, .750 Shaft x 1.783 Bore

$12.99

$

In Stock, Qty 20+

0

13

MTD 921-04229

Gasket, Gear Housing

$6.99

$

In Stock, Qty 20+

0

14

MTD 721-04232

Seal, Oil, 1.00 Shaft x 2.00 Bore

$16.99

$

In Stock, Qty 11

0

15

MTD 721-04271

Rubber Plug, Oil

$5.49

$

In Stock, Qty 11

0

16

MTD 732-0614

Wire Ring

$6.49

$

In Stock, only 2 left!

0

17

MTD 736-04305

Washer, Flat, 1.50 x 1.75 x .062

$3.99

$

In Stock, Qty 16

0

17

MTD 736-04306

Washer, Flat, 1.50 x 1.75 x .005

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-04307

Washer, Flat, 1.50 x 1.75 x .03

$4.49

$

In Stock, only 3 left!

0

17

MTD 736-04308

Washer, Flat, 1.50 x 1.75 x .010

$4.49

$

In Stock, Qty 20+

0

18

MTD 736-0745

Washer, Flat, 1.010 x 1.56 x .060

$12.99

$

Usually ships in 3-6 days

0

19

MTD 941-04298

Cone Bearing

$16.99

$

In Stock, Qty 19

0

20

MTD 941-04299

Bearing Cup

$6.99

$

In Stock, Qty 20+

0

21

MTD 741-3114

Ball Bearing

$26.99

$

In Stock, Qty 20+

0

22

MTD 786-04366

Cover, Transmission

$21.99

$

Usually ships in 3-6 days

0

23

MTD 786-04392

Cover, Transmission
(Superseded to 786-04392-0637)

$19.99

$

Usually ships in 3-6 days

0

MTD 918-04815A

Transmission Assembly

Note: Not shown

$911.99

$

Usually ships in 3-6 days

0
