21AA40M1000 - Yard Machines Tiller (2011) Tine & Drive 400 Series Parts Diagram

Tiller

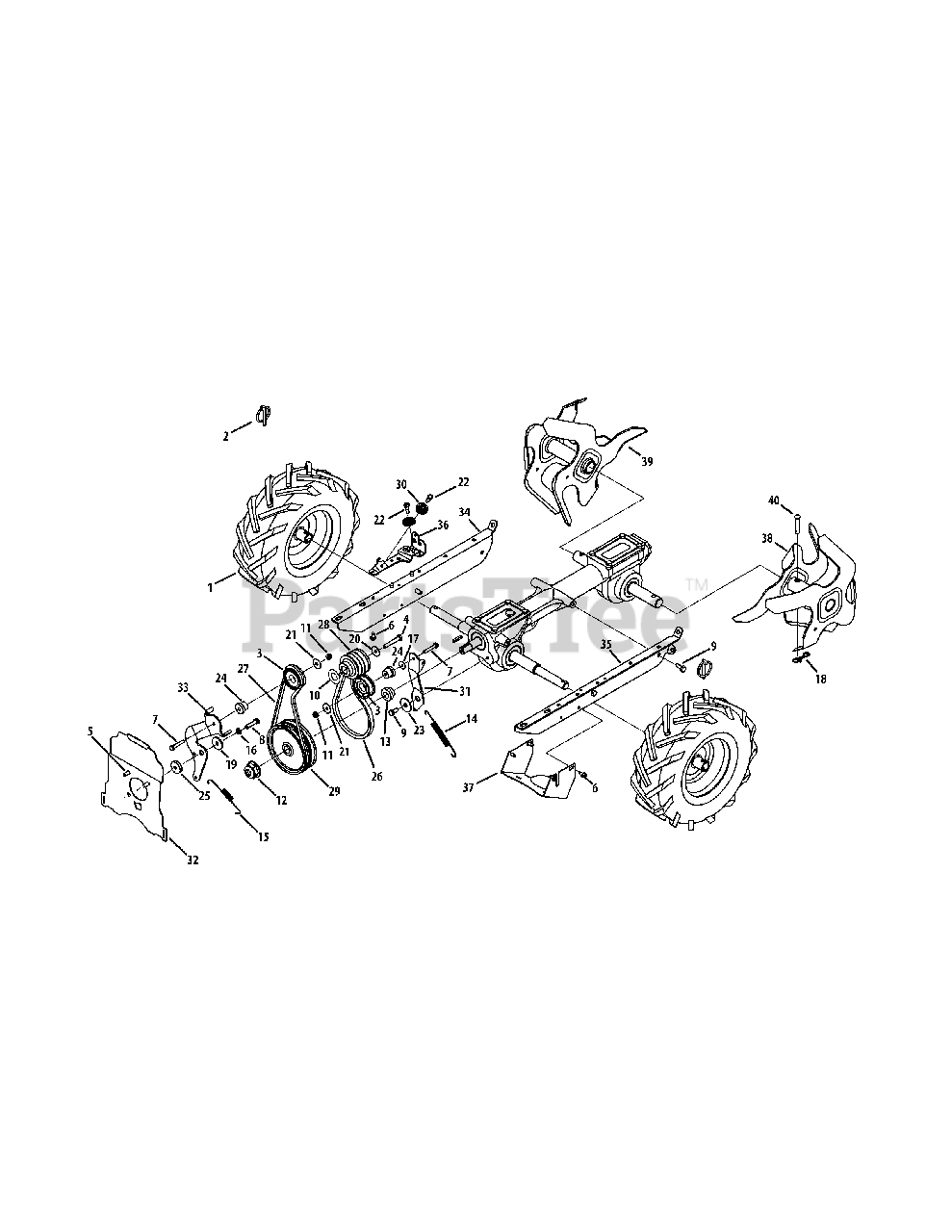

Tine & Drive 400 Series Parts Diagram

  • Title

1

MTD 934-04232

Wheel Assy., 13 x 5 x 6 (B, C)

$172.99

$

In Stock, only 3 left!

0

2

MTD 714-0143A

Klik Pin

$6.49

$

In Stock, Qty 8

0

3

MTD 684-04168

Idler Pulley Assembly

$38.99

$

Usually ships in 3-6 days

0

4

MTD 710-0331

Hex Head Screw, 3/8-24 x 2.25

$6.99

$

In Stock, Qty 7

0

5

MTD 710-0170

Hex Head Screw, 5/16-24 x .625

$6.99

$

In Stock, only 1 left!

0

6

MTD 710-0599

Self Tapping Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0606

Hex Head Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 9

0

8

MTD 710-0672

Hex Head Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 19

0

9

MTD 710-1880

Hex Head Screw, 5/16-18 x .75, Patch

$4.99

$

In Stock, Qty 11

0

10

MTD 736-0315

Washer, Flat, .760 x 1.50 x .120

$6.99

$

In Stock, Qty 6

0

11

MTD 712-04064

Nylon Hex Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-0700

Nut, 9/16-18, Flange Lock

$10.99

$

In Stock, only 2 left!

0

13

MTD 718-04407

Hub, 5/8 Spline

$12.99

$

In Stock, only 2 left!

0

14

MTD 732-04085

Extension Spring, .480 OD X 5.00 LG

$14.99

$

In Stock, only 1 left!

0

15

MTD 732-04276A

Extension Spring, LT5 PTO

$9.99

$

Usually ships in 3-6 days

0

16

MTD 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

17

MTD 736-0173

Washer, .28 x .74 x .063

$4.49

$

In Stock, only 4 left!

0

18

MTD 714-04043

Cotter Pin, Bow Tie

$4.99

$

In Stock, Qty 20+

0

19

MTD 736-0343

Flat Washer, .330 X 1.25 X .120

$4.49

$

In Stock, Qty 7

0

20

MTD 936-0452

Bell Washer, .396 x 1.140 x .095
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 7

0

21

MTD 736-3092

Flat Washer, .265 x 1.0 x .030

$3.99

$

In Stock, Qty 9

0

22

MTD 738-04425

Shoulder Screw, .342 x .335 1/4-28

$4.49

$

In Stock, Qty 20+

0

23

MTD 748-04087A

Pivot Idler Spacer

$6.49

$

In Stock, Qty 9

0

24

MTD 750-04571

Shoulder Spacer, .260 x .785 x .538

$6.99

$

In Stock, only 3 left!

0

25

MTD 750-04907

Pivot Idler Spacer

$6.49

$

Usually ships in 3-6 days

0

26

MTD 1916657

V-Belt, 4L x 25.375 Long
(Superseded to 954-04090)

$20.99

$

In Stock, only 2 left!

0

27

MTD 1916658

V-Belt, 3L x 29.125 Long
(Superseded to 954-04091)

$18.99

$

In Stock, Qty 5

0

28

MTD 756-04198A

Engine Pulley

$55.99

$

Usually ships in 3-6 days

0

29

MTD 756-04355

Transmission Pulley

$55.99

$

In Stock, only 1 left!

0

30

MTD 756-0625

Cable Roller

$9.49

$

In Stock, Qty 16

0

31

MTD 786-04312

Idler Bracket, Forward

$13.99

$

In Stock, only 1 left!

0

32

MTD 786-04343

Cover Plate

Variations

MTD 786-04343-0638

BRACKET-IDLER REVE - MTD/TROY-BILT RED (0638)

$19.99

$

Usually ships in 3-6 days

0

MTD 786-04343-0721

BRACKET-IDLER REVE - SEARS RED (0721)

$18.99

$

Usually ships in 3-6 days

0

MTD 786-04343-4021

PLATE-BELT CVR MTG - CUB YELLOW 2 (4021)

$16.99

$

Usually ships in 3-6 days

0

MTD 786-04343-4044

BRACKET-IDLER REVE - CRAFTSMAN RED (4044)

$18.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

33

MTD 786-04346

Idler Bracket, Reverse

$10.99

$

Usually ships in 3-6 days

0

34

MTD 786-04416-0638

Mounting Frame, RH
(Superseded to 786-04416B-0638)

$29.99

$

Usually ships in 3-6 days

0

35

MTD 786-04415A-0638

Mounting Frame, LH
(Superseded to 786-04415D-0638)

$28.99

$

Usually ships in 3-6 days

0

36

MTD 786-04357-0638

Pulley Bracket
(Superseded to 786-04357A-0638)

$11.99

$

Usually ships in 3-6 days

0

37

MTD 786-04371-0638

Pulley Shield

$20.99

$

Usually ships in 3-6 days

0

38

MTD 642-04071-0638

Tine Assembly, LH

$110.99

$

Usually ships in 3-6 days

0

39

MTD 642-04072-0638

Tine Assembly, RH

$110.99

$

Usually ships in 3-6 days

0

40

MTD 911-0415

Clevis Pin, .375 x 1.75
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 19

0
