21A907-0124-E1 - Briggs & Stratton Vertical Engine Carburetor, Kit - Carburetor Overhaul Parts Diagram

Vertical Engine

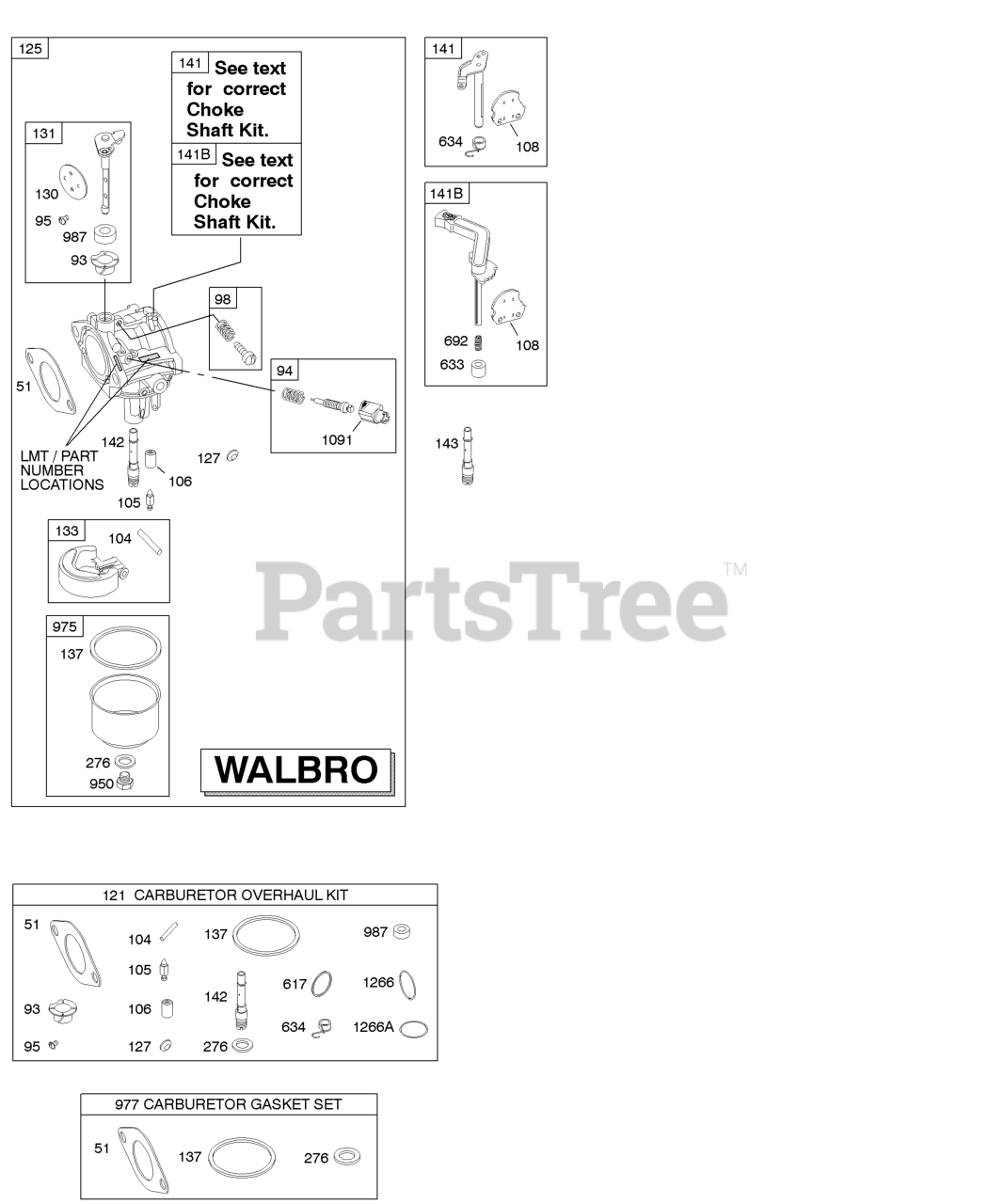

Carburetor, Kit - Carburetor Overhaul Parts Diagram

  • Title

51

Briggs & Stratton 692137

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

93

Briggs & Stratton 690602

Bushing-Throttle Shaft

$9.49

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 794176

Kit-Idle Mixture

Note: (Walbro)

$21.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve) (Walbro)

$3.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 495800

Kit-Idle Speed

Note: (Walbro)

$10.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 690525

Pin-Float Hinge

Note: (Walbro)

$4.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 231855S

Valve-Float Needle

Note: (Walbro)

$6.99

$

Usually ships in 2-12 days

0

106

Briggs & Stratton 690577

Seat-Inlet

Note: (Walbro)(Gravity Feed)

$7.99

$

In Stock, Qty 6

0

106

Briggs & Stratton 691780

Seat-Inlet

Note: (Walbro)(Pump Feed)

$10.99

$

In Stock, only 2 left!

0

108

Briggs & Stratton 691227

Valve-Choke

Note: (Walbro)

$9.49

$

In Stock, only 2 left!

0

121

Briggs & Stratton 790031

Kit-Carb Overhaul
(Superseded to 796185)

Note: (Walbro)

$112.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 694524

Plug-Welch

$4.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 790024

Valve-Throttle

Note: (Walbro)

$8.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 790901

Kit-Throttle Shaft

Note: (Walbro)

$38.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 494381

Float-Carburetor

Note: (Walbro)

$13.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 281165S

Gasket-Float Bowl

Note: (Walbro)

$4.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 790902

Kit-Choke Shaft

Note: (Walbro)

$33.99

$

In Stock, only 1 left!

0

142

Briggs & Stratton 790025

Nozzle-Carburetor

Note: (Standard) (Walbro)

$24.99

$

Usually ships in 2-12 days

0

143

Briggs & Stratton 790028

Nozzle-Carburetor

Note: (High Altitude) (Walbro)

$22.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 692255

Washer-Sealing

$5.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 692138

SEAL, O-Ring

Note: (Intake Manifold)

$5.49

$

In Stock, Qty 16

0

634

Briggs & Stratton 690802

Spring/Seal Assembly

Note: (Walbro)

$9.49

$

Usually ships in 2-12 days

0

692

Briggs & Stratton 691301

Spring-Detent

$4.99

$

Usually ships in 2-12 days

0

950

Briggs & Stratton 691657

Screw-Float Bowl

Note: (Bottom Of Bowl)

$7.99

$

In Stock, only 1 left!

0

975

Briggs & Stratton 495933

Bowl-Float

Note: (Walbro)

$

$

Not available

977

Briggs & Stratton 690192

Gasket Set-Carburetor
(Superseded to 497535)

$67.99

$

In Stock, only 2 left!

0

987

Briggs & Stratton 691326

Seal-Throttle Shaft

$5.49

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 691333

Cap-Limiter

$9.49

$

In Stock, only 1 left!

0

1266

Briggs & Stratton 691917

SEAL, O-Ring

Note: (Intake Elbow)

$4.49

$

In Stock, Qty 20+

0

1266A

Briggs & Stratton 697123

Seal-O Ring

Note: (Intake Elbow)

$5.99

$

In Stock, Qty 19

0
