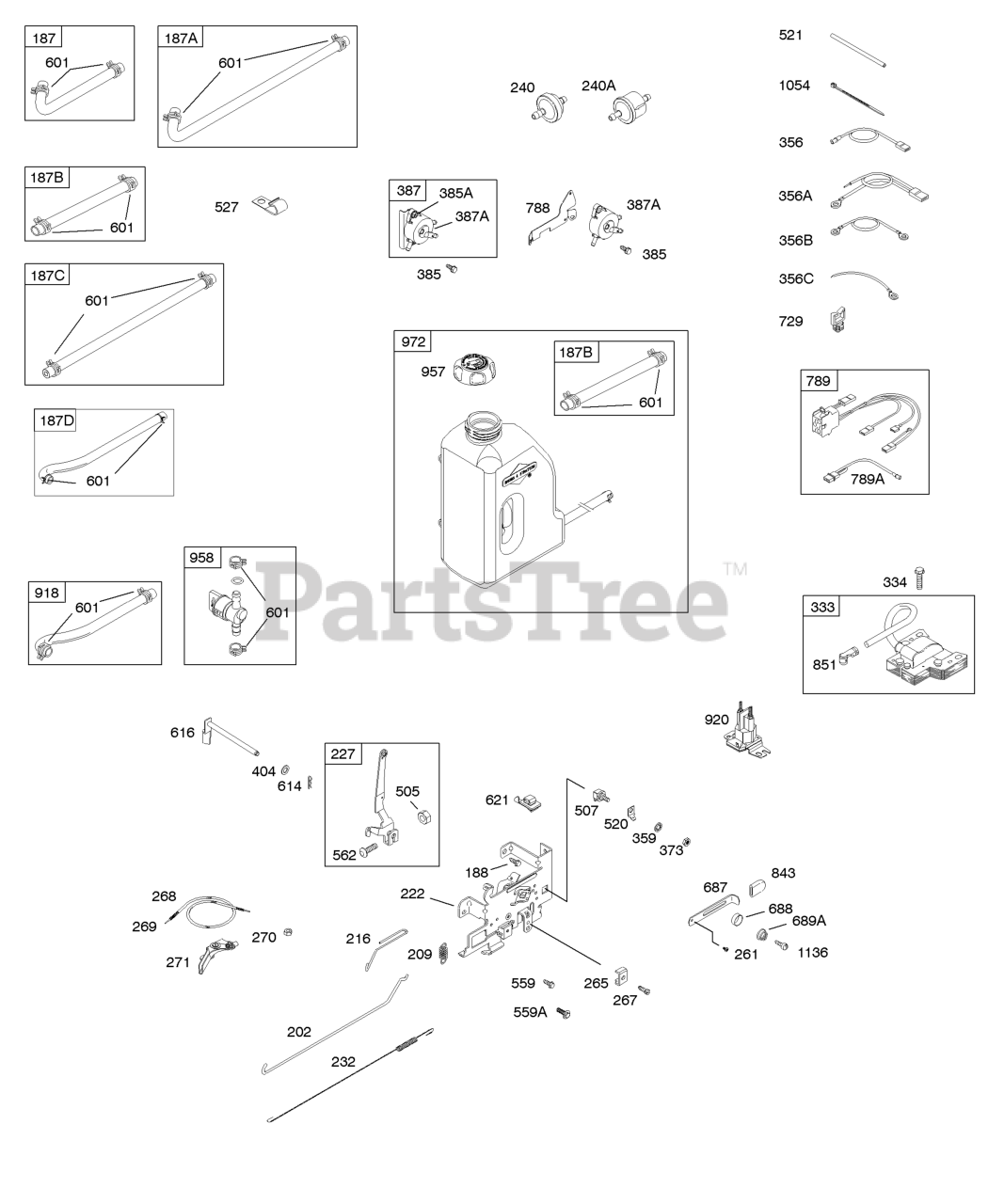

21A807-0118-B1 - Briggs & Stratton Vertical Engine Controls, Fuel Supply, Governor Spring, Ignition Parts Diagram

Vertical Engine

Controls, Fuel Supply, Governor Spring, Ignition Parts Diagram

  • Title

187

Briggs & Stratton 791805

LINE, Fuel

Note: (Formed)(10-1/4" Long)(Cut to Required Length)

$24.99

$

Usually ships in 2-12 days

0

187A

Briggs & Stratton 791806

Line-Fuel

Note: (Formed)(21" Long)(Cut to Required Length)

$54.99

$

Usually ships in 2-12 days

0

187B

Briggs & Stratton 791766

LINE, Fuel

Note: (15" Long)(Cut to Required Length)

$7.99

$

In Stock, Qty 20+

0

187C

Briggs & Stratton 791745

KIT-FUEL, Hose (Cut To Fit)

Note: (23" Long) (Cut to Required Length)

$10.99

$

In Stock, Qty 20+

0

187D

Briggs & Stratton 791744

LINE, Fuel

Note: (Formed)(14 Inches Long)(Cut To Required Length)

$14.99

$

In Stock, only 1 left!

0

188

Briggs & Stratton 691693

SCREW

Note: (Control Bracket)

$3.99

$

In Stock, Qty 8

0

202

Briggs & Stratton 691841

LINK, Mechanical Governor

$9.49

$

In Stock, Qty 13

0

209

Briggs & Stratton 692208

Spring-Governor
(Superseded to 796260)

Note: (Green)

$4.99

$

In Stock, Qty 13

0

216

Briggs & Stratton 691840

LINK, Choke

$8.99

$

In Stock, Qty 19

0

222

Briggs & Stratton 694042

Bracket-Control
(Superseded to 597209)

$38.99

$

In Stock, Qty 20+

0

227

Briggs & Stratton 691374

LEVER, Governor Control

$26.99

$

In Stock, only 2 left!

0

232

Briggs & Stratton 691842

SPRING, Governor Link

$11.99

$

In Stock, Qty 20+

0

240

Briggs & Stratton 394358S

FILTER, Fuel

Note: (White, 75 Microns)

$5.99

$

In Stock, Qty 20+

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 5

0

267

Briggs & Stratton 794904

SCREW

Note: (Casing Clamp)

$3.49

$

Usually ships in 2-12 days

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 795315

Armature-Magneto
(Superseded to 595304)

$45.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 697397

Wire-Stop

$12.99

$

Usually ships in 2-12 days

0

356A

Briggs & Stratton 398808

WIRE, Stop (30" Cut To Required Length)

$11.99

$

In Stock, only 1 left!

0

356C

Briggs & Stratton 399222

Wire-Stop

$4.99

$

Usually ships in 2-12 days

0

356B

Briggs & Stratton 697089

WIRE, Stop

$11.99

$

Usually ships in 2-12 days

0

359

Briggs & Stratton 691077

Washer

Note: (Ground Terminal)

$3.49

$

In Stock, only 2 left!

0

373

Briggs & Stratton 691612

NUT

Note: (Ground Terminal)

$3.49

$

In Stock, only 1 left!

0

385

Briggs & Stratton 694476

Screw

Note: (Fuel Pump)

$3.99

$

In Stock, only 1 left!

0

385A

Briggs & Stratton 690297

Screw

Note: (Fuel Pump)

$3.49

$

In Stock, Qty 12

0

387

Briggs & Stratton 697090

Pump-Fuel

Note: (Includes Mounting Bracket) Used Before Code Date 08073000

$

$

Not available

387A

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

$27.99

$

In Stock, Qty 20+

0

404

Briggs & Stratton 691691

WASHER

Note: (Governor Crank)

$3.99

$

In Stock, Qty 5

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

562

Briggs & Stratton 691119

BOLT

Note: (Governor Control Lever)

$4.49

$

In Stock, Qty 17

0

601

Briggs & Stratton 791850

CLAMP, Hose

Note: (Zinc Plate)(Spring Wire)

$3.49

$

In Stock, Qty 20+

0

614

Briggs & Stratton 691620

PIN, Cotter

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 692012

CRANK, Governor

$13.99

$

In Stock, only 2 left!

0

729

Briggs & Stratton 691335

Clip-Wire

Note: (Wire Retainer)

$4.99

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 698329

HARNESS, Wiring

$36.99

$

In Stock, Qty 5

0

789A

Briggs & Stratton 790544

WIRE/CONNECTOR, Alternator

$43.99

$

Usually ships in 2-12 days

0

843

Briggs & Stratton 697158

Sleeve-Lever

$7.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 692424

Terminal-Spark Plug

$5.99

$

In Stock, Qty 13

0

918

Briggs & Stratton 791851

Hose-Vacuum

Note: (Molded)

$14.99

$

In Stock, only 1 left!

0

957

Briggs & Stratton 792647

Cap-Fuel Tank
(Superseded to 795027)

Note: (Plastic)

$10.99

$

In Stock, Qty 20+

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0
