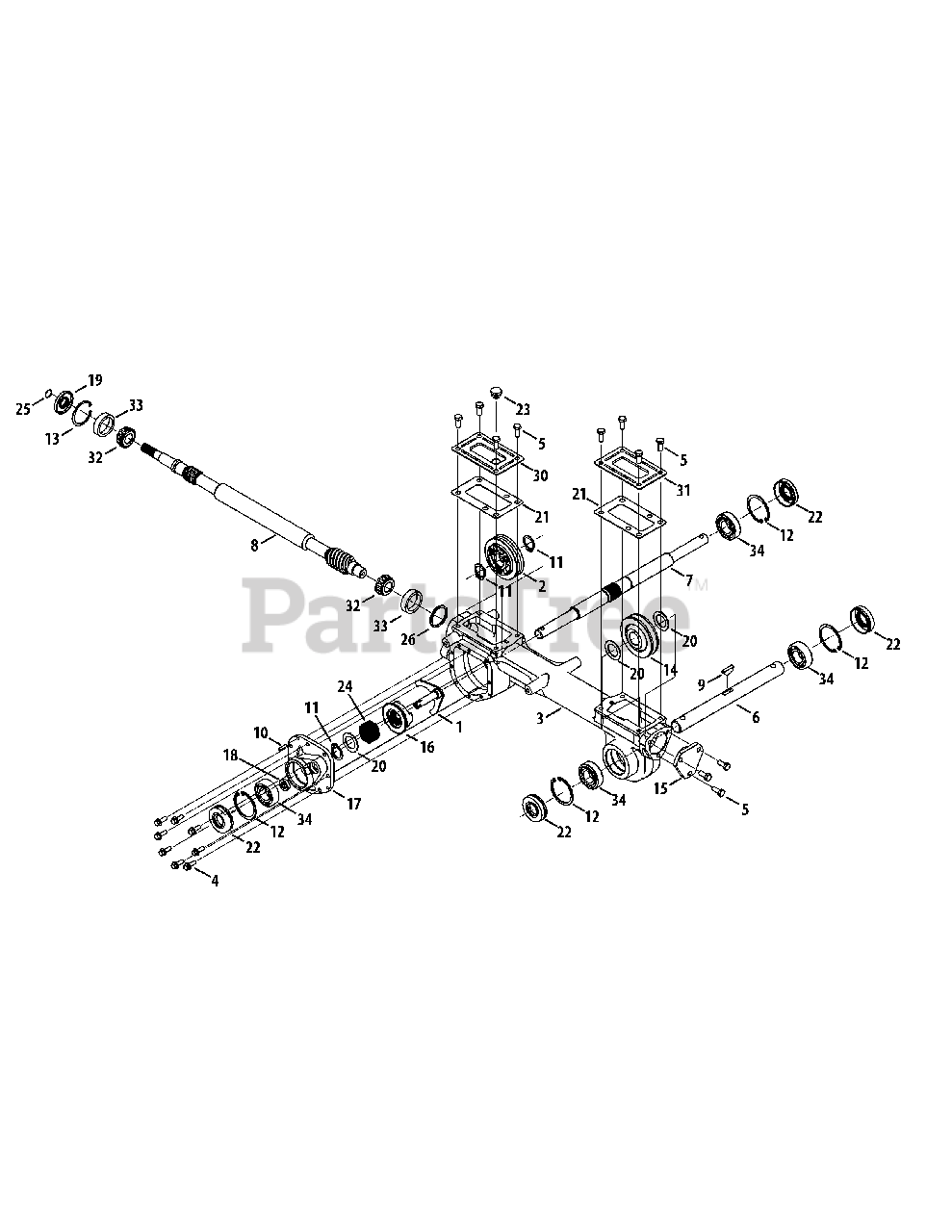

21A-692R766 - Troy-Bilt Pony Rear-Tine Tiller (2015) Transmission Parts Diagram

Pony Rear-Tine Tiller

Transmission Parts Diagram

  • Title
1

MTD 611-04130

Yoke Wheel Shaft Assembly

$56.99

$

Usually ships in 3-6 days

0

2

MTD 617-04080P

Worm Gear Assembly

$197.99

$

Usually ships in 3-6 days

0

3

MTD 919-04242A

Transmission Housing

$317.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-04666

Hex Flange Screw, 1/4-20 x .75

$6.99

$

In Stock, only 3 left!

0

5

Troy-Bilt 710-3008

Hex Head Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 911-04844

Tiller Shaft

$84.99

$

In Stock, only 2 left!

0

7

MTD 911-05123

Wheel Shaft

$98.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 711-05189

Front Worm Shaft
(Superseded to 911-05189)

$129.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 714-04059

Key, .25 x 1.062

$6.99

$

In Stock, Qty 8

0

10

Troy-Bilt 915-0221

Pin, Dowel, 3/16 x 3/4

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 716-0127

Snap Ring, 1.00 Shaft Dia.

$12.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 716-0204

Retainer Ring

$6.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 716-04102

Retainer Ring

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 917-04383

Worm Gear, 30T, RH

$153.99

$

In Stock, only 2 left!

0

15

Troy-Bilt 918-04435

Bearing Cover

$22.99

$

Usually ships in 3-6 days

0

16

MTD 718-04541

Disconnect Collar

$19.99

$

Usually ships in 3-6 days

0

17

MTD 919-04493A

Wheel Cover

$51.99

$

Usually ships in 3-6 days

0

18

$12.99

$

In Stock, Qty 6

0

19

Troy-Bilt 921-04030

Oil Seal, .750 SHF x 1.783 BORE

$12.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 736-0745

Washer, Flat, 1.010 x 1.56 x .060

$12.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 921-04229

Gear Housing Gasket

$6.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 721-04232

Oil Seal, 1.00 SHF x 2.00 BORE

$16.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 721-04271

Rubber Oil Plug

$5.49

$

In Stock, Qty 11

0

24

MTD 732-04603

Spring, 1.5 x 1.14 x .800

$11.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 732-0614

Ring, Wire

$6.49

$

In Stock, only 2 left!

0

26

Troy-Bilt 736-04305

Washer, Flat, 1.50 x 1.75 x .062

Note: (as required)

$3.99

$

In Stock, Qty 13

0

26

Troy-Bilt 736-04306

Washer, Flat, 1.50 x 1.75 x .005

Note: (as required)

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 736-04307

Washer, Flat, 1.50 x 1.75 x .03

Note: (as required)

$4.49

$

In Stock, only 1 left!

0

26

Troy-Bilt 736-04308

Washer, Flat, 1.50 x 1.75 x .010

Note: (as required)

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 786-04366

Tiller Transmission Cover

$21.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 786-04392

Tiller Transmission Cover
(Superseded to 786-04392-0637)

$19.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 941-04298

Cone Bearing

$16.99

$

In Stock, Qty 18

0

33

Troy-Bilt 941-04299

Cup Bearing

$6.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 741-3114

Ball Bearing, 1 x 52 x 15 x 6205-1

$26.99

$

In Stock, Qty 20+

0
