21A-683F766 - Troy-Bilt Rear-Tine Tiller (2007) Wheel Assembly & Drive Parts Diagram

Rear-Tine Tiller

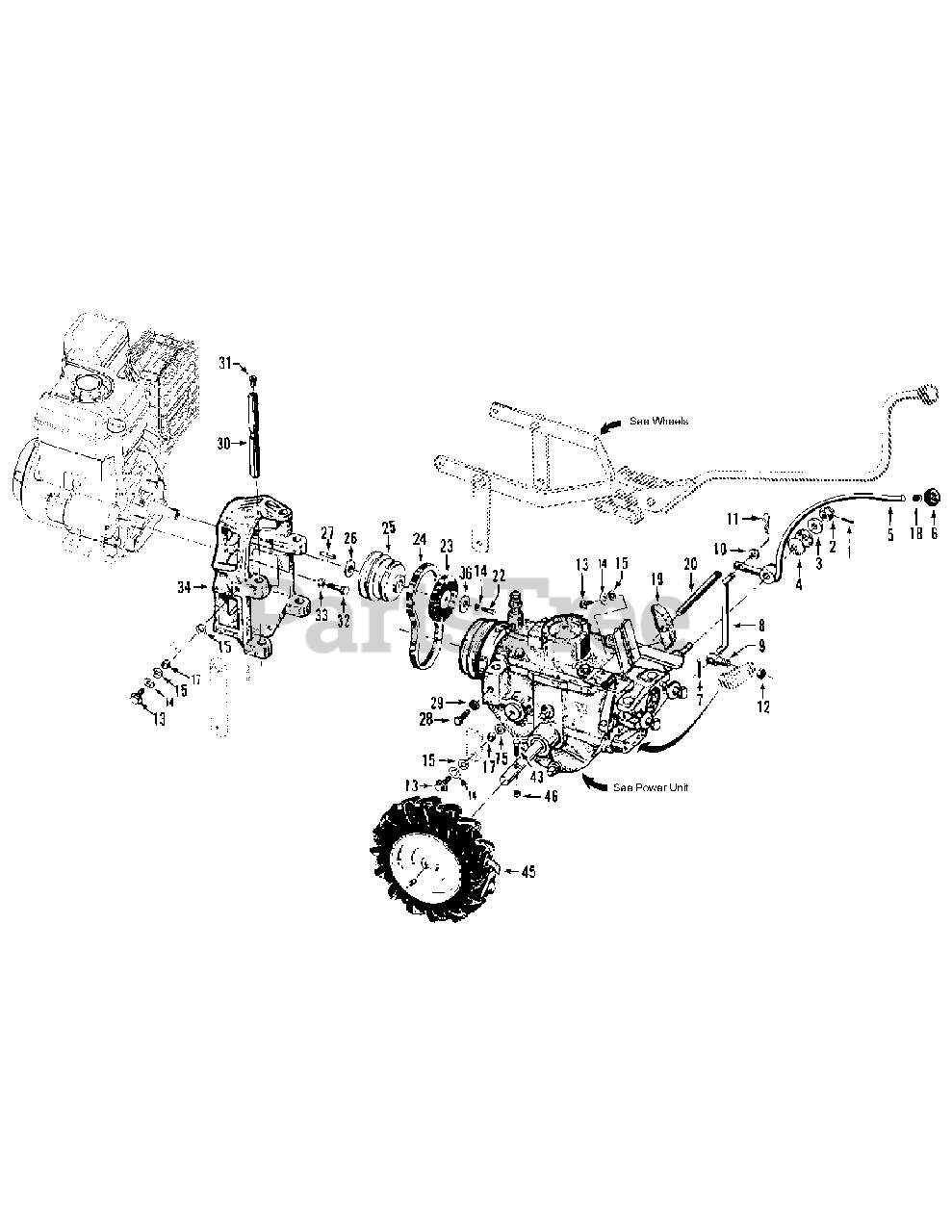

Wheel Assembly & Drive Parts Diagram

  • Title

1

Troy-Bilt GW-9362

Pin-spring, 1/8"

$4.49

$

Usually ships in 3-6 days

0

2

Troy-Bilt GW-9838

Nut-castle (slotted), 1/2"-20

$

$

Not available

3

Troy-Bilt GW-9934

Washer-shoulder, 1/2"

$15.99

$

In Stock, only 1 left!

0

4

Troy-Bilt GW-9932

Washer-disc spring

$24.99

$

In Stock, only 3 left!

0

5

Troy-Bilt GW-2628

Lever-wheel speed shift

$142.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1902240

Knob-wheel speed shift lever

$23.99

$

In Stock, only 2 left!

0

7

Troy-Bilt GW-9317

Pin-cotter, 3/32" x 1"

$3.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt GW-1515

Connecting rod, wheel speed -shift lever (incl. Refs. 7 & 9)

$

$

Currently unavailable

9

Troy-Bilt GW-1033

Swivel-connecting rod

$15.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 736-0275

Washer-flat, 5/16", SAE

$6.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 714-04048

Pin-hair cotter

$8.49

$

In Stock, only 2 left!

0

12

Troy-Bilt 712-0158

Locknut-hex hd., 5/16"-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

13

Troy-Bilt 710-0514

Bolt-flanged hex hd., 3/8-16 x 1"

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 736-0169

Lockwasher-spring lock, 3/8"

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 736-3050

Washer-flat, 3/8", SAE

$4.49

$

In Stock, Qty 16

0

17

Troy-Bilt GW-1113-1

Bushing-spacer, 19/64" (.300" lg)
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

18

Troy-Bilt GW-9120

Ring-retaining (tolerance ring)

$6.99

$

In Stock, only 1 left!

0

19

Troy-Bilt GW-2102

Block- belt adjustment, 3-7/8"
(Superseded to GW-2102A)

$49.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt GW-2100

Rod- belt adjust., 7" with measuring gauge

$12.99

$

In Stock, only 1 left!

0

21

MTD 777I20942

Decal- engine stabilization

$

$

Not available

22

Troy-Bilt 1100012

Bolt-hex hd., 3/8-24 x 1-1/2"
(Superseded to 710-0539)

$4.99

$

In Stock, Qty 11

0

23

Troy-Bilt 756-04171

Disc-reverse

$67.99

$

In Stock, Qty 15

0

24

Troy-Bilt GW-9245

Belt-forward drive (no substitute due to extra strength required)

$23.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 619-04124

Pulley-engine power take off

$153.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 736-04192

Shim-engine pulley, 1/16"

Note: As Required

$6.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 736-04187

Shim-as above, 1/32"

Note: As Required

$4.99

$

In Stock, Qty 20+

0

27

Troy-Bilt GW-9303

Key-engine pulley, 3/16"sq. x 2-1/2"

$3.99

$

In Stock, Qty 10

0

28

Troy-Bilt 710-0376

Bolt-hex hd., 5/16-18 x 1"; Grade 5

$3.99

$

In Stock, only 4 left!

0

29

Troy-Bilt 712-3010

Nut, hex, 5/16-18

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt GW-1034

Bar-engine mounting
(Superseded to GW-1034A)

$46.99

$

In Stock, Qty 5

0

31

Troy-Bilt GW-9147

Plug-thread protector, red plastic

$8.49

$

In Stock, only 1 left!

0

32

Troy-Bilt 710-04458

Bolt-hex hd., 5/16-24 x 1-1/8"
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 18

0

33

Troy-Bilt 736-0119

Lockwasher-spring lock, 5/16"
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 1916274001

Mount- engine to tiller
(Superseded to 719-04222-0637)

$312.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 736-3052

Washer, flat, .406 x 1.0 x .105

$4.49

$

In Stock, Qty 20+

0

36

MTD 777S30647

Decal-hot surface warning

$

$

Not available

43

Troy-Bilt 710-0606

Screw, Hex, 1/4-20 x 1-1/2"

$5.49

$

In Stock, Qty 9

0

45

Troy-Bilt 634-04231

Wheel & Tire Ass'y. 16 x 4:6 x 8" tubeless tire with valve stem, on one-piece steel rim
(Superseded to 934-04231)

Note: For correct traction & directional control, Bar Tread Tires should be mounted on the tiller so the closed end of the "V" in the tire tread on top of the tire faces forward.

$257.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 712-04064

Nut, Hex Flange, 1/4-20

$3.99

$

In Stock, Qty 20+

0
