21A-683F766 - Troy-Bilt Rear-Tine Tiller (2006) Tiller Attachment Transmission Assemblies Parts Diagram

Rear-Tine Tiller

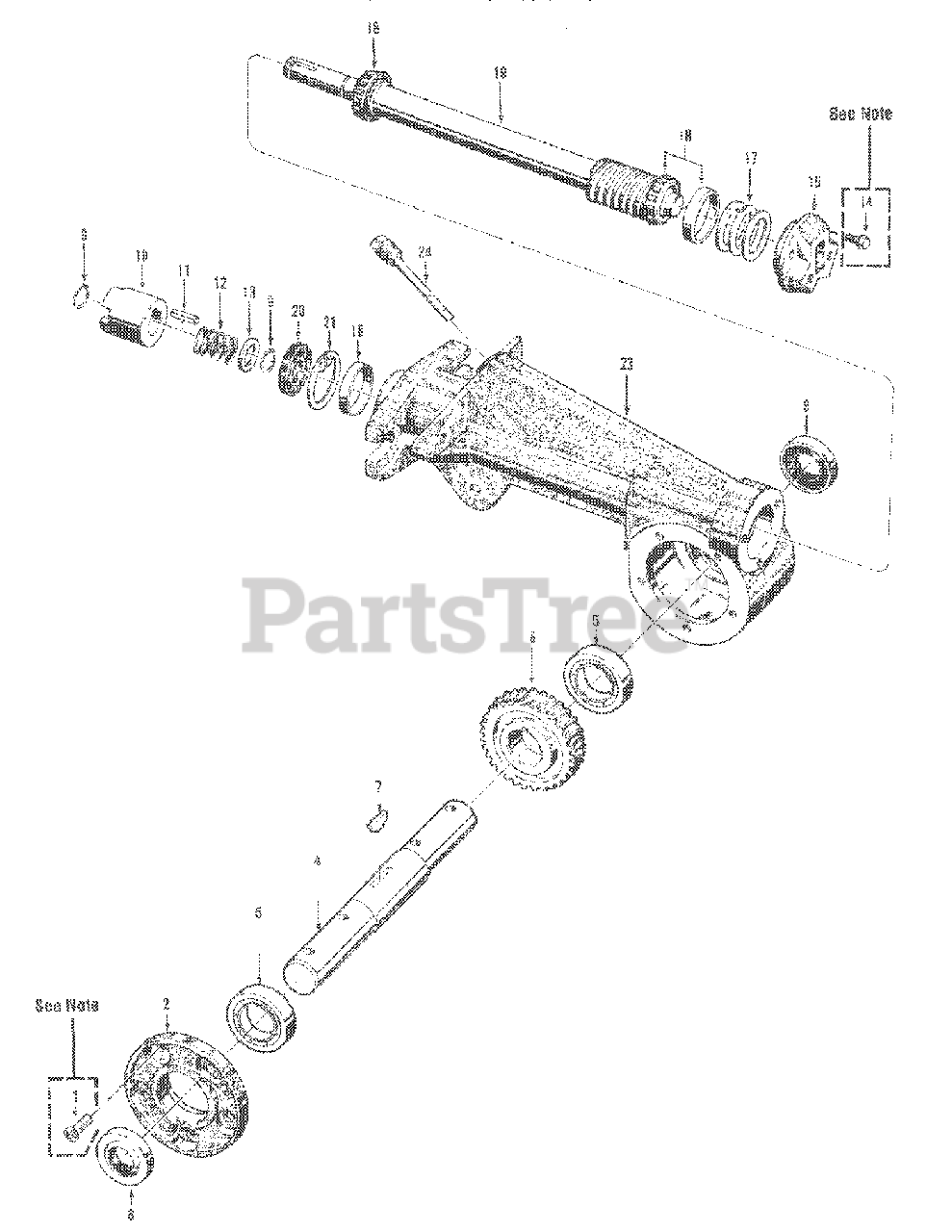

Tiller Attachment Transmission Assemblies Parts Diagram

  • Title

1

Troy-Bilt 1915068

Screw-self-sealing,1/4"-20

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt GW-20873

Cover-tiller housing

$108.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 711-04082

Shaft-tiller tine
(Superseded to 911-04082)

$115.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 741-3037

Ball Bearing
(Superseded to 941-3037)

$41.99

$

In Stock, Qty 14

0

6

Troy-Bilt 1901976

Worm Gear-bronze, tiller tine shaft

$167.99

$

In Stock, only 1 left!

0

7

Troy-Bilt GW-1104

Key-tiller tine shaft, woodruff key

$9.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 721-04035

Seal-oil, tiller tine shaft
(Superseded to 921-04035)

$11.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 716-0101

Retaining Ring-external

Note: (Tiller Drive Shaft Assembly 9-21)

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1909138

Dog Clutch-tiller drive shaft
(Superseded to 718-04614)

$31.99

$

In Stock, only 1 left!

0

11

Troy-Bilt GW-9301

Key-3/16" x 1"

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt GW-2127

Spring-dog clutch]

$5.99

$

In Stock, Qty 13

0

13

Troy-Bilt GW-1138-1

Shim-dog clutch, 1/16"(.62")
(Superseded to 736-04187)

$4.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 1915069

Screw-self-sealing,1/4"-20 x 7/8

$4.49

$

In Stock, only 3 left!

0

15

Troy-Bilt GW-1115

Cap-rear bearing
(Superseded to 718-04406)

$50.99

$

In Stock, Qty 5

0

17

Troy-Bilt GW-1224-1

Shim-front bearing cap, .010" thick
(Superseded to 736-04308)

Note: A/R

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt GW-1224-2

Shim-same as above, .030" thick
(Superseded to 736-04307)

Note: A/R

$4.49

$

In Stock, only 3 left!

0

17

Troy-Bilt GW-1224-3

Shim-same as above, .005" thick
(Superseded to 736-04306)

Note: A/R

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt GW-1224-4

Shim-same as above, .062 thick
(Superseded to 736-04305)

Note: A/R

$3.99

$

In Stock, Qty 16

0

18

Troy-Bilt GW-1714

Bearing & Race incl one bearing GW-9400 & onecup (race) GW-9401
(Superseded to 941-0107)

$47.99

$

In Stock, Qty 17

0

19

Troy-Bilt GW-2653

Shaft-main tiller drive
(Superseded to GW-11602)

$302.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 721-04030

Seal-oil, drive shaft,
(Superseded to 921-04030)

$12.99

$

In Stock, Qty 20+

0

21

Troy-Bilt GW-9517

Retaining Ring-internal
(Superseded to 716-04102)

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 1901971

Housing-tiller attachment (Empty housing without shafts, gears, seals,dipsticks, etc.)
(Superseded to 619-04127)

Note: (Transmission Housing and Dipstick 23-24)

$343.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 1909157

Dipstick-oil, tiller attachment

$18.99

$

In Stock, only 1 left!

0

Troy-Bilt 618-04003

Transmission Assembly
(Superseded to 918-04003)

Note: (Transmission Housing and Dipstick 23-24)

$1501.99

$

Usually ships in 3-6 days

0
