21A-682P766 - Troy-Bilt Horse Rear-Tine Tiller (2014) Levers Parts Diagram

Horse Rear-Tine Tiller

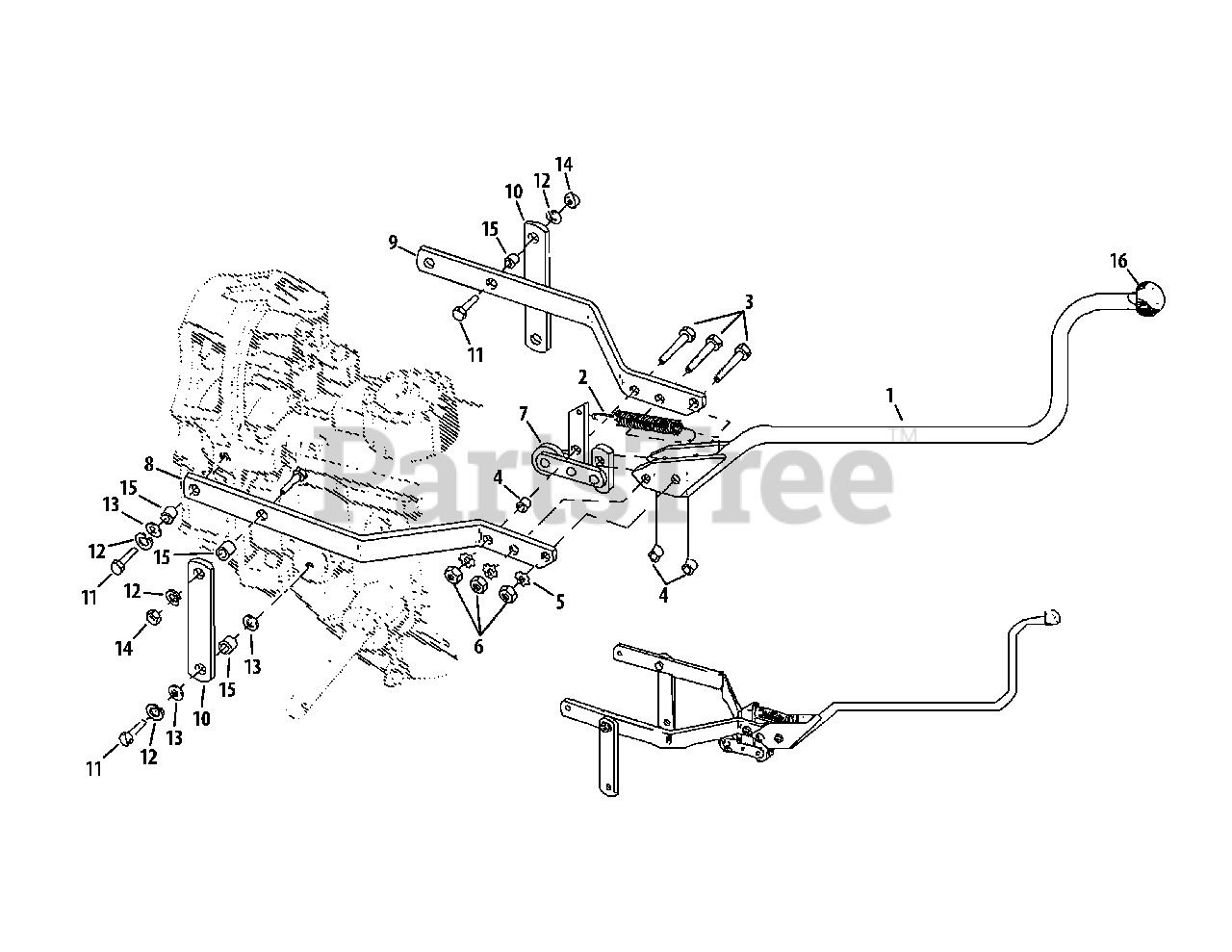

Levers Parts Diagram

  • Title
1

Troy-Bilt 647-04006

Forward/Reverse Lever

$134.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 1908156

Clutch Pawl Spring

$15.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0805

Hex Bolt, 5/16"-18 x 1-1/2"
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt GW-2447

Bushing, .5 x .316 x .375

$6.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 736-0607

External Tooth Lockwasher, 5/16"

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 912-3010

Hex Nut, 5/16"-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 686-04006-0638

Roller Assembly
(Superseded to 686-04006)

$93.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 1900468010

Yoke (Left)

$47.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 1900469001

Yoke (Right)

$43.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 1900860001

Yoke Pivot Link

$16.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 710-0514

Hex Bolt, 3/8"-16 x 1"

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 936-0169

Lockwasher, 3/8"
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 736-3050

Flat Washer, 3/8"

$4.49

$

In Stock, Qty 16

0

14

Troy-Bilt 912-3017

Hex Nut, 3/8"-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt GW-1113-1099

Bushing Spacer, .5 x .375 x .3

$5.49

$

In Stock, Qty 20+

0

$17.99

$

Usually ships in 3-6 days

0
