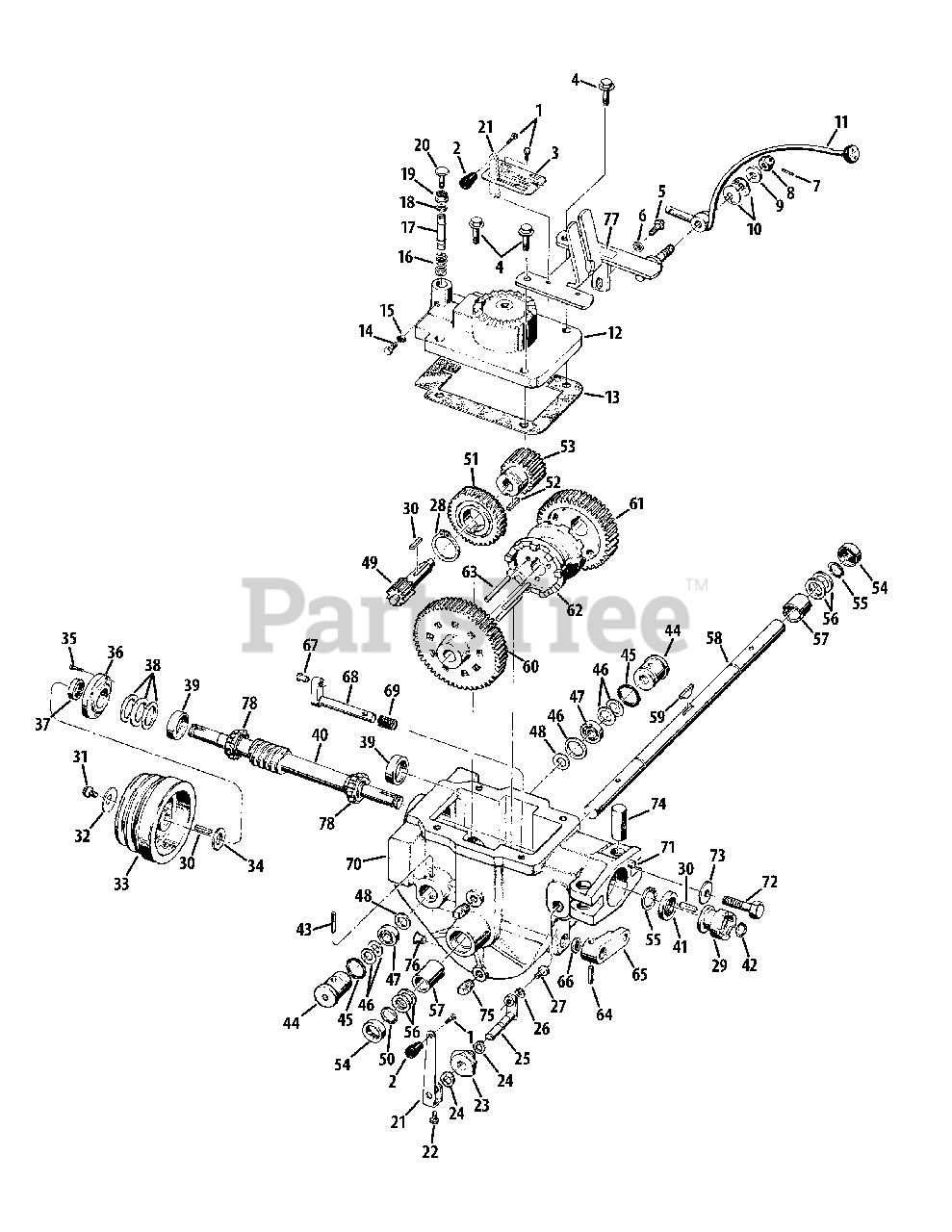

21A-682P766 - Troy-Bilt Horse Rear-Tine Tiller (2012) Wheel Transmission 21A-682 Parts Diagram

Horse Rear-Tine Tiller

Wheel Transmission 21A-682 Parts Diagram

  • Title

1

Troy-Bilt 710-04454

Hex Head Screw, #10-32 x 3/8"

$4.49

$

In Stock, Qty 14

0

2

Troy-Bilt GW-9463

Knob

$11.99

$

In Stock, only 2 left!

0

3

Troy-Bilt GW-2263

Plate

$52.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 1186349

Hex Flange Bolt, 3/8"-16 x 1-1/2"

$3.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-04043

Hex Flange Bolt, 5/16"-18 x 3/4"

$4.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 936-0275

Flat Washer, 5/16"
(Superseded to 736-0275)

$

$

Not available

7

Troy-Bilt GW-9362

Spring Pin, 1/8"

$4.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 912-3012

Hex Nut, 1/2"-20
(Superseded to 712-3012A)

$13.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 936-0326

Flat Washer, .510 x 1.0 x .125
(Superseded to 736-0326)

Note: (Not shown)

$4.49

$

In Stock, only 2 left!

0

9

Troy-Bilt GW-9934

Shoulder Washer, 1.25 x .50 x .25

$15.99

$

In Stock, only 1 left!

0

10

Troy-Bilt GW-9932

Disc Spring Washer, 1.97 x 1.0 x .118

$24.99

$

In Stock, only 3 left!

0

11

Troy-Bilt GW-2628

Wheel Speed Shift Lever

$142.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 719-04015P

Power Unit Transmission Cover

$233.99

$

In Stock, only 3 left!

0

13

Troy-Bilt GW-1123

Transmission Cover Gasket

$8.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 710-0376

Hex Head Screw, 5/16"-18 x 1"

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 912-3010

Hex Nut, 5/16"-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 1901439

Plunger Spring

$12.99

$

In Stock, only 4 left!

0

17

Troy-Bilt GW-1035

Plunger

$37.99

$

In Stock, Qty 5

0

18

Troy-Bilt 1901440

Clip Ring

$5.49

$

In Stock, Qty 19

0

19

Troy-Bilt 712-04065

Flange Lock Nut, 3/8"-16

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 1902004

Screw, 3/8"-16 x 1-1/2"

$8.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 786-04002

Tines/PTO Clutch Lever

$56.99

$

In Stock, only 3 left!

0

22

Troy-Bilt 710-3013

Hex Head Screw, 1/4"-20 x 1/2"

$4.99

$

In Stock, Qty 11

0

23

Troy-Bilt 741-04008

Tines/PTO Clutch Bushing

$28.99

$

In Stock, Qty 7

0

24

Troy-Bilt GW-9516

External Retaining Ring

$4.49

$

In Stock, only 4 left!

0

25

Troy-Bilt GW-2461

Tines/PTO Clutch Shaft

$39.99

$

In Stock, only 3 left!

0

26

Troy-Bilt GW-9911

Hi-Collar Lockwasher, 1/4"

$5.99

$

In Stock, Qty 9

0

27

Troy-Bilt GW-9672

Socket Head Screw, 1/4"-20 x 3/8"
(Superseded to 710-04354)

$3.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 916-0101

External Retaining Ring
(Superseded to 716-0101)

$3.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 718-04615

Dog Clutch

$53.99

$

In Stock, only 1 left!

0

30

Troy-Bilt GW-9301099

Key, 3/16" x 1"
(Superseded to GW-9301)

$3.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 710-0157

Hex Head Screw, 5/16"-24 x 3/4"

$4.49

$

In Stock, Qty 15

0

32

Troy-Bilt 736-04193

Spring Washer, .827 x .331 x .098

$6.99

$

In Stock, Qty 19

0

33

Troy-Bilt GW-2107

Transmission Drive Pulley

$145.99

$

In Stock, only 1 left!

0

34

Troy-Bilt GW-50027

Flat Washer, 1.25 x .687 x .075

$6.99

$

In Stock, Qty 7

0

35

Troy-Bilt 1186310

Flange Nut, 1/4"-20 x .75

$3.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 718-04007

Front Bearing Cap

$18.99

$

In Stock, only 2 left!

0

37

Troy-Bilt 921-04044

Oil Seal

$9.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 736-04305

Flat Washer, 1.175 x 1.5 x .062

Note: (as required)

$3.99

$

In Stock, Qty 13

0

38

Troy-Bilt 736-04306

Flat Washer, 1.175 x 1.5 x .005

Note: (as required)

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 736-04307

Flat Washer, 1.175 x 1.5 x .03

Note: (as required)

$4.49

$

In Stock, only 3 left!

0

38

Troy-Bilt 736-04308

Flat Washer, 1.175 x 1.5 x .01

Note: (as required)

$4.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 941-04299

Cup Bearing

$6.99

$

In Stock, Qty 20+

0

40

Troy-Bilt GW-2655

Main Drive Shaft

$220.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 921-04030

Oil Seal

$12.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 716-04102

Retaining Ring

$4.49

$

In Stock, Qty 20+

0

43

Troy-Bilt 715-0121

Roll Pin (Spirol), 1/4" x 2

$6.99

$

In Stock, Qty 8

0

44

Troy-Bilt 718-04006

Pinion Bearing

$49.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt GW-9604

O-Ring

$5.49

$

In Stock, Qty 9

0

46

Troy-Bilt 736-04310

Flat Washer, 1.234 x 1.015 x .062

Note: (as required)

$4.49

$

In Stock, Qty 20+

0

46

Troy-Bilt GW-1132-1

Flat Washer, 1.234 x 1.015 x .033
(Superseded to 736-04386)

Note: (as required)

$6.99

$

In Stock, Qty 5

0

46

Troy-Bilt GW-1132-3

Flat Washer, 1.234 x 1.015 x .01

Note: (as required)

$6.99

$

In Stock, Qty 5

0

47

Troy-Bilt GW-9404

Ball Bearing

$27.99

$

In Stock, only 2 left!

0

48

Troy-Bilt 936-0272

Washer
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

49

Troy-Bilt GW-1222

Pinion Stem

$139.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 716-04119

External Retaining Ring, 1.387 ID

$14.99

$

In Stock, only 1 left!

0

51

Troy-Bilt GW-2656

Worm Gear

$147.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt GW-9300

Key, 3/16" x 5/8"

$3.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt GW-1233

Fast Speed Pinion Gear

$142.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 921-04031

Oil Seal

$10.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 716-04104

External Retaining Ring

$4.49

$

In Stock, Qty 20+

0

56

Troy-Bilt 736-04257

Flat Washer, 1.375 x 1.015 x .005

Note: (as required)

$3.99

$

In Stock, Qty 20+

0

56

Troy-Bilt 736-04258

Flat Washer, 1.375 x 1.015 x .01

Note: (as required)

$3.99

$

In Stock, Qty 20+

0

56

Troy-Bilt 736-04259

Flat Washer, 1.375 x 1.015 x .015

Note: (as required)

$6.99

$

In Stock, Qty 5

0

56

Troy-Bilt 736-04260

Flat Washer, 1.375 x 1.015 x .03

Note: (as required)

$6.99

$

In Stock, only 2 left!

0

56

Troy-Bilt 736-04309

Flat Washer, 1.375 x 1.015 x .062

Note: (as required)

$4.49

$

In Stock, Qty 20+

0

57

Troy-Bilt 941-04300

Bushing, 1.25 x 1.005 x 1.5

$16.99

$

In Stock, Qty 6

0

58

Troy-Bilt 911-04077

Wheel Shaft Asm

Note: (includes ref # 59)

$186.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 714-04014

Hi-Pro Key, .250 x 1.8125

$20.99

$

In Stock, only 2 left!

0

60

Troy-Bilt GW-1223

Slow Speed Gear

$223.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt GW-1232

Faste Gear Speed

$154.99

$

Usually ships in 3-6 days

0

62

Troy-Bilt GW-1237

Dog Clutch

$162.99

$

Usually ships in 3-6 days

0

63

Troy-Bilt GW-1112

Clutch Guide Pin, 1/4"

$4.99

$

In Stock, Qty 6

0

64

Troy-Bilt 1911372

Spring Pin, 3/16" x 1-1/4"

$3.49

$

Usually ships in 3-6 days

0

65

Troy-Bilt 619-04000-0637

Wheel Speed Shifting Lever

$60.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 921-04034

Oil Seal

$10.99

$

In Stock, Qty 20+

0

67

Troy-Bilt 738-04448

Wheel Speed Shifting Pin

$8.49

$

In Stock, Qty 5

0

68

Troy-Bilt 611-04003

Wheel Speed Shifting Shaft

$89.99

$

In Stock, only 1 left!

0

69

Troy-Bilt GW-1441

Spring

$4.49

$

Usually ships in 3-6 days

0

70

Troy-Bilt GW-2109099

Transmission Housing

$936.99

$

Usually ships in 3-6 days

0

71

Troy-Bilt GW-9359

Alignment Pin

$3.99

$

Usually ships in 3-6 days

0

72

Troy-Bilt 1100067

Hex Screw, 1/2"-13 x 2"

$

$

Not available

73

Troy-Bilt GW-9928

Disc Spring Washer

$12.99

$

Usually ships in 3-6 days

0

74

Troy-Bilt GW-2126

Post

$31.99

$

Usually ships in 3-6 days

0

75

Troy-Bilt 1105620

Pipe Plug, 1/4"

$4.49

$

In Stock, only 3 left!

0

76

Troy-Bilt GW-9122

Plug-Red Plastic

$10.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 1900870001

Clutch Bracket

$178.99

$

Usually ships in 3-6 days

0

78

Troy-Bilt 941-04298

Cone Bearing

$16.99

$

In Stock, Qty 18

0
