21A-682J766 - Troy-Bilt Horse Rear-Tine Tiller (2009) Drive System Parts Diagram

Horse Rear-Tine Tiller

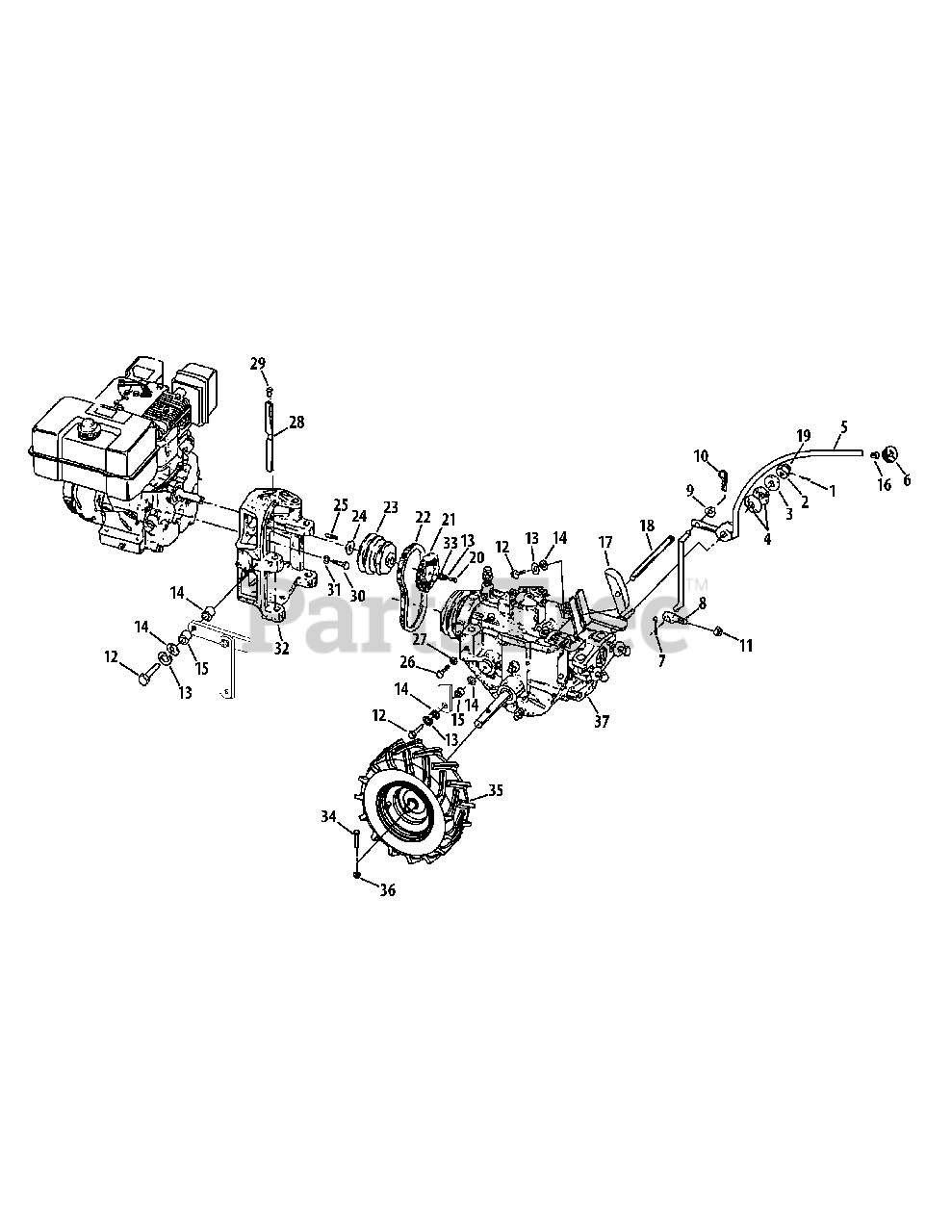

Drive System Parts Diagram

  • Title

1

Troy-Bilt GW-9362

Spring Pin, 1/8"

$4.49

$

Usually ships in 3-6 days

0

2

Troy-Bilt 936-0326

Flat Washer, .510 x 1.0 x .125
(Superseded to 736-0326)

$4.49

$

In Stock, only 2 left!

0

3

Troy-Bilt GW-9934

Shoulder Washer, 1.25 x .50 x .25

$15.99

$

In Stock, only 1 left!

0

4

Troy-Bilt GW-9932

Disc Spring Washer

$24.99

$

In Stock, only 3 left!

0

5

Troy-Bilt GW-2628

Wheel Speed Shift Lever

$142.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1902240

Knob

$23.99

$

In Stock, only 2 left!

0

7

Troy-Bilt GW-9317

Cotter Pin, 3/32" x 1"

$3.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt GW-1033

Swivel

$15.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 936-0275

Flat Washer, .344 x .688 x .065
(Superseded to 736-0275)

$

$

Not available

10

Troy-Bilt 714-04048

Hair Pin Cotter

$8.49

$

In Stock, only 2 left!

0

11

Troy-Bilt 912-0158

Hex Locknut, 5/16"-18

$3.49

$

In Stock, Qty 18

0

12

Troy-Bilt 710-0514

Hex Head Screw, 3/8-16 x 1"

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 936-0169

Lockwasher, 3/8"
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 736-3050

Flat Washer, .406 x .810 x .051

$4.49

$

In Stock, Qty 16

0

15

Troy-Bilt GW-1113-1099

Bushing Spacer, .5 x .375 x .3

$5.49

$

In Stock, Qty 20+

0

16

Troy-Bilt GW-9120

Retaining Ring

$6.99

$

In Stock, only 1 left!

0

17

Troy-Bilt GW-2102

Belt Adjustment, 3-7/8"
(Superseded to GW-2102A)

$49.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt GW-2100

Belt Adjustment Rod

$12.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 912-3012

Hex Nut, 1/2-20
(Superseded to 712-3012A)

$13.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 710-0539

Hex Head Screw, 3/8-24 x 1.75

$4.99

$

In Stock, Qty 11

0

21

Troy-Bilt 756-04171

Reverse Disc

$67.99

$

In Stock, Qty 14

0

22

Troy-Bilt GW-9245

Forward Drive Belt

$23.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 619-04124

Engine Power Take-off Pulley

$153.99

$

In Stock, only 2 left!

0

24

Troy-Bilt 736-04192

Flat Washer, .766 x 1.0 x .031

$6.99

$

In Stock, only 2 left!

0

24

Troy-Bilt 736-04187

Flat Washer, .766 x 1.0 x .062

$4.99

$

In Stock, Qty 20+

0

25

Troy-Bilt GW-9303

Engine Pulley Key, 3/16"x 2-1/2"

$3.99

$

In Stock, Qty 10

0

26

Troy-Bilt 710-0376

Hex Head Screw, 5/16-18 x 1"

$3.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 912-3010

Hex Nut, 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt GW-1034A

Engine Mounting Bar

$46.99

$

In Stock, Qty 5

0

29

Troy-Bilt GW-9147

Thread Protector Plug

$8.49

$

In Stock, only 1 left!

0

30

Troy-Bilt 710-0672

Hex Head Screw, 5/16-24 x 1.125

$4.49

$

In Stock, Qty 16

0

31

Troy-Bilt 936-0119

Lockwasher, 5/16"

$4.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 719-04222-0637

Motor Mount

$312.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 736-3052

Flat Washer, .406 x 1.0 x .105

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 710-0606

Hex Screw, 1/4-20 x 1-1/2

$5.49

$

In Stock, Qty 10

0

35

Troy-Bilt 934-04231

Wheel Assembly, 16 x 4.6 x 8"

$257.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 634-04230-0662

Rim Assembly

$88.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 734-0808-0901

Tire, 16.2 x 4.6
(Superseded to 734-0808A)

$123.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 712-04064

Hex Flange Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 1900870001

Clutch Bracket

$178.99

$

Usually ships in 3-6 days

0
