21A-682J766 - Troy-Bilt Horse Rear-Tine Tiller (2009) Bumper Parts Diagram

Horse Rear-Tine Tiller

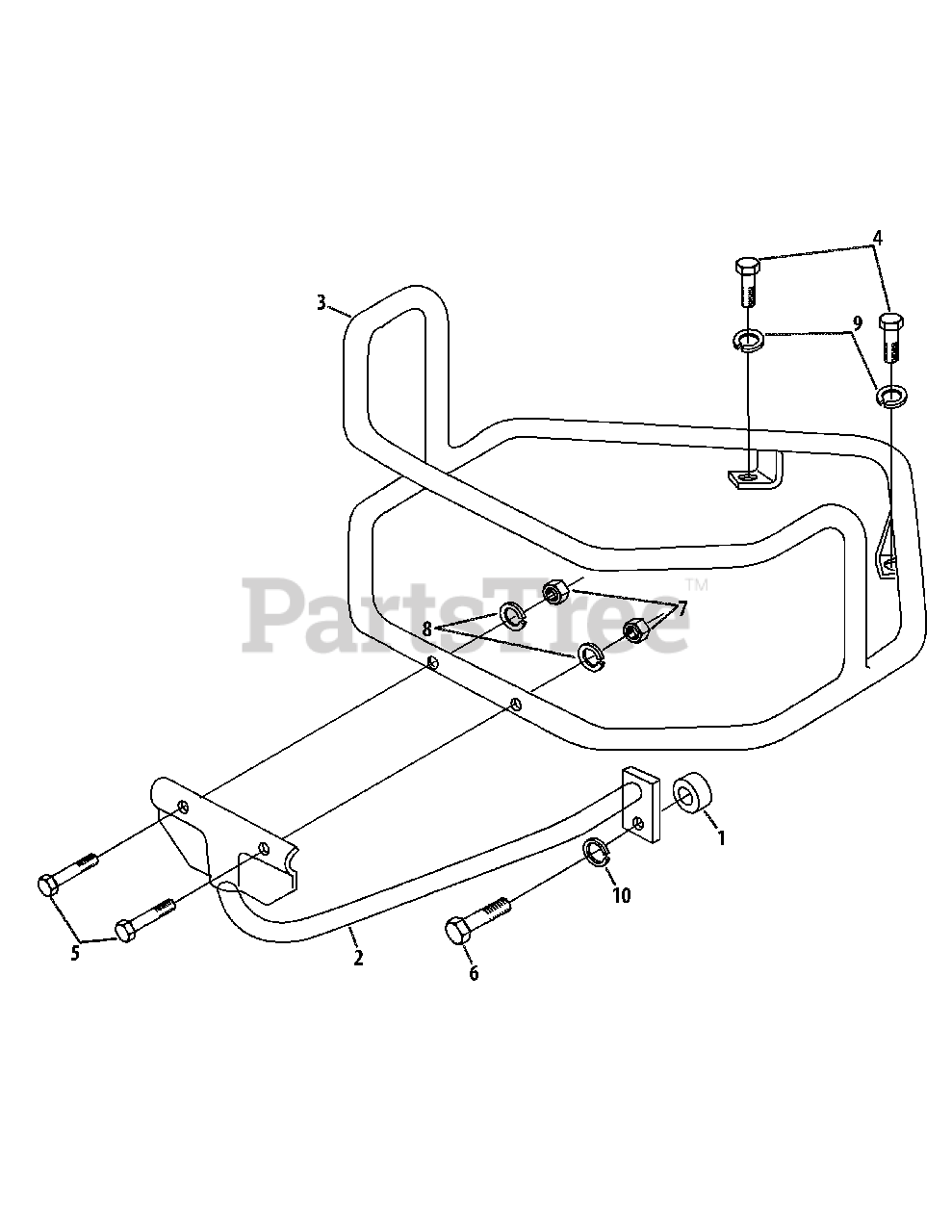

Bumper Parts Diagram

  • Title
1

Troy-Bilt 1909748

Spacer, 1.0 x .546 x .5

$3.49

$

Usually ships in 3-6 days

0

2

Troy-Bilt 1910730001

Bottom Bumper Brace

$83.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 1910731001

Bumper Guard

$215.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-0514

Hex Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-0805

Hex Screw, 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-3181

Hex Screw, 1/2-13 x 1.50

$6.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 912-3010

Hex Nut, 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 936-0921

Lock Washer, 1/2
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 6

0
