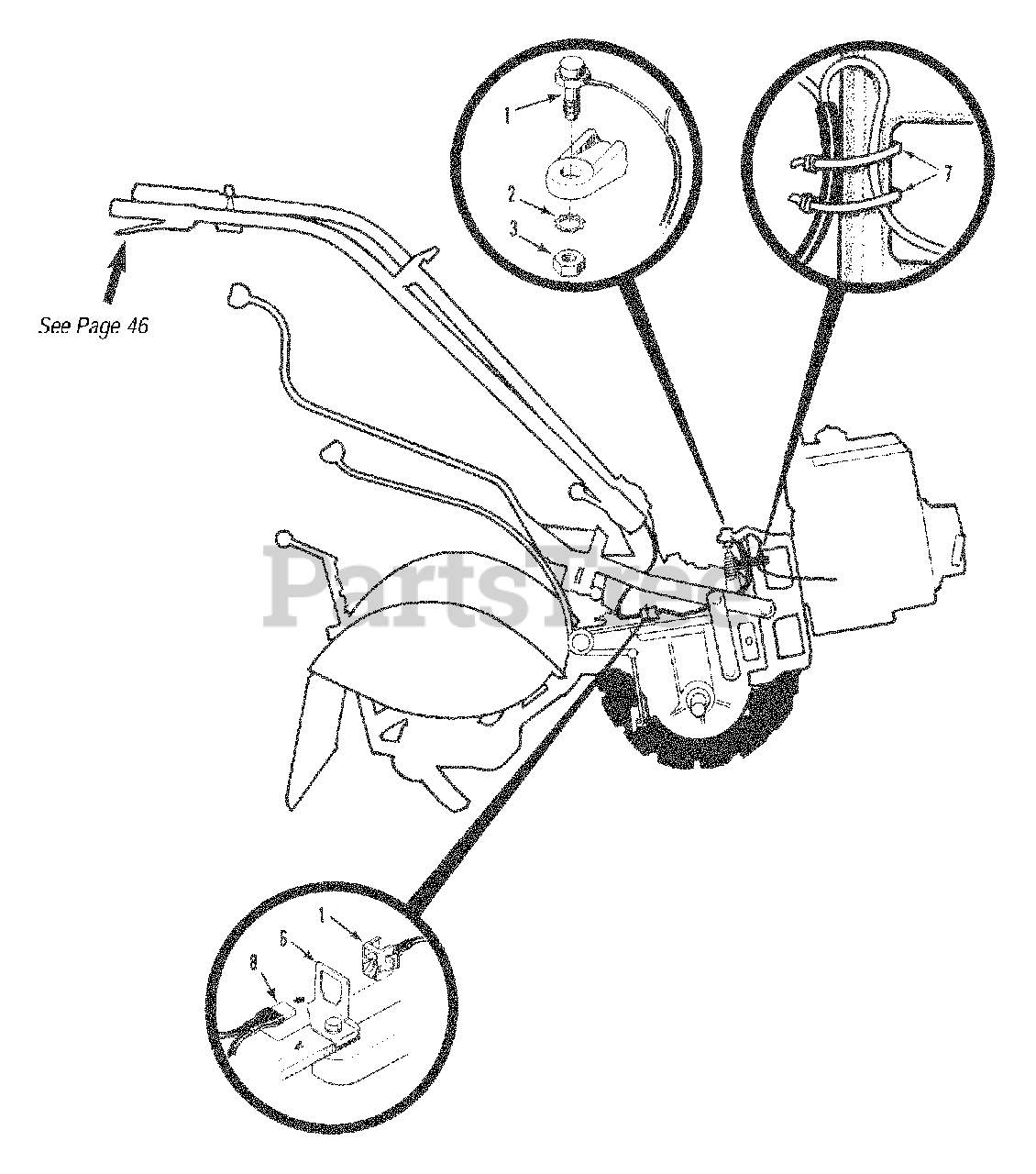

21A-682J766 - Troy-Bilt Horse Rear-Tine Tiller (2004) Forward Interlock System Parts Diagram
Horse Rear-Tine Tiller
Forward Interlock System Parts Diagram
Troy-Bilt 629-04017
Engine Wire Harness Assy-forward interlock system
(Superseded to 929-04017)
Note: (Incl. one red and one black wire, plug connector, neutral switch and PVC tubing. Parts not available separately)
$
$
Not available
Troy-Bilt GW-9971
Lockwasher-external tooth, 7/16"
$
$
Not available
Troy-Bilt 1186246
Nut-hex, 7/16"-20
$
$
Not available
MTD GW-9205
Clip-for plug connector
$
$
Not available
Troy-Bilt 725-0157
Tie-plastic
$3.99
$
In Stock, Qty 20+
Troy-Bilt GW-2551
Handlebar Wire Harness Assy
$
$
Not available
