21A-682J066 - Troy-Bilt Rear-Tine Tiller (2008) Wheel Shaft Assembly Parts Diagram

Rear-Tine Tiller

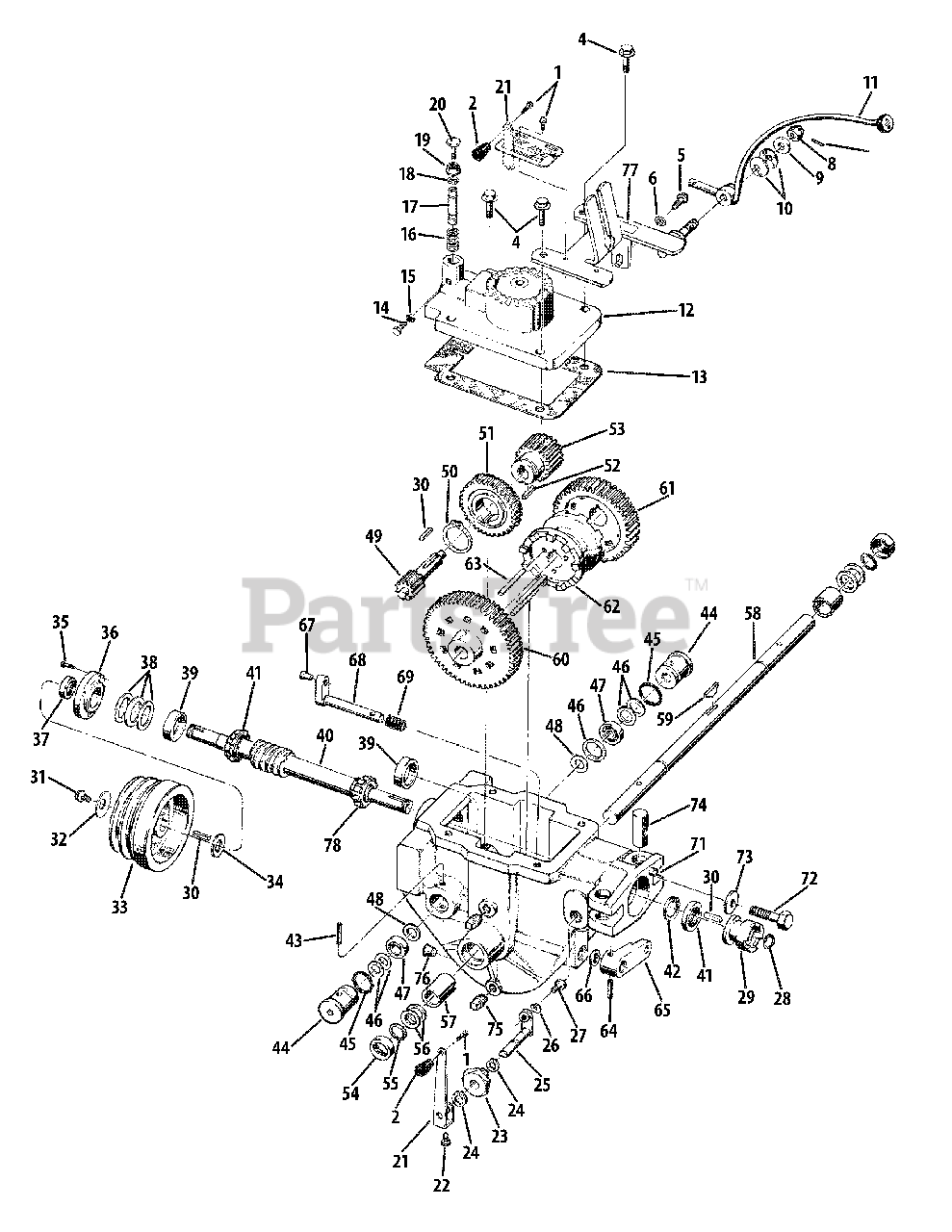

Wheel Shaft Assembly Parts Diagram

  • Title

1

Troy-Bilt 1186299

Hex Bolt, #10-32 x 3/8 "
(Superseded to 710-04454)

$4.49

$

In Stock, only 4 left!

0

2

Troy-Bilt GW-9463

Knob

$11.99

$

In Stock, only 2 left!

0

3

Troy-Bilt GW-2124

Plate
(Superseded to GW-2263)

$52.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 1186349

Hex Flange Bolt, 3/8-16 x 1-1/2"

$3.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 1186329

Hex Flange Bolt, 5/16-18 x 3/4"
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 736-0275

Flat Washer, 5/16"

$6.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt GW-9362

Spring Pin, 1/8 "

$4.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 712-3012

Hex Nut, 1/2-20
(Superseded to 912-3012)

$13.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 736-0326

Flat Washer, .510 x 1.0 x .125

Note: Not shown

$4.49

$

In Stock, only 4 left!

0

9

Troy-Bilt GW-9934

Shoulder Washer, 1/2"

$15.99

$

In Stock, only 1 left!

0

10

Troy-Bilt GW-9932

Disc Spring Washer

$24.99

$

In Stock, only 3 left!

0

11

Troy-Bilt GW-2178

Wheel Speed Shift Lever
(Superseded to GW-2628)

$142.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt GW-2523

Power Unit Transmission Cover
(Superseded to 719-04015P)

$233.99

$

In Stock, only 3 left!

0

13

Troy-Bilt GW-1123

Transmission Cover Gasket

$8.49

$

In Stock, only 4 left!

0

14

Troy-Bilt 710-0376

Hex Bolt, 5/16-18 x 1"

$3.99

$

In Stock, only 4 left!

0

15

Troy-Bilt 712-3010

Hex Nut, 5/16"-18

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 1901439

Plunger Spring

$12.99

$

In Stock, only 4 left!

0

17

Troy-Bilt GW-1035-1

Plunger
(Superseded to GW-1035)

$37.99

$

In Stock, only 3 left!

0

18

Troy-Bilt 1901440

Clip Ring

$5.49

$

In Stock, Qty 19

0

19

Troy-Bilt 712-04065

Flange Lock Nut

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 1902004

Hex Bolt, 3/8 -16x1-1/2"

$8.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 786-04002

Tines/PTO Clutch Lever

$56.99

$

In Stock, only 3 left!

0

22

Troy-Bilt 710-3013

Hex Bolt, 1/4-20 x 1/2"

$4.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 741-04008

Tines/PTO Clutch Bushing

$28.99

$

In Stock, only 1 left!

0

24

Troy-Bilt GW-9516

External Retaining Ring

$4.49

$

In Stock, only 4 left!

0

25

Troy-Bilt GW-2461

Tines/PTO Clutch Shaft

$39.99

$

In Stock, only 3 left!

0

26

Troy-Bilt GW-9911

Hi-Collar Lockwasher, 1/4"

$5.99

$

In Stock, Qty 9

0

27

Troy-Bilt GW-9672

Socket Head Screw, 1/4-20 x 3/8"
(Superseded to 710-04354)

$3.99

$

In Stock, only 4 left!

0

28

Troy-Bilt 716-0101

External Retaining Ring

$3.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 1909139

Dog Clutch
(Superseded to 718-04615)

$53.99

$

In Stock, only 1 left!

0

30

Troy-Bilt GW-9301

Key, 3/16 x 1"

$3.99

$

In Stock, only 3 left!

0

31

Troy-Bilt 1100004

Hex Bolt, 5/16-24 x 3/4"
(Superseded to 710-0157)

$4.49

$

In Stock, Qty 8

0

32

Troy-Bilt GW-9944

Spring Washer, .827 x .331 x .098
(Superseded to 736-04193)

$6.99

$

In Stock, only 1 left!

0

33

Troy-Bilt GW-2107

Transmission Drive Pulley

$145.99

$

In Stock, only 1 left!

0

34

Troy-Bilt GW-50027

Flat Washer, 1-1/4"

$6.99

$

In Stock, Qty 7

0

35

Troy-Bilt 710-04466

Flange Nut, 1/4-20 x .75
(Superseded to 1186310)

$3.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 718-04007

Front Bearing Cap

$18.99

$

In Stock, only 2 left!

0

37

Troy-Bilt 721-04044

Oil Seal
(Superseded to 921-04044)

$9.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 736-04305

Flat Washer, 1.175 x 1.5 x .062

$3.99

$

In Stock, Qty 16

0

38

Troy-Bilt 736-04306

Flat Washer, 1.175 x 1.5 x .005

$4.49

$

In Stock, Qty 6

0

38

Troy-Bilt 736-04307

Flat Washer, 1.175 x 1.5 x .03

$4.49

$

In Stock, only 3 left!

0

38

Troy-Bilt 736-04308

Flat Washer, 1.175 x 1.5 x .01

$4.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 741-04299

Cup Bearing
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

40

Troy-Bilt GW-2655

Main Drive Shaft

$220.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 721-04030

Oil Seal
(Superseded to 921-04030)

$12.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 716-04102

Retaining Ring

$4.49

$

In Stock, Qty 20+

0

43

Troy-Bilt 715-0121

Roll Pin (Spirol), 1/4 x 2

$6.99

$

In Stock, Qty 8

0

44

Troy-Bilt 718-04006

Pinion Bearing

$49.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt GW-9604

O-Ring

$5.49

$

In Stock, Qty 11

0

46

Troy-Bilt 736-04310

Flat Washer, 1.234 x 1.015 x .062

$4.49

$

In Stock, only 2 left!

0

46

Troy-Bilt GW-1132-1

Flat Washer, 1.234 x 1.015 x .033
(Superseded to 736-04386)

$6.99

$

In Stock, Qty 5

0

46

Troy-Bilt GW-1132-3

Flat Washer, 1.234 x 1.015 x .01

$6.99

$

In Stock, Qty 5

0

47

Troy-Bilt GW-9404

Pinion Shaft

$27.99

$

In Stock, only 2 left!

0

48

Troy-Bilt GW-1126

Washer
(Superseded to 936-0272)

$4.99

$

In Stock, Qty 20+

0

49

Troy-Bilt GW-1222

Pinion Stem

$139.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt GW-9502

External Retaining Ring
(Superseded to 716-04119)

$14.99

$

In Stock, only 1 left!

0

51

Troy-Bilt GW-2656

Worm Gear

$147.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt GW-9300

Key, 3/16" x 5/8 "

$3.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt GW-1233

Fast Speed Pinion Gear

$142.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 721-04031

Oil Seal
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 716-04104

External Retaining Ring

$4.49

$

In Stock, Qty 19

0

56

Troy-Bilt 736-04257

Flat Washer, 1.375 x 1.015 x .005

$3.99

$

In Stock, only 2 left!

0

56

Troy-Bilt 736-04258

Flat Washer, 1.375 x 1.015 x .01

$3.99

$

In Stock, Qty 14

0

56

Troy-Bilt 736-04259

Flat Washer, 1.375 x 1.015 x .015

$6.99

$

In Stock, Qty 5

0

56

Troy-Bilt 736-04260

Flat Washer, 1.375 x 1.015 x .03

$6.99

$

In Stock, only 2 left!

0

56

Troy-Bilt 736-04309

Flat Washer, 1.375 x 1.015 x .062

$4.49

$

In Stock, Qty 20+

0

57

Troy-Bilt 741-04300

Bushing, 1.25 x 1.005 x 1.5
(Superseded to 941-04300)

$16.99

$

In Stock, Qty 10

0

58

Troy-Bilt 611-04077

Wheel Shaft
(Superseded to 911-04077)

$186.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 714-04014

Hi-Pro Key, .250 x 1.8125

$20.99

$

In Stock, only 2 left!

0

60

Troy-Bilt GW-1223

Slow Speed Gear

$223.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt GW-1232

Faste Gear Speed

$154.99

$

Usually ships in 3-6 days

0

62

Troy-Bilt GW-1237

Dog Clutch

$162.99

$

Usually ships in 3-6 days

0

63

Troy-Bilt GW-1112

Clutch Guide Pin, 1/4"

$4.99

$

In Stock, Qty 6

0

64

Troy-Bilt 1911372

Roll Pin, 3/16" x 1-1/4"

$3.49

$

Usually ships in 3-6 days

0

65

Troy-Bilt 619-04000

Wheel Speed Shifting Lever
(Superseded to 619-04000-0637)

Variations

Troy-Bilt 619-04000-0637

Eccentric Arm - POWDER BLACK (0637)

$60.99

$

Usually ships in 3-6 days

0

$60.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 721-04034

Oil Seal
(Superseded to 921-04034)

$10.99

$

In Stock, Qty 20+

0

67

Troy-Bilt GW-1442

Wheel Speed Shifting Pin
(Superseded to 738-04448)

$8.49

$

In Stock, Qty 5

0

68

Troy-Bilt 611-04003

Wheel Speed Shifting Shaft

$89.99

$

In Stock, only 1 left!

0

69

Troy-Bilt GW-1441

Spring

$4.49

$

Usually ships in 3-6 days

0

70

Troy-Bilt GW-2109

Transmission Housing
(Superseded to GW-2109099)

$936.99

$

Usually ships in 3-6 days

0

71

Troy-Bilt GW-9359

Alignment Pin

$3.99

$

Usually ships in 3-6 days

0

72

Troy-Bilt 1100067

Hex Bolt, 1/2-13 x 2"

$

$

Not available

73

Troy-Bilt GW-9928

Disc Spring Washer

$12.99

$

Usually ships in 3-6 days

0

74

Troy-Bilt GW-2126

Post

$31.99

$

Usually ships in 3-6 days

0

75

Troy-Bilt 1105620

Pipe Plug, 1/4"

$4.49

$

In Stock, only 4 left!

0

76

Troy-Bilt GW-9122

Plug-Red Plastic

$10.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt GW-2149

Clutch Bracket
(Superseded to 1900870001)

$178.99

$

Usually ships in 3-6 days

0

78

Troy-Bilt 741-04298

Cone Bearing
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 20+

0
