21A-682J066 - Troy-Bilt Rear-Tine Tiller (2008) Drive System Parts Diagram

Rear-Tine Tiller

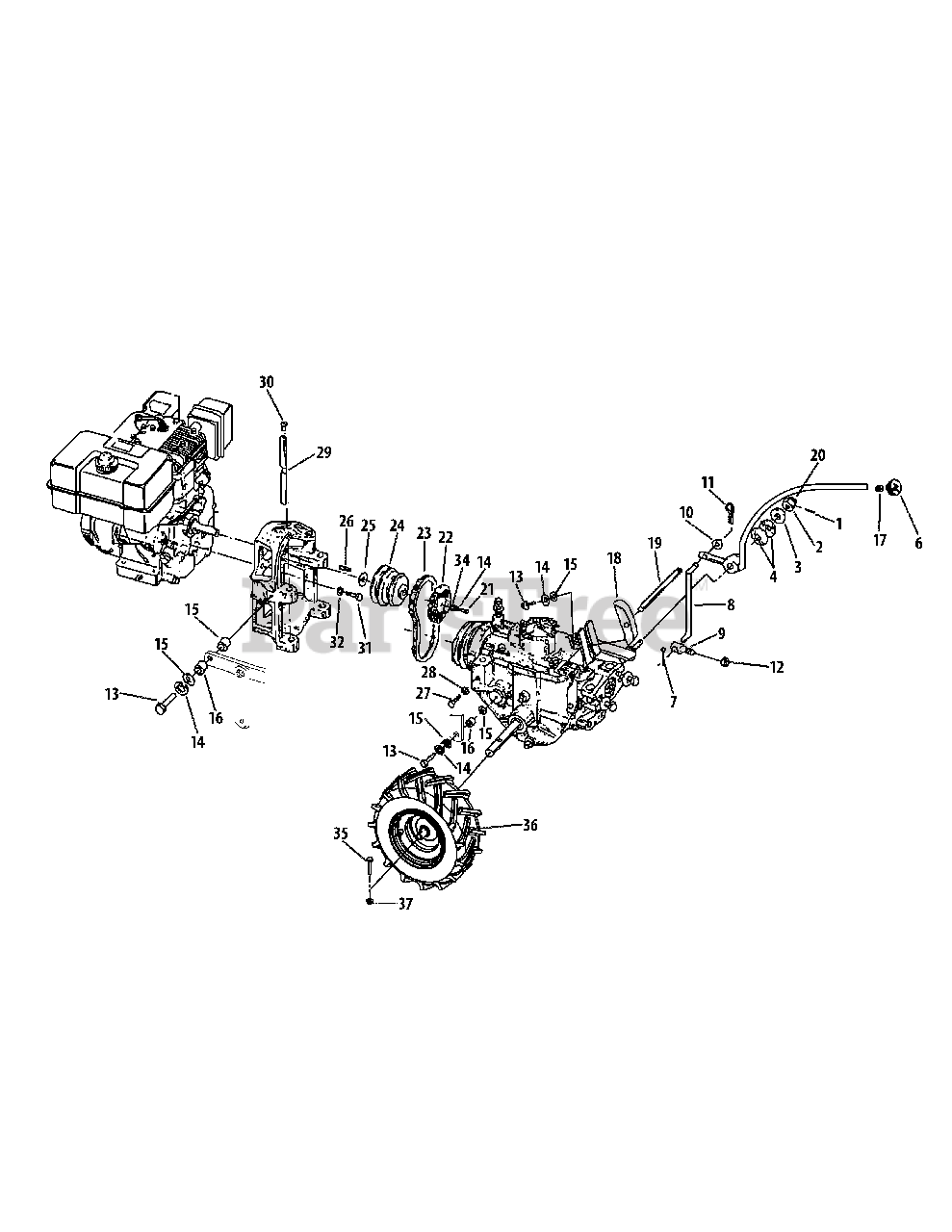

Drive System Parts Diagram

  • Title
1

Troy-Bilt GW-9362

Spring Pin, 1/8"

$4.49

$

Usually ships in 3-6 days

0

2

Troy-Bilt 736-0326

Flat Washer, .510 x 1.0 x .125

$4.49

$

In Stock, only 4 left!

0

3

Troy-Bilt GW-9934

Shoulder Washer, 1/2"

$15.99

$

In Stock, only 1 left!

0

4

Troy-Bilt GW-9932

Disc Spring Washer

$24.99

$

In Stock, only 3 left!

0

5

Troy-Bilt GW-2178

Wheel Speed Shift Lever
(Superseded to GW-2628)

$142.99

$

Usually ships in 3-6 days

0

$23.99

$

In Stock, only 2 left!

0

7

Troy-Bilt GW-9317

Cotter Pin, 3/32" x 1"

$3.99

$

Usually ships in 3-6 days

0

8

N/A

Connecting rod

$

$

Not available

$15.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 736-0275

Flat Washer, 5/16"

$6.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 714-04048

Hair Pin Cotter

$8.49

$

In Stock, only 2 left!

0

12

Troy-Bilt 712-0158

Hex Locknut, 5/16"-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

13

Troy-Bilt 710-0514

Hex Bolt, 3/8 -16 x 1"

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 736-0169

Spring Lockwasher, 3/8 "

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 736-3050

Flat Washer, 3/8 "

$4.49

$

In Stock, Qty 16

0

16

Troy-Bilt GW-1113-1

Spacer Bushing, 19/64"
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

17

Troy-Bilt GW-9120

Retaining Ring

$6.99

$

In Stock, only 1 left!

0

18

Troy-Bilt GW-2102

Belt Adjustment, 3- 7/8"
(Superseded to GW-2102A)

$49.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt GW-2100

Belt Adjustment Rod

$12.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 712-3012

Hex Nut, 1/2-20
(Superseded to 912-3012)

$13.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 710-0539

Hex Bolt, 3/8 -24 x 1.75

$4.99

$

In Stock, Qty 12

0

22

Troy-Bilt 756-04171

Reverse Disc

$67.99

$

In Stock, Qty 15

0

23

Troy-Bilt GW-9245

Forward Drive Belt

$23.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 619-04124

Engine Power Take-off Pulley

$153.99

$

In Stock, only 2 left!

0

25

Troy-Bilt 736-04192

Flat Washer, .766 x 1.0 x .031

$6.99

$

In Stock, only 2 left!

0

25

Troy-Bilt 736-04187

Flat Washer, .766 x 1.0 x .062

Note: Not Shown

$4.99

$

In Stock, Qty 20+

0

26

Troy-Bilt GW-9303

Engine Pulley Key, 3/16"x 2-1/2"

$3.99

$

In Stock, Qty 10

0

27

Troy-Bilt 710-0376

Hex Bolt, 5/16-18 x 1"

$3.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt GW-1034

Engine Mounting Bar
(Superseded to GW-1034A)

$46.99

$

In Stock, Qty 5

0

30

Troy-Bilt GW-9147

Thread Protector Plug

$8.49

$

In Stock, only 1 left!

0

31

Troy-Bilt 710-04458

Hex Bolt, 5/16-24 x 1-1/8 "
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 18

0

32

Troy-Bilt 736-0119

Spring Lockwasher, 5/16"
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 719-04222

Motor Mount
(Superseded to 719-04222-0637)

Variations

Troy-Bilt 719-04222-0637

Motor Mount, Powder Black - POWDER BLACK (0637)

$312.99

$

Usually ships in 3-6 days

0

$312.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 736-3052

Flat Washer, .406 x 1.0 x .105

$4.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 710-0606

Hex Screw, 1/4-20 x 1-1/2"

$5.49

$

In Stock, Qty 10

0

36

Troy-Bilt 634-04231

Wheel Assembly, 16 x 4.6 x 8"
(Superseded to 934-04231)

$257.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 634-04230

Rim Assembly

Note: Not Shown

Variations

Troy-Bilt 634-04230-0499

RIM 8.0" X 3.75" - CUB BEIGE (0499)

$63.99

$

In Stock, only 1 left!

0

Troy-Bilt 634-04230-0662

RIM ASM 8.0 X 3.7 - OYSTER GRAY (0662)

$88.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04230-0729

RIM ASM - 8 X 3.75 - STORM GRAY (0729)

$88.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 734-0808

Tire, 16.2 x 4.6
(Superseded to 734-0808A)

Note: Not Shown

Variations

Troy-Bilt 734-0808-0901

Tire, 16.25 X 4.5-8 Tiller Ag - Carlisle (0901)

$123.99

$

Usually ships in 3-6 days

0

Troy-Bilt 734-0808-0902

Tire, 16.25 X 4.5-8 Tiller Ag - Dico (0902)

$123.99

$

Usually ships in 3-6 days

0

Troy-Bilt 734-0808-0905

Tire, 16.25 X 4.5-8 Tiller Ag - Duro (0905)

$123.99

$

Usually ships in 3-6 days

0

$123.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 712-04064

Hex Flange Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0
