21A-682J066 - Troy-Bilt Rear-Tine Tiller (2008) Depth Regulator & Tine Shield Assembly Parts Diagram

Rear-Tine Tiller

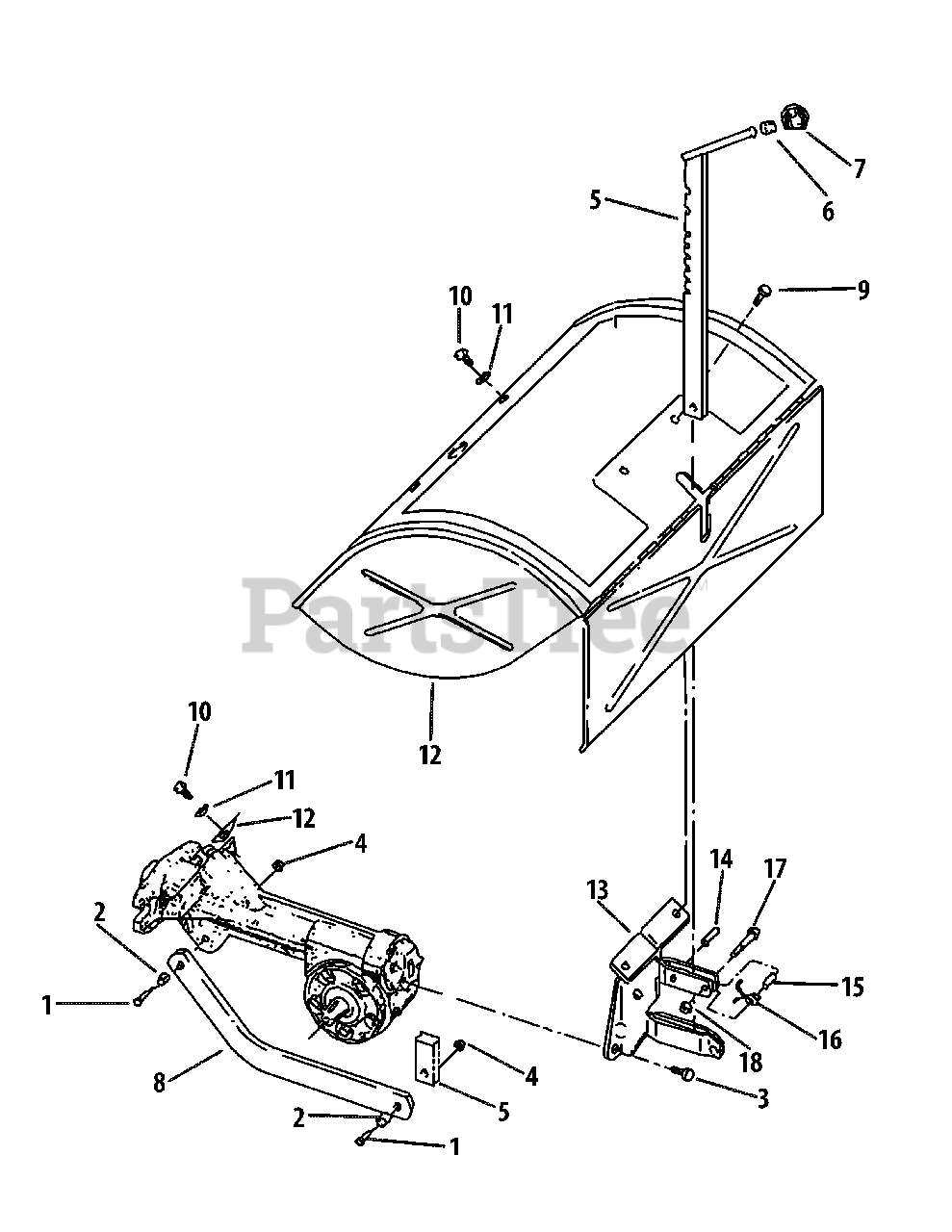

Depth Regulator & Tine Shield Assembly Parts Diagram

  • Title

1

Troy-Bilt 710-3005

Hex Bolt, 3/8 -16 x 1-1/4"

$3.99

$

In Stock, Qty 9

0

2

Troy-Bilt GW-1113-1

Bushing, 19/64"
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-04049

Hex Flange Bolt, 5/16-18 x 5/8 "

$4.99

$

In Stock, Qty 11

0

4

Troy-Bilt 712-04065

Hex Nut, 3/8 "-16

$3.99

$

In Stock, Qty 18

0

5

Troy-Bilt GW-20795

Depth Regulator
(Superseded to 1900864)

$86.99

$

In Stock, only 4 left!

0

6

Troy-Bilt GW-9120

Retaining Ring

$6.99

$

In Stock, only 1 left!

0

7

Troy-Bilt GW-9119

Depth Regulator Knob

$11.99

$

In Stock, only 1 left!

0

8

Troy-Bilt GW-2121

Depth Regulator Bar Drag
(Superseded to 1900867001)

$34.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 710-0599

Thread-forming Screw,1/4-20 x 1/2"

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-04043

Hex Flange Bolt, 5/16-18 x 3/4"

$4.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt GW-9929

Flat Washer, 5/16"

$3.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 1904563

Hood

$426.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt GW-2525

Bracket

$97.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 715-04034

Roll Pin (Spirol), 1/4" x 1"

$6.99

$

In Stock, only 3 left!

0

15

Troy-Bilt 750-04556

Split Spacer

$6.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 732-04320

Spring

$4.49

$

In Stock, Qty 11

0

17

Troy-Bilt 710-0597

Hex Bolt, 1/4-20 x 1"

$3.99

$

In Stock, Qty 14

0

18

Troy-Bilt 712-04064

Locknut, 1/4"-20

$3.99

$

In Stock, Qty 20+

0
