21A-682J063 - Troy-Bilt Rear-Tine Tiller (2002) Depth Regulator & Tine Hood Assemblies Parts Diagram

Rear-Tine Tiller

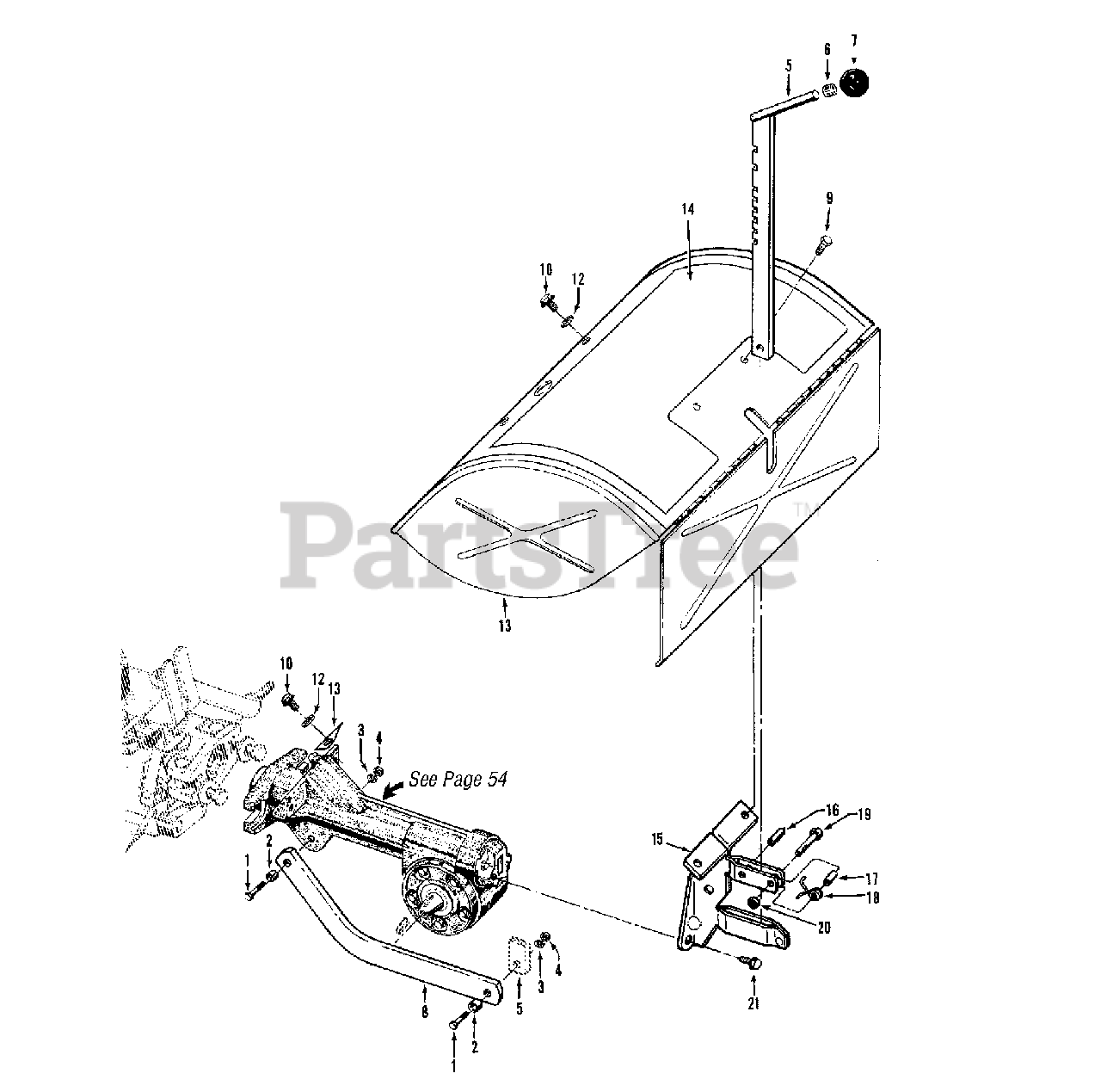

Depth Regulator & Tine Hood Assemblies Parts Diagram

  • Title

1

Troy-Bilt 710-3005

Bolt-hex hd., 3/8-16 x 1-1/4"

$3.99

$

In Stock, Qty 10

0

2

Troy-Bilt GW-1113-1

Bushing-19/64" (.300" lg.)
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 736-0169

Lockwasher-spring lock, 3/8"

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 712-0798

Nut-hex, 3/8"-16

$4.49

$

In Stock, only 2 left!

0

5

Troy-Bilt GW-1117A

Bar-depth regulator
(Superseded to 1900864)

$86.99

$

In Stock, only 4 left!

0

6

Troy-Bilt GW-9120

Ring-retaining

$6.99

$

In Stock, only 1 left!

0

7

Troy-Bilt GW-9119

Knob-depth regulator

$11.99

$

In Stock, only 1 left!

0

8

Troy-Bilt GW-2121

Bar-drag, depth regulator
(Superseded to 1900867001)

$34.99

$

In Stock, only 1 left!

0

9

Troy-Bilt GW-9552

Screw-thread-forming, 1/4-20 x 1/2"
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 1186329

Bolt-flanged hex hd., 5/16-18 x 3/4"
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt GW-9929

Washer-flat, 5/16"

$3.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 1904563

Hood

$426.99

$

Usually ships in 3-6 days

0

14

MTD 1904543

Decal-hood, operating instructions

$

$

Not available

15

Troy-Bilt GW-2527

Bracket

$158.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 1185469

Pin-roll (spirol) 1/4" x 1"
(Superseded to 715-04034)

$6.99

$

In Stock, only 3 left!

0

17

Troy-Bilt GW-9534

Spacer

$4.49

$

In Stock, Qty 8

0

18

Troy-Bilt GW-9384

Spring
(Superseded to 732-04320)

$4.49

$

In Stock, Qty 9

0

19

Troy-Bilt 710-0597

Bolt-hex hd., 1/4-20x1"

$3.99

$

In Stock, Qty 14

0

20

Troy-Bilt 1110106

Locknut-1/4"-20

$

$

Not available

21

Troy-Bilt 1186328

Bolt-flanged hex hd., 5/16-18 x 5/8"
(Superseded to 710-04049)

$4.99

$

In Stock, Qty 11

0
