21A-675B766 - Troy-Bilt Rear-Tine Tiller (2004) Tines & Wheels Parts Diagram

Rear-Tine Tiller

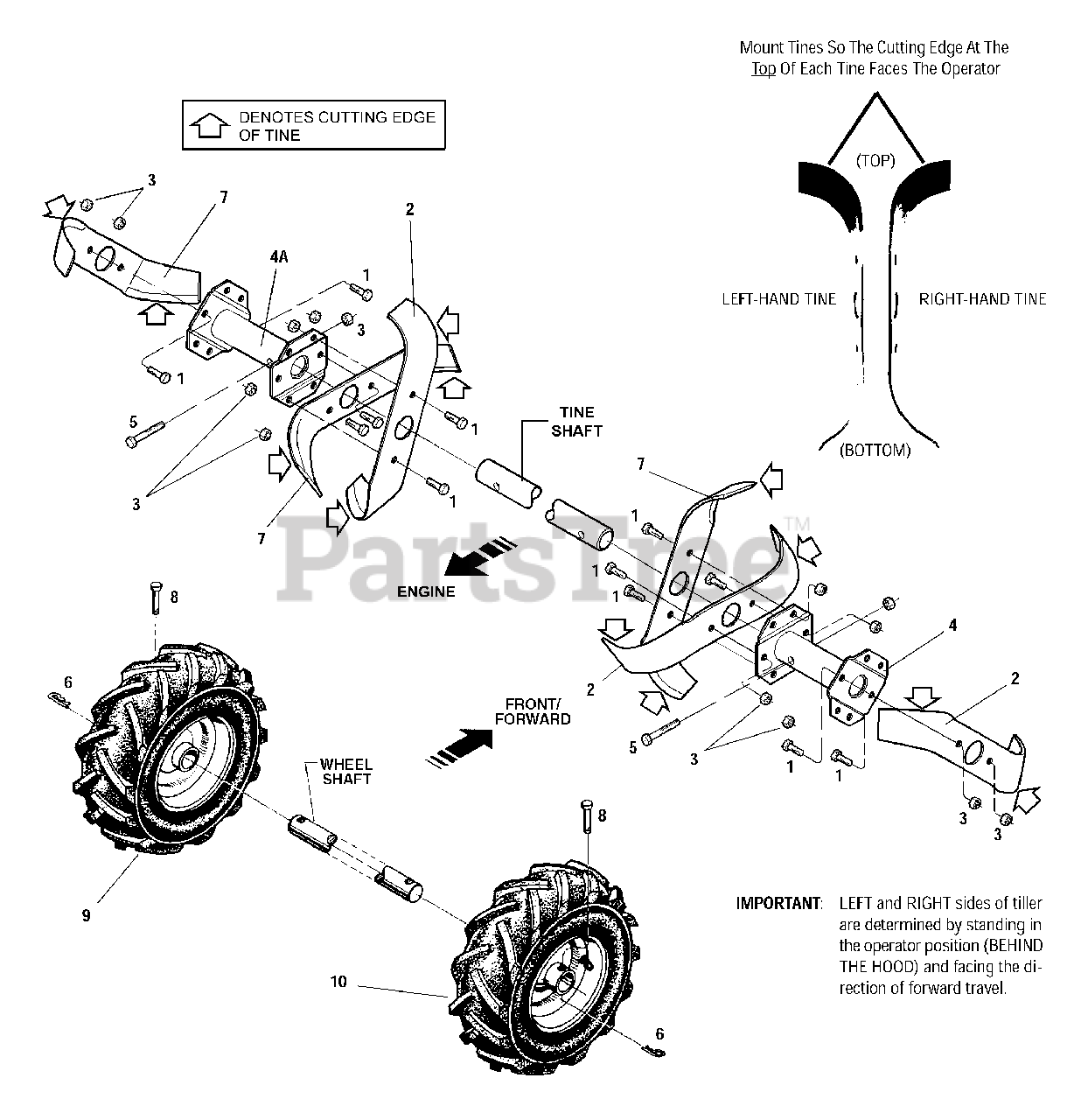

Tines & Wheels Parts Diagram

  • Title
1

Troy-Bilt 710-0216

Hex Hd. Screw, 3/8-16 x 3/4

$4.49

$

In Stock, Qty 16

0

2

MTD 1985101

Tine - right-hand

$

$

Not available

3

Troy-Bilt 712-3000

Hex Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 9

0

4

Troy-Bilt 1916693

Tine Holder, left-side
(Superseded to 1916693001)

$

$

Not available

4A

Troy-Bilt 1916694

Tine Holder, right-side
(Superseded to 1916694001)

$

$

Not available

5

Troy-Bilt 710-3096

Hex Hd. Screw, 3/8-16 x 2, Grade 8

$7.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt GW-9338

Hitch Pin
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0

7

Troy-Bilt 1985100

Tine - left-hand

$24.99

$

In Stock, only 4 left!

0

8

Troy-Bilt GW-9380

Clevis Pin, .312 x 1-3/4 long
(Superseded to 711-04126)

$4.49

$

In Stock, only 3 left!

0

9

MTD 634-04033

Wheel & Tire Assy., left-side

$

$

Not available

10

MTD 634-04032

Wheel & Tire Assy., right-side
(Superseded to 934-04032)

$

$

Not available
