21A-675B766 - Troy-Bilt Rear-Tine Tiller (2004) Handlebar Assembly Parts Diagram

Rear-Tine Tiller

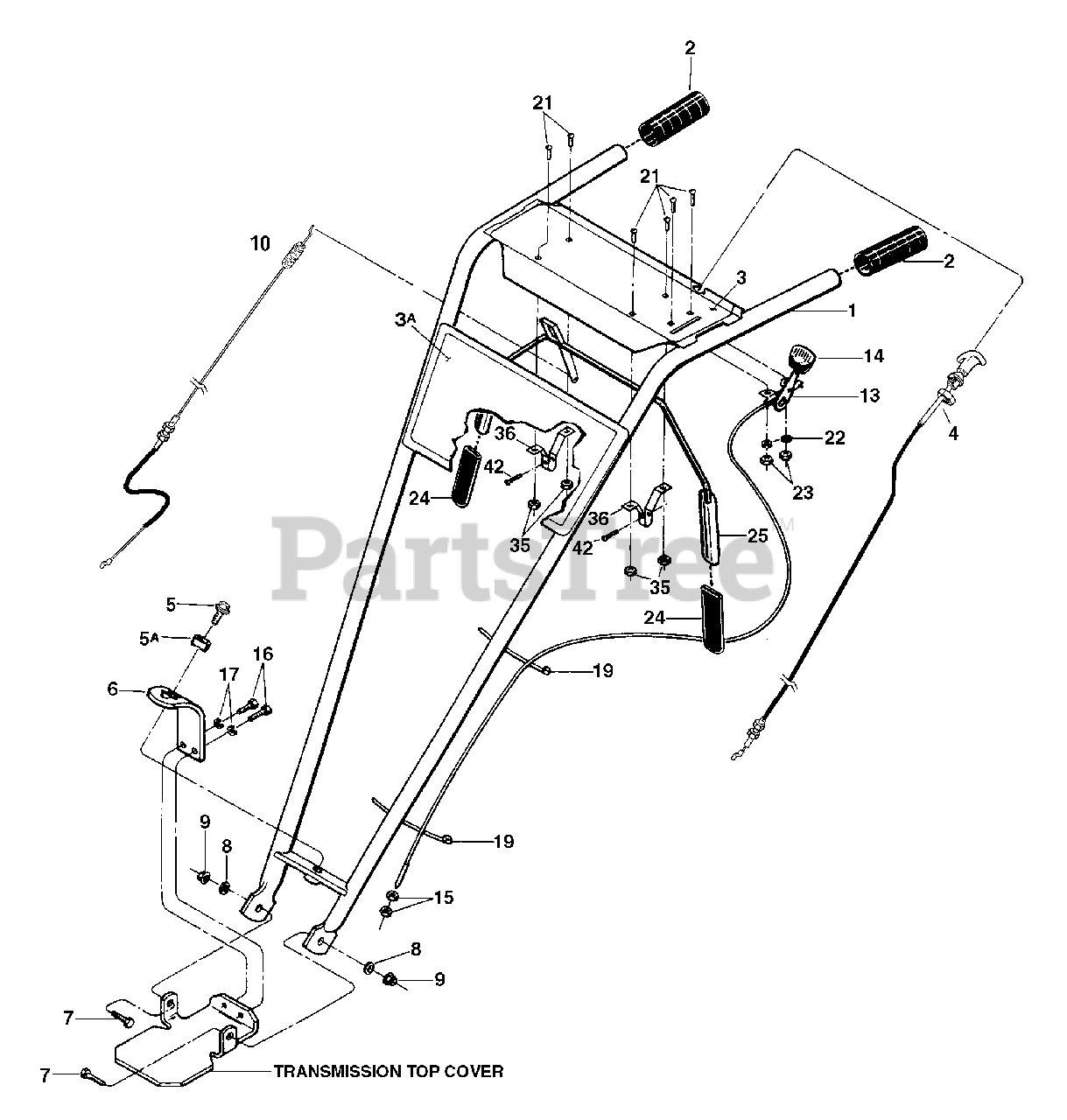

Handlebar Assembly Parts Diagram

  • Title
1

Troy-Bilt 1918801

Handlebars
(Superseded to 1918811P)

$346.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt GW-9126

Grip
(Superseded to 720-0274)

$11.99

$

In Stock, Qty 11

0

3

Troy-Bilt 777I22071

Decal, Control Panel

$

$

Not available

3A

MTD 777D06865

Decal, Model Name/Logo

$

$

Not available

4

Troy-Bilt 1916784

Reverse Clutch Control Cable
(Superseded to 1916784P)

$68.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 1186347

Height Adjustment Screw
(Superseded to 710-04042)

$4.99

$

In Stock, only 2 left!

0

5A

Troy-Bilt GW-9955

Washer, Keyed
(Superseded to 736-04445)

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 1900475

Bracket, Handlebar Height Adjustment
(Superseded to 1900475010)

$21.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 710-0514

Hex Hd. Screw, 3/8-16 x 1

Note: Specify GRADE 5 if ordering part locally.

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 736-3050

Washer, Plain (flat) 3/8, S.A.E.

$4.49

$

In Stock, Qty 16

0

9

Troy-Bilt 712-3000

Hex Locknut, 3/8-16

$4.49

$

In Stock, Qty 9

0

10

Troy-Bilt 746-04027

Forward Clutch Control Cable
(Superseded to 946-04027)

$44.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 1916639

Wheel Clutch Control
(Superseded to 1916639P)

$

$

Not available

14

Troy-Bilt GW-9057

Knob, Wheel Gear Control Lever

$8.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 1186211

Hex Nut, 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

16

Troy-Bilt GW-90064

Hex Hd. Screw, 3/8-16 x 3/4
(Superseded to 710-0623)

Note: Specify GRADE 5 if ordering part locally.

$4.49

$

In Stock, only 2 left!

0

17

Troy-Bilt 736-0169

Lockwasher, 3/8

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 725-0157

Cable Ties, Plastic

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 1114748

Round Hd. Screw, #10-32 x 1/2

$5.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 1100240

Lockwasher, #10

$

$

Not available

23

Troy-Bilt 1186208

Hex Nut, #10-32

$6.49

$

Usually ships in 3-6 days

0

$4.99

$

In Stock, only 3 left!

0

25

Troy-Bilt 1918802

Bail, Forward Clutch Control
(Superseded to 1918840)

$116.99

$

Usually ships in 3-6 days

0

35

$6.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt GW-20806

Bracket, Bail Support

$8.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 710-0599

Flange Screw, Self-tapping, 1/4-20 x 1/2

Note: Specify GRADE 5 if ordering part locally.

$4.49

$

In Stock, Qty 20+

0
