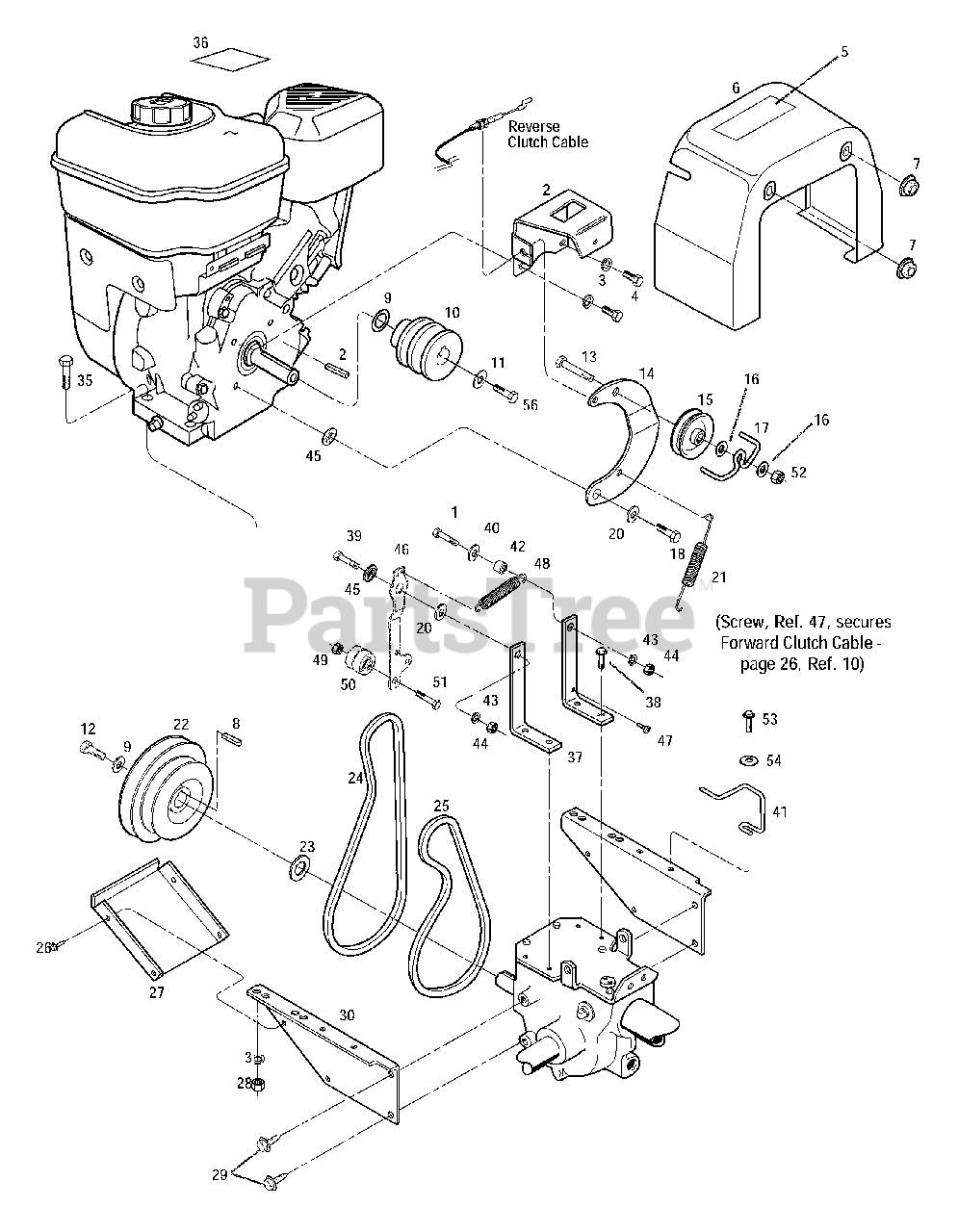

21A-675B063 - Troy-Bilt Rear-Tine Tiller (2003) Engine, Support Brackets, Pulleys, Belts, Belt Cover Parts Diagram

Rear-Tine Tiller

Engine, Support Brackets, Pulleys, Belts, Belt Cover Parts Diagram

  • Title
1

Troy-Bilt 710-0395

Hex Hd. Screw, 5/16-18 x 2-1/4

$4.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 1917326

Bracket, Clutch Cable
(Superseded to 786-04070-0637)

$

$

Not available

3

Troy-Bilt 736-0119

Lockwasher-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0107

Hex Hd. Screw, 5/16-24 x 1/2

$3.49

$

Usually ships in 3-6 days

0

5

MTD 777S30651

Decal, Hot Surfaces/Belt Warning

$

$

Not available

6

Troy-Bilt 1917139

Cover
(Superseded to 731-05290)

Note: (Incl. Ref. 5)

$26.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 1108841

Key, 3/16 x 1-1/2
(Superseded to 914-0133)

$

$

Not available

9

Troy-Bilt GW-1138-1

Shim
(Superseded to 736-04187)

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1916520

Pulley, Engine Drive
(Superseded to 619-04130)

$55.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt GW-9944

Belleville Washer
(Superseded to 736-04193)

$6.99

$

In Stock, only 1 left!

0

12

Troy-Bilt GW-9572

Hex Hd. Screw, 5/16-24 x 1-1/8
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 18

0

13

Troy-Bilt 710-3103

Hex Hd. Screw, 5/16-18 x 2

$4.49

$

In Stock, only 4 left!

0

14

Troy-Bilt 1918731

Reverse Idler Arm
(Superseded to 786-04276)

$16.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 1916535

Pulley, Reverse Idler
(Superseded to 756-04169)

$25.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 1107382

Flat Washer, 5/16
(Superseded to 936-0275)

$

$

Not available

17

Troy-Bilt 1916725

Belt Guide, Wire Formed
(Superseded to 732-04081)

$10.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 710-0117

Hex Head Screw, 5/16-24 x 1
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 5

0

?19

Troy-Bilt 1917746

Washer, Shoulder
(Superseded to 748-04087A)

$6.49

$

In Stock, Qty 9

0

20

Troy-Bilt GW-9929

Washer, Flat, 1-1/8

$3.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 1916728

Spring, Reverse Return
(Superseded to 732-04077)

$10.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 1916522

Transmission Pulley
(Superseded to 619-04123)

$165.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt GW-1440

Support Washer
(Superseded to 736-04079)

$4.99

$

In Stock, Qty 6

0

24

Troy-Bilt 1918812

Reverse Clutch Belt
(Superseded to 954-04095)

$18.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 1909404

Forward Clutch Belt
(Superseded to 954-04094)

$30.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 1900396

Self-tapping Screw, #10-32 x 1/2

$5.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt GW-20339

Guard, Belts/Pulleys
(Superseded to 786-04080-0638)

$20.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 712-0267

Hex Nut, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 1186329

Hex Flange Screw, 5/16-18 x 3/4
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

30

Troy-Bilt 1916797

Engine Support Bracket, left side
(Superseded to 786-04066-0637)

$44.99

$

In Stock, only 1 left!

0

?31

Troy-Bilt 1916796

Engine Support Bracket, right side
(Superseded to 786-04067-0637)

$26.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 710-0805

Hex Hd. Screw, 5/16-18 x 1-1/2
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

36

MTD 777I20942

Decal, Stabilization

$

$

Not available

37

Troy-Bilt 1918774

Mounting Bar
(Superseded to 1918774001)

$14.99

$

In Stock, only 1 left!

0

38

Troy-Bilt GW-90063

Hex Flange Screw, 5/16-18 x 1
(Superseded to 710-0602)

$4.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 710-3037

Hex Hd. Screw, 5/16-18 x 2-1/4
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 736-0275

Flat Washer, 5/16'

$6.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 1918846

Belt Guide, Pony
(Superseded to 732-04082)

$11.99

$

In Stock, only 1 left!

0

42

Troy-Bilt GW-55088

Pivot Bushing

$

$

Not available

43

Troy-Bilt 736-0119

Lockwasher, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 712-0267

Hex Nut, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

45

Troy-Bilt 1917746

Washer, Shoulder
(Superseded to 748-04087A)

$6.49

$

In Stock, Qty 9

0

46

Troy-Bilt 1918744

Idler Arm, Forward Tiller Direction
(Superseded to 786-04275-0637)

$35.99

$

In Stock, only 1 left!

0

47

Troy-Bilt 1767754

Screw, self tapping, #10-24
(Superseded to 710-04460)

$

$

Not available

48

Troy-Bilt 1916727

Spring
(Superseded to 732-04078)

$

$

Not available

49

Troy-Bilt 712-3000

Hex Locknut, 5/16-18

$4.49

$

In Stock, Qty 9

0

50

Troy-Bilt GW-9090

Idler Pulley, Forward
(Superseded to 756-04170)

$35.99

$

In Stock, only 2 left!

0

51

Troy-Bilt 710-0347

Screw, 3/8-16 x 1-3/4

$5.49

$

In Stock, Qty 20+

0

52

Troy-Bilt 712-0158

Hex Lock Nut, 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

53

Troy-Bilt 1754128

Screw, 1/4-20 x 3/4

$3.99

$

In Stock, only 2 left!

0

54

Troy-Bilt 736-0463

Flat Washer-1/4

$4.49

$

In Stock, only 2 left!

0

56

UNKNOWN

$

$

Not available
