21A-675B063 - Troy-Bilt Rear-Tine Tiller (2003) Drive Shaft, Input Pinion Shaft And Gear Assemblies Parts Diagram

Rear-Tine Tiller

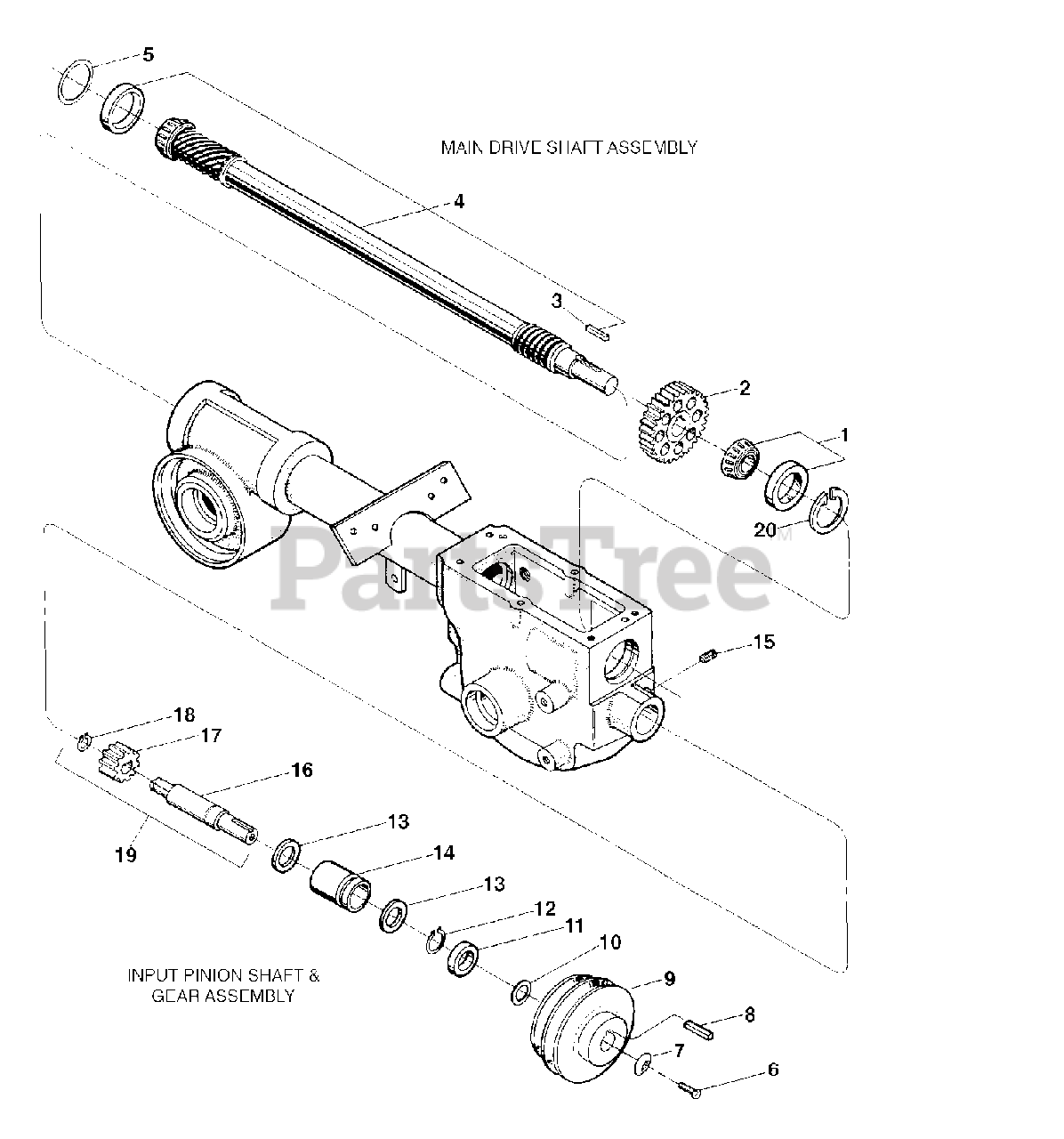

Drive Shaft, Input Pinion Shaft And Gear Assemblies Parts Diagram

  • Title

1

Troy-Bilt GW-1714

Bearing, Tapered Roller with Race
(Superseded to 941-0107)

Note: MAIN DRIVE SHAFT

$47.99

$

In Stock, Qty 18

0

2

Troy-Bilt GW-20718

Spur Gear
(Superseded to 717-04690)

Note: MAIN DRIVE SHAFT

$39.99

$

In Stock, only 1 left!

0

3

Troy-Bilt GW-9301

Key, 3/16 sq. x 1

Note: MAIN DRIVE SHAFT

$3.99

$

In Stock, only 3 left!

0

4

Troy-Bilt 1916597

Main Drive Shaft
(Superseded to 1916765)

Note: (Drive shaft is one-piece with integral, single-lead, work-hardened front worm, and integral, six-lead, work-hardened rear worm. Also includes pressed-on GW-1714 and GW-9301); MAIN DRIVE SHAFT

$244.99

$

In Stock, only 1 left!

0

5

Troy-Bilt GW-1224-1

Shim, Rear Bearing Cap, .010" thick
(Superseded to 736-04308)

Note: MAIN DRIVE SHAFT

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt GW-1224-2

Shim, same as above, but .030" thick
(Superseded to 736-04307)

Note: MAIN DRIVE SHAFT

$4.49

$

In Stock, only 3 left!

0

5

Troy-Bilt GW-1224-3

Shim, same as above, but .005" thick
(Superseded to 736-04306)

Note: MAIN DRIVE SHAFT

$4.49

$

In Stock, Qty 6

0

Troy-Bilt GW-1325C

Shim Set

Note: (Incl. two GW-1224-1; two 1224-2 and one GW-1224-3); MAIN DRIVE SHAFT

$15.99

$

In Stock, only 2 left!

0

6

Troy-Bilt GW-9572

Hex Hd. Screw, 5/16-24 x 1-1/8
(Superseded to 710-0672)

Note: INPUT PINION SHAFT & GEAR ASSEMBLY

$4.49

$

In Stock, Qty 18

0

7

Troy-Bilt GW-9944

Washer, Disc Spring (concave surface faces pulley)
(Superseded to 736-04193)

Note: INPUT PINION SHAFT & GEAR ASSEMBLY

$6.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 1108841

Key, 3/16 sq. x 1-1/2
(Superseded to 914-0133)

Note: INPUT PINION SHAFT & GEAR ASSEMBLY

$

$

Not available

9

Troy-Bilt 1916522

Transmission Drive Pulley
(Superseded to 619-04123)

Note: INPUT PINION SHAFT & GEAR ASSEMBLY

$165.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt GW-1440

Support Washer
(Superseded to 736-04079)

Note: INPUT PINION SHAFT & GEAR ASSEMBLY

$4.99

$

In Stock, Qty 6

0

11

Troy-Bilt 721-04044

Oil Seal, Input Pinion Shaft
(Superseded to 921-04044)

Note: INPUT PINION SHAFT & GEAR ASSEMBLY

$9.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 1113527

Retaining Ring (external)
(Superseded to 916-0101)

Note: INPUT PINION SHAFT & GEAR ASSEMBLY

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt GW-9953

Thrust Washer

Note: INPUT PINION SHAFT & GEAR ASSEMBLY

$

$

Not available

14

Troy-Bilt GW-9428

Bushing

Note: INPUT PINION SHAFT & GEAR ASSEMBLY

$37.99

$

In Stock, only 1 left!

0

15

Troy-Bilt GW-9677

Set Screw, 5/16-18 x 3/8

Note: INPUT PINION SHAFT & GEAR ASSEMBLY

$3.49

$

In Stock, only 2 left!

0

16

Troy-Bilt GW-20791

Input Pinion (steel shaft)
(Superseded to 711-05388)

Note: INPUT PINION SHAFT & GEAR ASSEMBLY

$84.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt GW-20792

Input Pinion Gear
(Superseded to 717-04689)

Note: INPUT PINION SHAFT & GEAR ASSEMBLY

$22.99

$

In Stock, only 1 left!

0

18

Troy-Bilt GW-9093

Retaining Ring (external)

Note: INPUT PINION SHAFT & GEAR ASSEMBLY

$6.99

$

In Stock, only 1 left!

0

19

Troy-Bilt GW-20799

Pinion Assy.

Note: (Incl. one each Refs. 16, 17 and 18; INPUT PINION SHAFT & GEAR ASSEMBLY

$

$

Not available

20

Troy-Bilt GW-9517

Retaining Ring (internal)
(Superseded to 716-04102)

Note: INPUT PINION SHAFT & GEAR ASSEMBLY

$4.49

$

In Stock, Qty 20+

0

$

$
