21A-665B766 - Troy-Bilt Pro-Line FRT Rear-Tine Tiller (2013) Tine & Drive Assembly Parts Diagram

Pro-Line FRT Rear-Tine Tiller

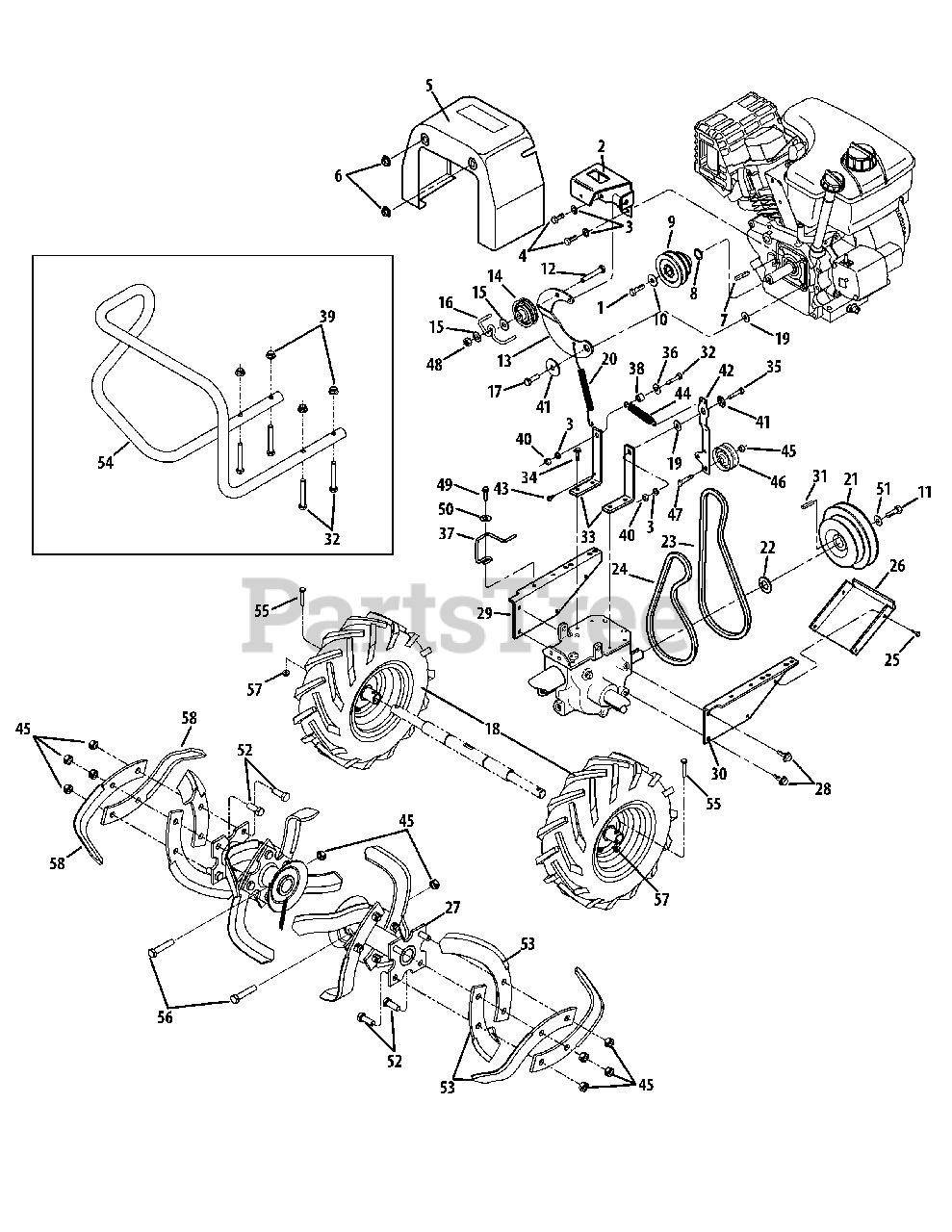

Tine & Drive Assembly Parts Diagram

  • Title

1

Troy-Bilt 710-0672

Screw, 5/16-24 x 1.25

$4.49

$

In Stock, Qty 18

0

2

Troy-Bilt 786-04070-0637

Clutch Cable Bracket

$

$

Not available

3

Troy-Bilt 936-0119

Lockwasher, 5/16

$4.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0107

Hex Head Screw, 5/16-24 x 1/2

$3.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 731-05290

Cover

$26.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 914-0133

Key, 3/16 x 15
(Superseded to 714-0133)

$

$

Not available

8

Troy-Bilt 736-04187

Shim

$4.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 619-04130

Engine Pulley

$55.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 736-04193

Belle Washer 827 x 331 x 098

$6.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-0672

Hex Head Screw, 5/16-24 x 125

$4.49

$

In Stock, Qty 18

0

12

Troy-Bilt 710-3103

Hex Head Screw, 5/16-18 x 2

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 786-04276

Reverse Idler Arm

$16.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 756-04169

Reverse Idler Pulley

$25.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 936-0159

Flat Washer, 5/16
(Superseded to 736-0159)

$

$

Not available

16

Troy-Bilt 732-04081

Wire Formed Belt Guide

$10.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 710-0888

Hex Head Screw, 5/16-24 x 1

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 934-04232

Wheel Assembly, 13 x 5 x 6

$172.99

$

In Stock, only 3 left!

0

19

Troy-Bilt 736-3078

Flat Washer, 1-1/8

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 732-04077

Reverse Return Spring

$10.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 619-04123

Transmission Pulley

$165.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 736-04079

Support Washer

$4.99

$

In Stock, Qty 7

0

23

Troy-Bilt 954-04095

Reverse Clutch Belt

$18.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 954-04094

Forward Clutch Belt

$30.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 1900396

Self-tapping Screw, #10-32 x 1/2

$5.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 786-04080-0638

Belts/Pulleys Guard

$20.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 686-04067-0638

Tine Holder

$102.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 710-04043

Hex Flange Screw, 5/16-18 x 3/4

$4.49

$

Usually ships in 3-6 days

0

29

Troy-Bilt 1916797001

Engine Support Bracket (left side)
(Superseded to 786-04066-0637)

$44.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 786-04067-0637

Engine Support Bracket (right side)

$26.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 914-0133

Key, 3/16 x 150
(Superseded to 714-0133)

$

$

Not available

32

Troy-Bilt 710-0395

Hex Head Screw, 5/16-18 x 2-1/4

$4.99

$

In Stock, only 1 left!

0

33

Troy-Bilt 1918774001

Mounting Bar

$14.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 710-1260A

Hex Flange Screw, 5/16-18 x 75

$3.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 710-0805

Hex Head Screw, 5/16-18 x 1-1/2
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 936-0275

Flat Washer, 5/16
(Superseded to 736-0275)

$

$

Not available

37

Troy-Bilt 732-04082

Belt Guide

$11.99

$

In Stock, only 1 left!

0

38

Troy-Bilt GW-55088

Pivot Bushing

$

$

Not available

39

Troy-Bilt 712-04063

Hex Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 912-3010

Hex Nut, 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

41

Troy-Bilt 748-04087A

Shoulder Washer

$6.49

$

In Stock, Qty 9

0

42

Troy-Bilt 786-04275-0637

Forward Tiller Direction Idler Arm

$35.99

$

In Stock, only 1 left!

0

43

Troy-Bilt 1767754

Self-tapping Screw, #10-24
(Superseded to 710-04460)

$

$

Not available

44

Troy-Bilt 732-04078

Spring

$

$

Not available

45

Troy-Bilt 912-3000

Hex Locknut, 5/16-18
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

46

Troy-Bilt 756-04170

Forward Idler Pulley

$35.99

$

In Stock, only 2 left!

0

47

Troy-Bilt 710-0347

Screw, 3/8-16 x 1-3/4

$5.49

$

In Stock, Qty 20+

0

48

Troy-Bilt 912-0158

Hex Lock Nut, 5/16-18

$3.49

$

In Stock, Qty 18

0

49

Troy-Bilt 1754128

Screw, 1/4-20 x 3/4

$3.99

$

In Stock, only 2 left!

0

50

Troy-Bilt 936-0463

Flat Washer, 1/4
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 12

0

51

Troy-Bilt 736-04193

Belleville Washer, .827 x .331 x .098

$6.99

$

In Stock, Qty 20+

0

52

Troy-Bilt 710-0514

Hex Head Screw, 3/8-16 x 1

$4.49

$

In Stock, Qty 20+

0

53

Troy-Bilt 742-04223-0638

Bolo Tine-single (Left)
(Superseded to 742-04223-0637)

$27.99

$

In Stock, Qty 13

0

54

Troy-Bilt 749-04193-0637

Bumper

$54.99

$

In Stock, Qty 6

0

55

Troy-Bilt 710-05289

Hex Head Screw, 1/4-20 x 15

$5.99

$

In Stock, Qty 20+

0

56

Troy-Bilt 710-3096

Hex Head Screw, 3/8-16 x 2

$7.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 712-04064

Flange Hex Locknut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

58

Troy-Bilt 742-04224-0638

Bolo Tine-single (Right)
(Superseded to 742-04224-0637)

$27.99

$

In Stock, Qty 20+

0
