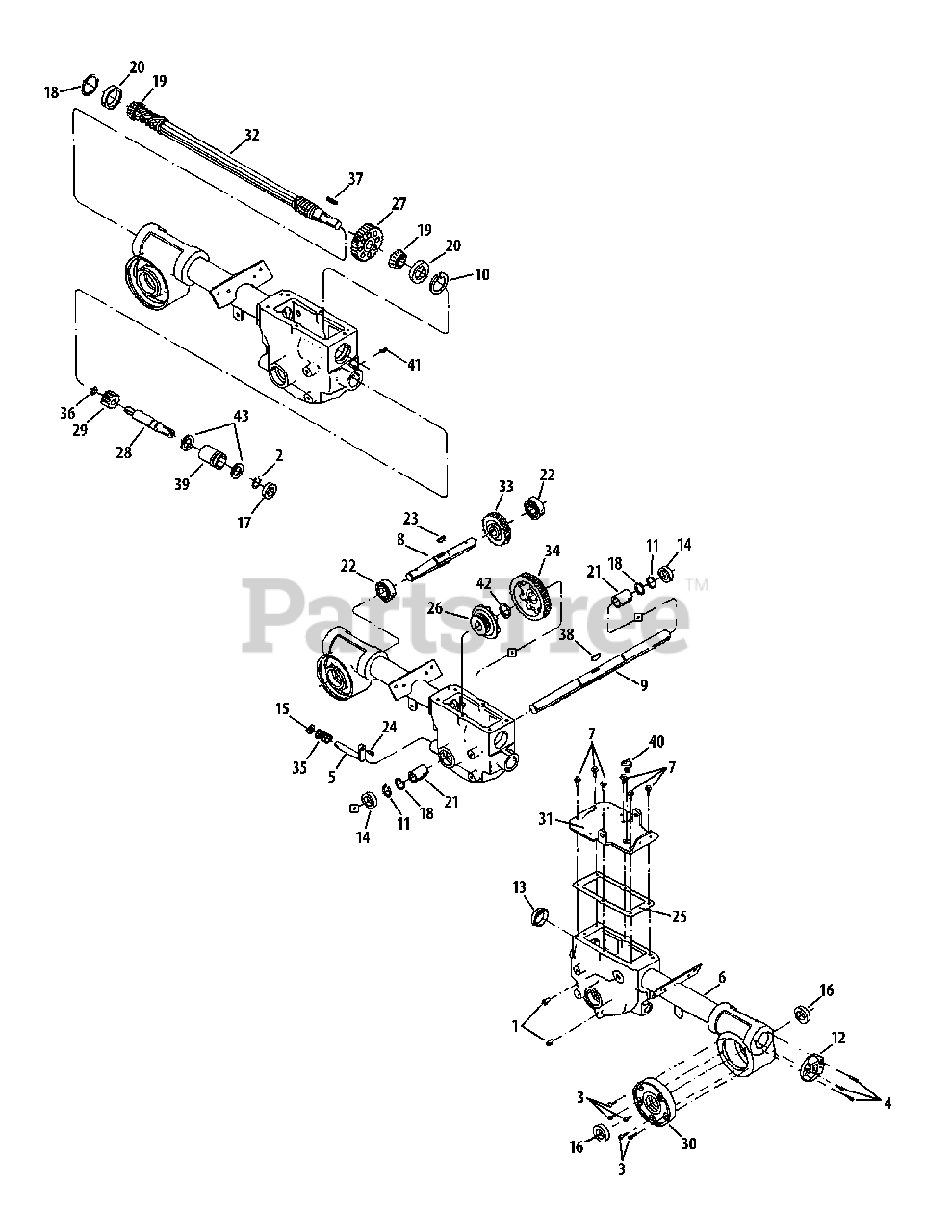

21A-665B766 - Troy-Bilt Pro-Line FRT Rear-Tine Tiller (2009) Transmission Assembly Parts Diagram

Pro-Line FRT Rear-Tine Tiller

Transmission Assembly Parts Diagram

  • Title

1

Troy-Bilt 1105620

Pipe Plug

$4.49

$

In Stock, only 3 left!

0

2

Troy-Bilt 916-0101

Retaining Ring
(Superseded to 716-0101)

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 1915068

Hex Screw, 1.4-20 x .625

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 1915069

Self-Sealing Screw, 1.4-20 x .875

$4.49

$

In Stock, only 3 left!

0

5

Troy-Bilt 611-04002

Eccentric Shaft

$81.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 919-04010

Transmission Housing

$456.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 710-04043

Hex Flange Screw, 5.16-18 x .750

$4.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt GW-20896

Tiller Shaft

$110.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 911-04482

Wheel Shaft

$134.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 716-04102

Retaining Ring

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 716-04104

Retaining Ring

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 718-04406

Rear Bearing Cover

$50.99

$

In Stock, Qty 5

0

13

Troy-Bilt 721-04001

Oil Seal, 1.79 x .25

$10.99

$

In Stock, only 3 left!

0

14

Troy-Bilt 921-04031

Oil Seal, 1.0 x 1.499

$10.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 921-04034

Oil Seal, .625 x 1.0

$10.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 921-04035

Oil Seal, .984 x 1.75

$11.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 921-04044

Oil Seal, .750 x 125

$9.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 736-04258

Washer, 1.375 x 1.015 x .01

Note: Washers of multiple thickness are used as required toobtain a thickness of .005" to .015" of allowable end-play in thedrive shaft.

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 736-04259

Washer, 1.375 x 1.015 x .015

Note: Washers of multiple thickness are used as required toobtain a thickness of .005" to .015" of allowable end-play in thedrive shaft.

$6.99

$

In Stock, Qty 5

0

18

Troy-Bilt 736-04260

Washer, 1.375 x 1.015 x .03

Note: Washers of multiple thickness are used as required toobtain a thickness of .005" to .015" of allowable end-play in thedrive shaft.

$6.99

$

In Stock, only 2 left!

0

18

Troy-Bilt 736-04305

Washer, 1.75 x 1.5 x .062

Note: Washers of multiple thickness are used as required toobtain a thickness of .005" to .015" of allowable end-play in thedrive shaft.

$3.99

$

In Stock, Qty 13

0

18

Troy-Bilt 736-04306

Washer, 1.75 x 1.5 x .005

Note: Washers of multiple thickness are used as required toobtain a thickness of .005" to .015" of allowable end-play in thedrive shaft.

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 736-04307

Washer, 1.75 x 1.5 x .03

Note: Washers of multiple thickness are used as required toobtain a thickness of .005" to .015" of allowable end-play in thedrive shaft.

$4.49

$

In Stock, only 3 left!

0

18

Troy-Bilt 736-04308

Washer, 1.75 x 1.5 x .01

Note: Washers of multiple thickness are used as required toobtain a thickness of .005" to .015" of allowable end-play in thedrive shaft.

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 736-04309

Washer, 1.375 x 1.015 x .062

Note: Washers of multiple thickness are used as required toobtain a thickness of .005" to .015" of allowable end-play in thedrive shaft.

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 941-04298

Cone Bearing

$16.99

$

In Stock, Qty 18

0

20

Troy-Bilt 941-04299

Cup Bearing

$6.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 941-04300

Bushing, 1.25 x 1 x .005 x 1.5

$16.99

$

In Stock, Qty 6

0

22

Troy-Bilt 941-3037

Ball Bearing

$41.99

$

In Stock, Qty 14

0

23

Troy-Bilt GW-1104

Woodruff Key, .25 x 1.12

$9.49

$

In Stock, Qty 20+

0

24

Troy-Bilt GW-1442

Pin, .375 x .72
(Superseded to 738-04448)

$8.49

$

In Stock, Qty 5

0

25

Troy-Bilt GW-20694

Transmission Cover Gasket
(Superseded to GW-20694P)

$5.49

$

In Stock, only 4 left!

0

26

Troy-Bilt GW-20712

Wheel Drive Clutch

$89.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt GW-20718

Spur Gear
(Superseded to 717-04690)

$39.99

$

In Stock, only 1 left!

0

28

Troy-Bilt GW-20791

Pinion Shaft
(Superseded to 711-05388)

$84.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt GW-20792

Pinion Gear
(Superseded to 717-04689)

$22.99

$

In Stock, only 1 left!

0

30

Troy-Bilt GW-20873

Housing Cover

$108.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 1916193001

Transmission Cover

$53.99

$

In Stock, only 1 left!

0

32

Troy-Bilt GW-20912

Drive Shaft

$297.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt GW-20913

Worm Gear

$201.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt GW-20914

Wheel Drive Gear

$194.99

$

In Stock, only 1 left!

0

35

Troy-Bilt GW-9055

Spring, .850 x .875

$7.49

$

In Stock, only 1 left!

0

36

Troy-Bilt GW-9093

Bowed Ring

$6.99

$

In Stock, only 1 left!

0

37

Troy-Bilt GW-9301099

Key, .188 x 1
(Superseded to GW-9301)

$3.99

$

In Stock, Qty 20+

0

38

Troy-Bilt GW-9373

Hi-Pro Key, .25 x 1.312

$10.99

$

In Stock, only 3 left!

0

39

Troy-Bilt GW-9428

Bushing, 1.24 x .75 x .18

$37.99

$

In Stock, only 1 left!

0

40

Troy-Bilt GW-9467

Oil Plug

$5.49

$

In Stock, only 1 left!

0

41

Troy-Bilt GW-9677

Hex Screw, 5.16-18 x .38

$3.49

$

In Stock, only 2 left!

0

42

Troy-Bilt GW-9935

Washer, 1.46 x 1.016 x .062

$3.99

$

In Stock, only 1 left!

0

43

Troy-Bilt GW-9953

Washer, 1.022 x .75 x .059

$

$

Not available
