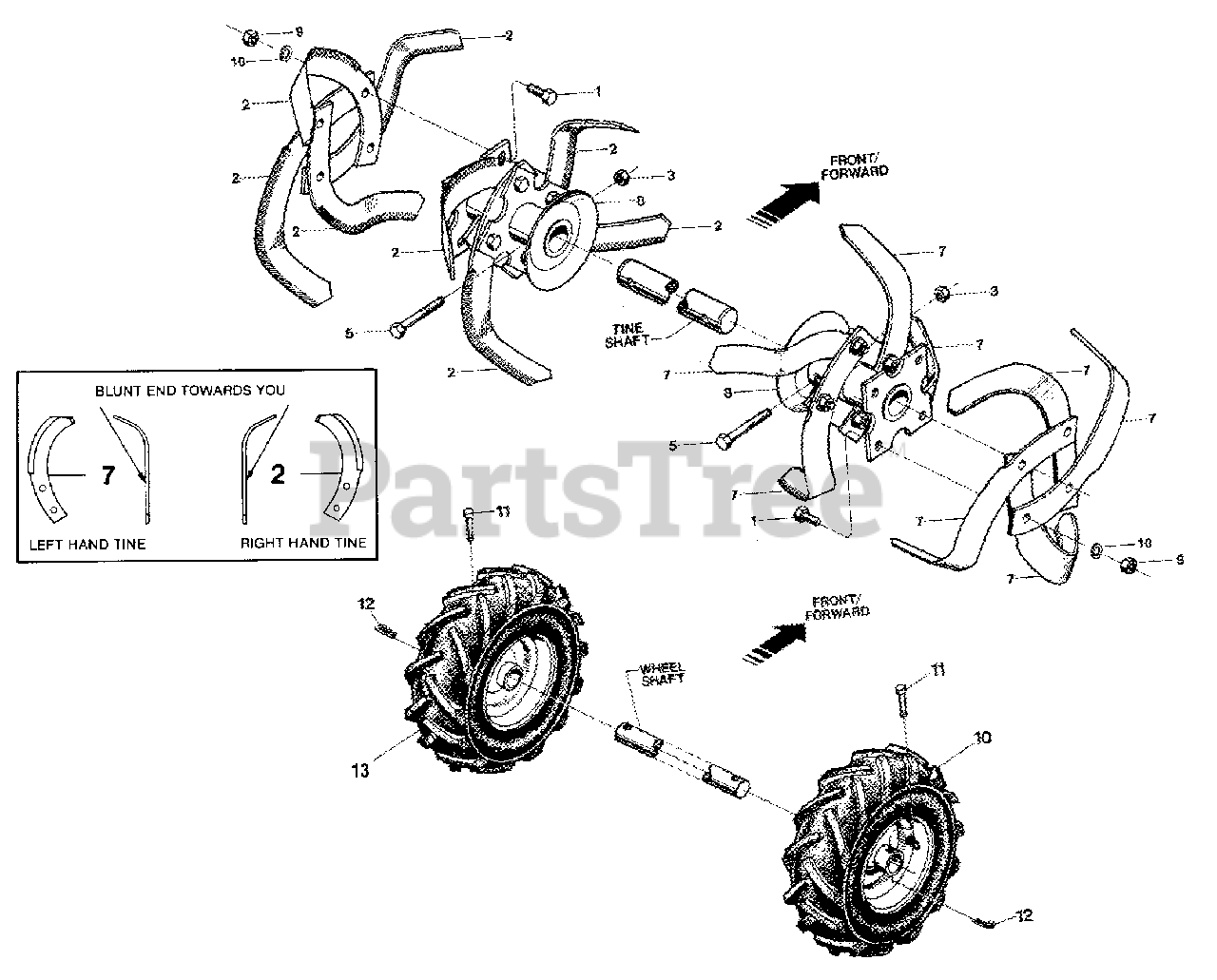

21A-665B063 - Troy-Bilt Rear-Tine Tiller (2002) Tines & Wheels Parts Diagram

Rear-Tine Tiller

Tines & Wheels Parts Diagram

  • Title

1

Troy-Bilt 710-3105

Hex Hd. Screw, 3/8-16 x 1-1/4

$6.49

$

In Stock, only 2 left!

0

2

Troy-Bilt GW-1270-2A

Bolo Tine - single, right hand tine used on left side of tiller
(Superseded to 742-04118-0637)

Note: (Incl. two of each Ref. No.'s 1 and 3)

$

$

Not available

3

Troy-Bilt 712-0375

Hex Locknut, 3/8-16

$4.49

$

In Stock, Qty 6

0

5

Troy-Bilt 710-3096

Hex Hd. Screw, 3/8-16 x 2, GRADE 8

$7.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt GW-1270-1A

Bolo Tine - Single, left hand tine used on right side of tiller
(Superseded to 742-04119-0637)

Note: (Incl. two of each Ref. No.'s 1, 9 and 10)

$

$

Not available

8

Troy-Bilt 1902154010

Tine Holder-for bolo tines, left and right sides
(Superseded to 686-04067-0638)

$102.99

$

In Stock, only 1 left!

0

Troy-Bilt 1901118

Replacement set of 16 Bolo Tines
(Superseded to 1901118A)

Note: Includes eight each of right hand and left hand tines, and sixteen each of Ref. No.'s 1 and 3

$

$

Not available

9

Troy-Bilt 712-3017

Hex Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 736-0169

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt GW-9380

Clevis Pin-.312 x 1-3/4 long
(Superseded to 711-04126)

$4.49

$

In Stock, Qty 13

0

12

Troy-Bilt GW-9338

Hitch Pin
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0

13

MTD 1917487

Wheel & Tire Assembly
(Superseded to 634-04202-0911)

$

$

Not available
