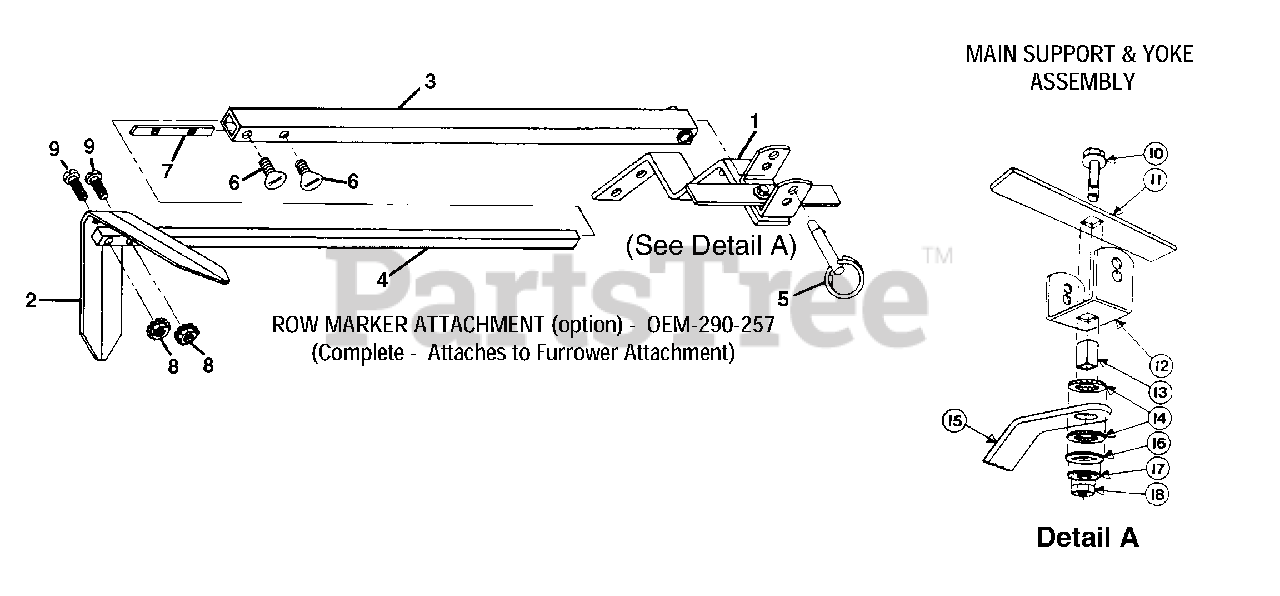

21A-665B063 - Troy-Bilt Rear-Tine Tiller (2002) Row Marker Parts Diagram

Rear-Tine Tiller

Row Marker Parts Diagram

  • Title

1

Troy-Bilt 1904522

Main Support & Yoke Assy-complete.

Note: Incl. Ref. No.'s 10 - 18

$

$

Currently unavailable

2

MTD GW-1594

Marker Blade-blade only

$

$

Not available

3

MTD 1904524001

Marker Arm - main arm

$

$

Not available

4

MTD 1904523001

Marker Arm - extension arm with stop pin

$

$

Not available

5

Troy-Bilt GW-9347

Hitch Pin

Note: (Incl. in Hardware Pkg #GW-1837)

$14.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt GW-9786

Thumbscrew-1/4-20 x 1/2

Note: Not avail. sep. (see hardware pkg. #GW-1837)

$

$

Not available

7

MTD GW-1596

Nut Bar

Note: (Incl. in hardware pkg #GW-1837)

$

$

Not available

8

MTD GW-9828

Nut-hex, 10-24 w/attached start washers

Note: Not avail. sep. (see hardware pkg. #GW-1837)

$

$

Not available

9

Troy-Bilt 1100135

Screw-round hd., 10-24 x 1

Note: Not avail. sep. (see hardware pkg. #GW-1837)

$

$

Not available

MTD GW-1837

Hardware Package

Note: Includes: one #GW-9347 hitch pin (Ref. 5), two #GW-9786 thumbscrews (Ref. 6), one #GW-1596 nut bar (Ref. 7), two #GW-9828 hex nuts (Ref. 8), two 1100135 screws (Ref. 9)

$

$

Not available

10

Troy-Bilt 1186349

Screw-hex flanged locking, 3/8-16 x 1-1/2

$3.99

$

Usually ships in 3-6 days

0

11

MTD GW-1593

Stop Bar

$

$

Not available

12

MTD GW-1592

Yoke

$

$

Not available

13

MTD GW-1591

Tube Key-square

$

$

Not available

14

Troy-Bilt GW-1590

Washer-friction

$7.99

$

Usually ships in 3-6 days

0

15

MTD GW-1588

Main Support

$

$

Not available

16

MTD GW-1589

Washer-square hole

$

$

Not available

17

MTD GW-9925

Washer-disc spring

$

$

Not available

18

Troy-Bilt 912-3017

Nut-hex 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 1904522001

Row Marker Main Support & Yoke Assembly

$

$

Currently unavailable
