21A-665B063 - Troy-Bilt Rear-Tine Tiller (2002) Hiller / Furrower Parts Diagram

Rear-Tine Tiller

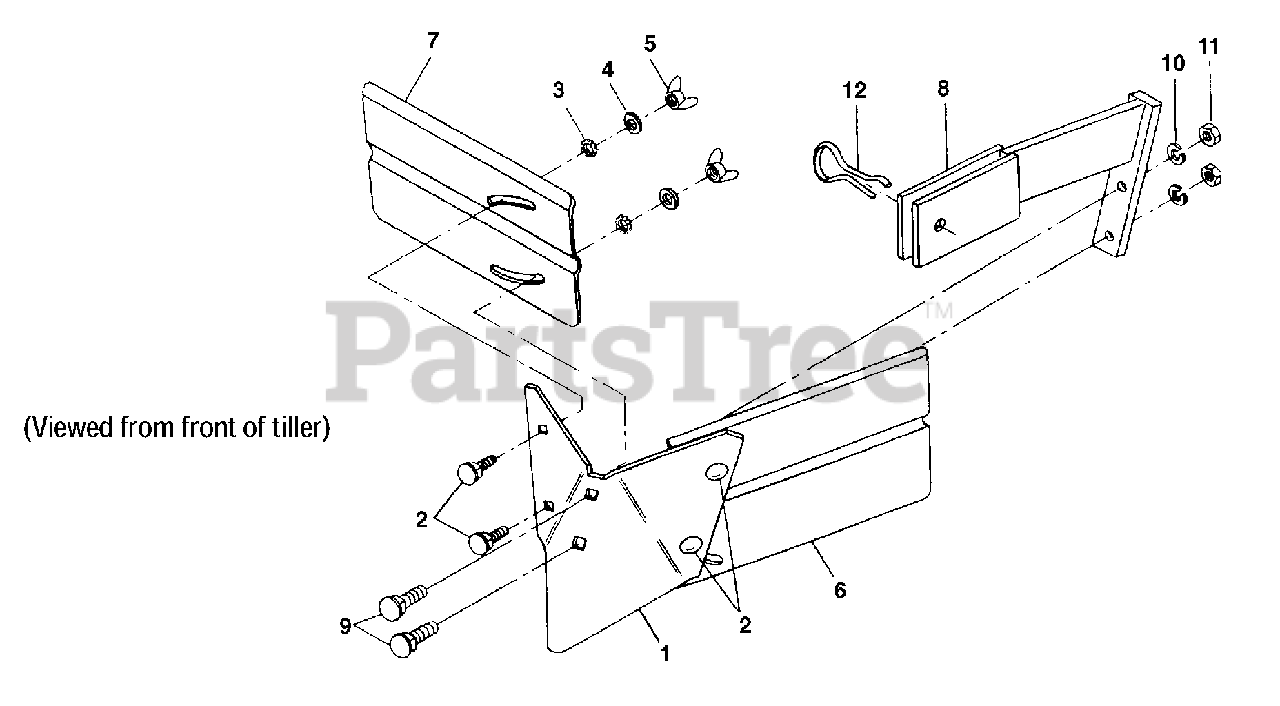

Hiller / Furrower Parts Diagram

  • Title

1

Troy-Bilt 1900771

Furrower-blade only

$

$

Currently unavailable

2

Troy-Bilt 1186098

Carriage Screw-5/16-18 x 3/4

$

$

Not available

3

Troy-Bilt 1177548

Star Washer-external tooth, 5/16
(Superseded to 736-0607)

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 736-0567

Plain Washer-5/16 S.A.E

$3.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt GW-9824

Wing Nut-5/16-18

$5.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1900773001

Hiller Wing-left

$45.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt GW-2736-02

Hiller Wing-right
(Superseded to 1900778001)

$80.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt GW-2636

Bracket-blade mounting

$188.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt GW-9725

Carriage Screw-blade mounting, 3/8-16 x 1-1/2
(Superseded to 710-0431)

$4.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 1100243

Lockwasher-3/8, plated
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 1186231

Nut-hex, 3/8-16, plated
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt GW-9318

Pin-clinch

$

$

Not available
