21A-664D766 - Troy-Bilt Pony Rear-Tine Tiller (2004) Transmission Housing, Covers, Seals, Gaskets, Plugs Parts Diagram

Pony Rear-Tine Tiller

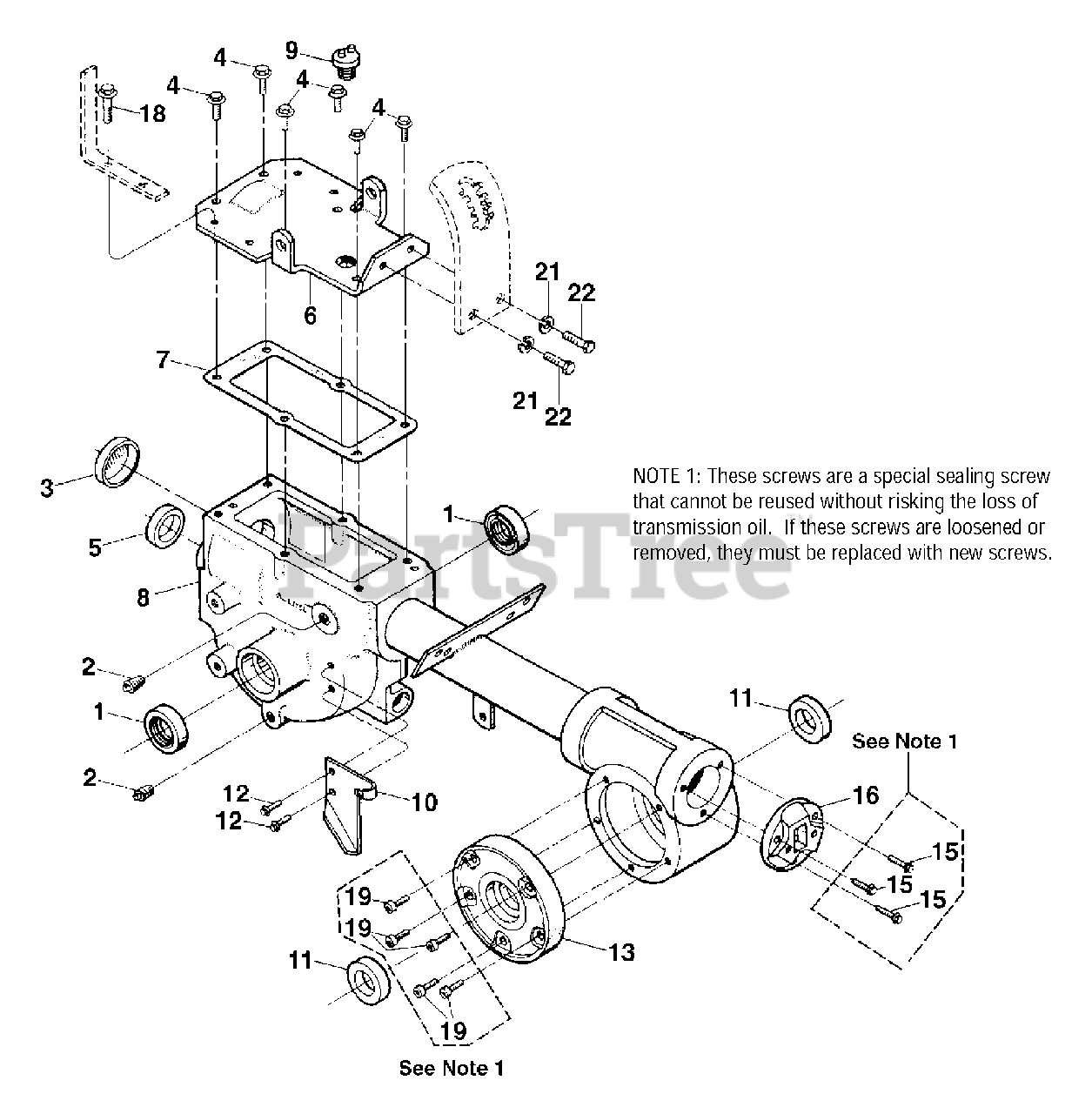

Transmission Housing, Covers, Seals, Gaskets, Plugs Parts Diagram

  • Title
1

Troy-Bilt 721-04031

Oil Seal (Double Lip), Wheel Shaft
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 1105620

Pipe Plug, 1/4,

$4.49

$

In Stock, only 3 left!

0

3

Troy-Bilt 721-04001

Seal, Transmission Bore

$10.99

$

In Stock, only 3 left!

0

4

Troy-Bilt 1186329

Hex Flange Screw, 5/16-18 x 3/4
(Superseded to 710-04043)

Note: Specify GRADE 5 if ordering part locally.

$4.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 721-04044

Oil Seal, Input Pinion Shaft
(Superseded to 921-04044)

$9.49

$

In Stock, Qty 20+

0

6

Troy-Bilt GW-20910

Transmission Cover
(Superseded to 1916193001)

$53.99

$

In Stock, only 1 left!

0

7

Troy-Bilt GW-20694

Gasket, Transmission Top Cover
(Superseded to GW-20694P)

$5.49

$

In Stock, only 4 left!

0

8

Troy-Bilt 619-04010

Transmission Case Assy
(Superseded to 919-04010)

$456.99

$

Usually ships in 3-6 days

0

$5.49

$

In Stock, only 1 left!

0

10

Troy-Bilt GW-20889

Mounting Plate, Wheel Clutch Cable
(Superseded to 1917101001)

$10.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 721-04035

Oil Seal, Tiller Shaft
(Superseded to 921-04035)

$11.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-04049

Housing Cover, left side

$4.99

$

In Stock, Qty 11

0

15

Troy-Bilt 1915069

Self-Sealing Screw, 1/4-20 x 7/8

$4.49

$

In Stock, only 3 left!

0

16

Troy-Bilt GW-1115

Rear Bearing Cap
(Superseded to 718-04406)

$50.99

$

In Stock, Qty 5

0

17

Troy-Bilt GW-1124-2

Gasket, Rear Bearing Cap, .010" Thick
(Superseded to GW-1124-2099)

Note: A/R - As Required

$4.99

$

In Stock, Qty 18

0

18

Troy-Bilt GW-90063

Hex Flange Screw, 5/16-18 x 1
(Superseded to 710-0602)

Note: Specify GRADE 5 if ordering part locally.

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 1915068

Self-Sealing Screw, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 736-0169

Lockwasher, 3/8

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 710-0216

Hex Hd. Screw, 3/8-16 x 3/4

Note: Specify GRADE 5 if ordering part locally.

$4.49

$

In Stock, Qty 14

0

$

$
