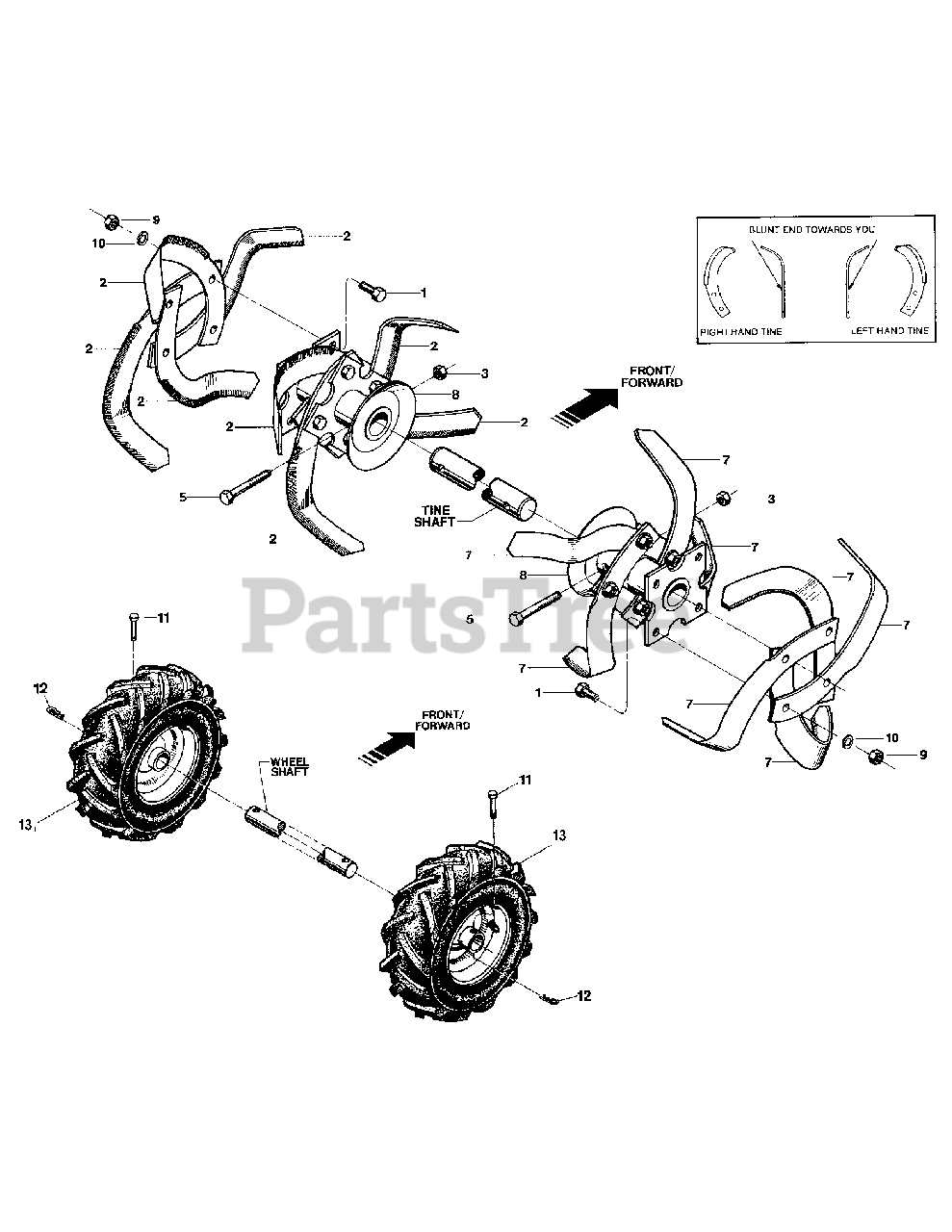

21A-664D063 - Troy-Bilt Rear-Tine Tiller (2003) Bolo Tines, Wheels Parts Diagram

Rear-Tine Tiller

Bolo Tines, Wheels Parts Diagram

  • Title

1

Troy-Bilt 710-3105

Hex Hd. Screw, 3/8-16 x 1-1/4

$6.49

$

In Stock, only 2 left!

0

2

Troy-Bilt 742-04119-0637

Bolo Tine-single. Left
(Superseded to 742-04223-0637)

$27.99

$

In Stock, Qty 12

0

3

Troy-Bilt 712-0375

Hex Locknut, 3/8-16

$4.49

$

In Stock, Qty 6

0

5

Troy-Bilt 710-3096

Hex Hd. Screw, 3/8-16 x 2, Grade 8

$7.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 742-04118-0637

Bolo Tine-single. Right
(Superseded to 742-04224-0637)

$27.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 1902154010

Tine Holder. For left and right sides
(Superseded to 686-04067-0638)

$102.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 712-3017

Hex Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 736-0169

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt GW-9380

Clevis Pin, .312 x 1-3/4
(Superseded to 711-04126)

$4.49

$

In Stock, Qty 13

0

12

Troy-Bilt GW-9338

Hitch Pin
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0

13

MTD 1917487

Wheel and Tire Assembly
(Superseded to 634-04202-0911)

$

$

Not available

Troy-Bilt 1901118

Bolo Tine Replacement Set
(Superseded to 1901118A)

Note: (Incl. eight ea. right hand and left hand tines, and sixteen ea. Refs. 1 and 3)

$

$

Not available

Troy-Bilt GW-2475-1

Custom Tilling Bolo Tine, Left hand tine
(Superseded to GW-2475-1001)

$54.99

$

In Stock, only 2 left!

0

Troy-Bilt GW-2475-2

Custom Tilling Bolo Tine, Right hand tine
(Superseded to GW-2475-2001)

$58.99

$

In Stock, only 1 left!

0

Troy-Bilt GW-10802

Custom Tilling Bolo Tine Replacement Set

Note: (Incl. eight ea. right hand and left hand custom tines, and sixteen each of Refs. 1 and 3)

$

$

Not available
