21A-664D063 - Troy-Bilt Rear-Tine Tiller (2002) Row Marker Attachment & Bumper Attachment Parts Diagram

Rear-Tine Tiller

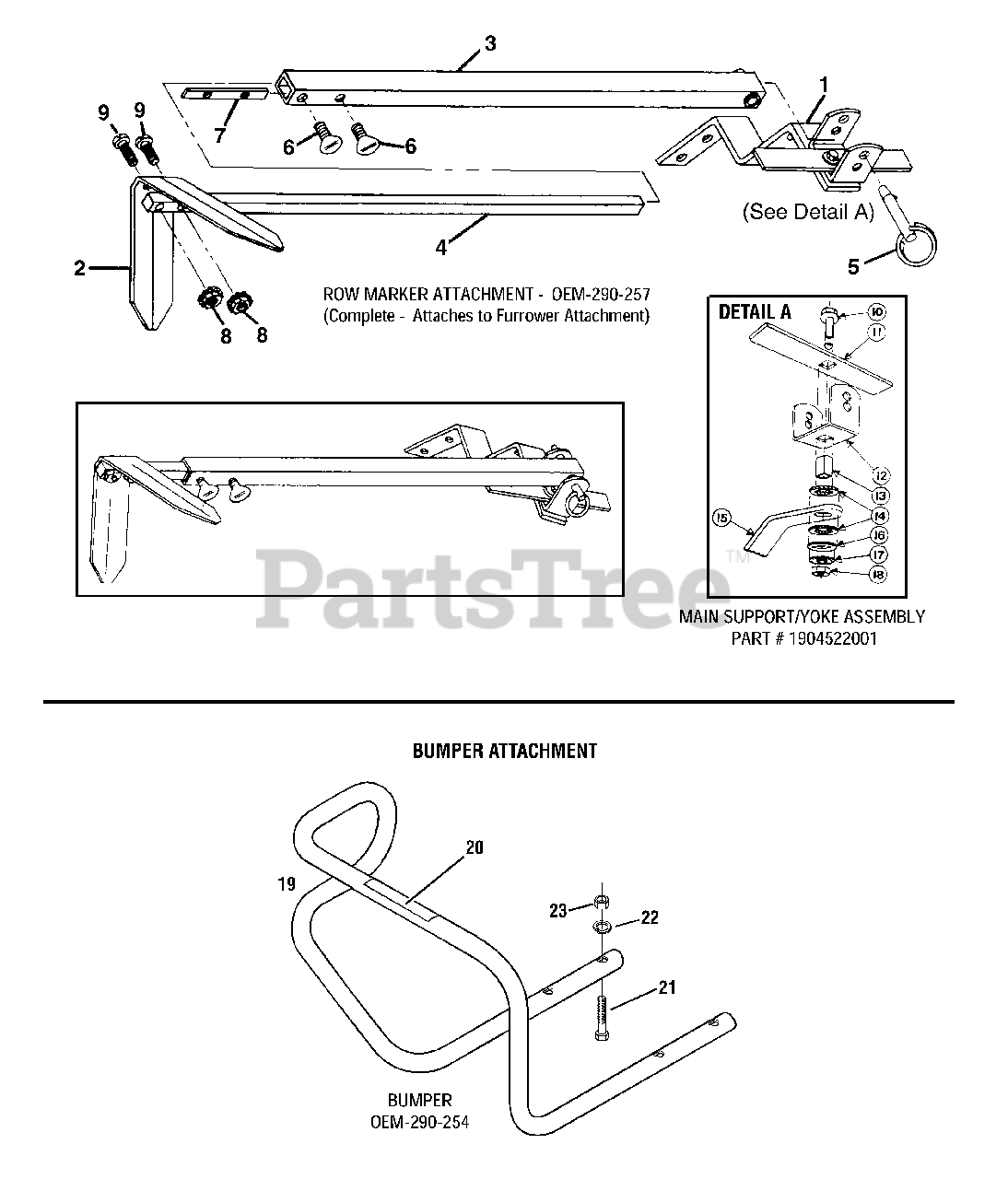

Row Marker Attachment & Bumper Attachment Parts Diagram

  • Title

1

Troy-Bilt 1904522001

Main Support & Yoke Assy-complete

Note: (Incl. Ref. No.'s 10,11,12,13,14,15,16,17 & 18); Row Marker Attachment (option) - OEM-290-254

$

$

Currently unavailable

2

MTD GW-1594

Marker Blade-blade only

Note: Row Marker Attachment (option) - OEM-290-254

$

$

Not available

3

MTD 1904524001

Marker Arm-main arm

Note: Row Marker Attachment (option) - OEM-290-254

$

$

Not available

4

MTD 1904523001

Marker Arm-extension arm with stop pin

Note: Row Marker Attachment (option) - OEM-290-254

$

$

Not available

5

Troy-Bilt GW-9347

Hitch Pin

Note: (Incl. in Hardware Pkg GW-1837); Row Marker Attachment (option) - OEM-290-254

$14.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt GW-9786

Thumbscrew-1/4-20 x 1/2

Note: Not avail. sep. (see hardware pkg. GW-1837); Row Marker Attachment (option) - OEM-290-254

$

$

Not available

7

MTD GW-1596

Nut Bar

Note: (Incl. in hardware pkg GW-1837); Row Marker Attachment (option) - OEM-290-254

$

$

Not available

8

MTD GW-9828

Nut-hex, 10-24 w/attached start washers

Note: Not avail. sep. (see hardware pkg #1837); Row Marker Attachment (option) - OEM-290-254

$

$

Not available

9

Troy-Bilt 1100135

Screw-round hd.,10-24 x 1

Note: Not avail. sep. (see hardware pkg GW-1837); Row Marker Attachment (option) - OEM-290-254

$

$

Not available

MTD GW-1837

Hardware Package

Note: Includes: one GW-9347 hitch pin (Ref. 5), two GW-9786 thumbscrews (Ref. 6), one GW-1596 nut bar (Ref. 7), two GW-9828 hex nuts (Ref. 8), two 1100135 screws (Ref. 9); Row Marker Attachment (option) - OEM-290-254

$

$

Not available

10

Troy-Bilt 1186349

Screw-hex flanged locking, 3/8-16 x 1-1/2

Note: Row Marker Main Support & Yoke Assembly - P/N 1904522001

$3.99

$

Usually ships in 3-6 days

0

11

MTD GW-1593

Stop Bar

Note: Row Marker Main Support & Yoke Assembly - P/N 1904522001

$

$

Not available

12

MTD GW-1592

Yoke

Note: Row Marker Main Support & Yoke Assembly - P/N 1904522001

$

$

Not available

13

MTD GW-1591

Tube Key-square

Note: Row Marker Main Support & Yoke Assembly - P/N 1904522001

$

$

Not available

14

Troy-Bilt GW-1590

Washer-friction

Note: Row Marker Main Support & Yoke Assembly - P/N 1904522001

$7.99

$

Usually ships in 3-6 days

0

15

MTD GW-1588

Main Support

Note: Row Marker Main Support & Yoke Assembly - P/N 1904522001

$

$

Not available

16

MTD GW-1589

Washer-square hole

Note: Row Marker Main Support & Yoke Assembly - P/N 1904522001

$

$

Not available

17

MTD GW-9925

Washer-disc spring

Note: Row Marker Main Support & Yoke Assembly - P/N 1904522001

$

$

Not available

18

Troy-Bilt 912-3017

Nut-hex 3/8-16.
(Superseded to 712-3017)

Note: Row Marker Main Support & Yoke Assembly - P/N 1904522001

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 1918749001

Bumper
(Superseded to 749-04193-0637)

Note: (Includes Ref. 20); Bumper - OEM-290-254

$54.99

$

In Stock, Qty 6

0

20

Troy-Bilt 777S30653

Decal - Caution

Note: Bumper - OEM-290-254

$

$

Not available

21

Troy-Bilt 710-3073

Screw-hex hd., 5/16-18 x 2-1/4
(Superseded to 710-0395)

Note: Not avail. separately (order #1918781 hardware kit); Bumper - OEM-290-254

$4.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 736-0119

Lockwasher-5/16
(Superseded to 936-0119)

Note: Not avail. separately (order #1918781 hardware kit); Bumper - OEM-290-254

$4.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 712-0267

Nut-hex, 5/16-18
(Superseded to 912-3010)

Note: Not avail. separately (order #1918781 hardware kit); Bumper - OEM-290-254

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 1918781

Hardware Kit

Note: Incl. four each of Refs. 21, 22 and 23; Bumper - OEM-290-254

$

$

Currently unavailable
